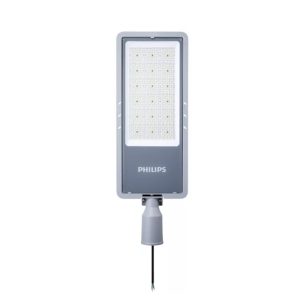

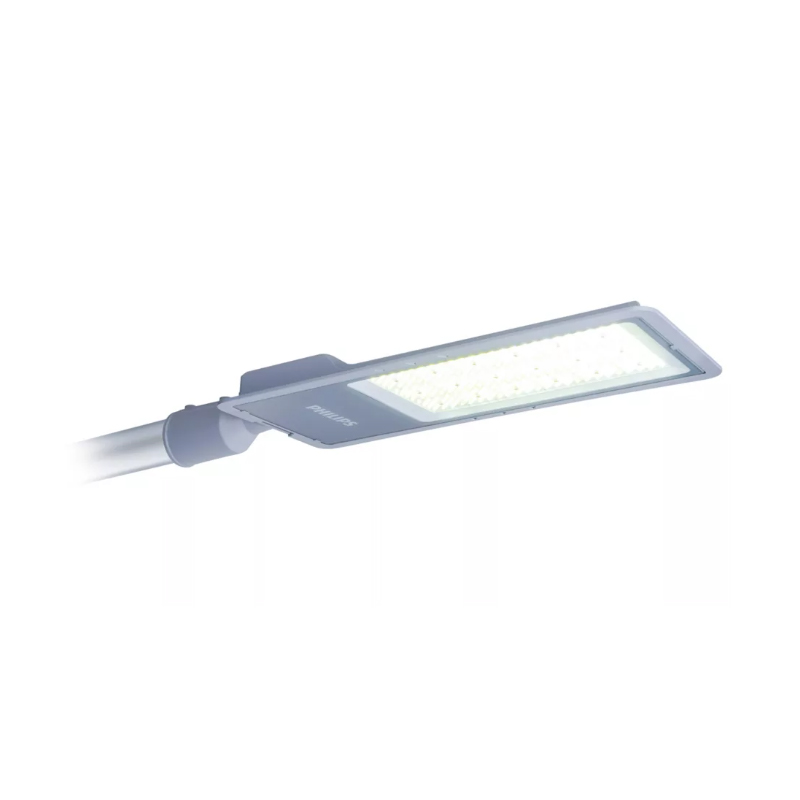

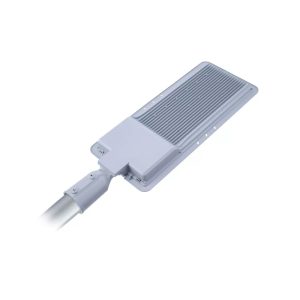

Philips Road Lighting StreetStar G2 BRP24

Road Lighting BRP24

StreetStar G2 BRP24 is Signify’s LED street light, delivering outstanding illumination for streets, roads and highways. Boasting modern aesthetics and precise optical design, it offers 30–200W power options, 140lm/W efficacy and 50,000-hour lifespan. Built-in surge protection, IP66 & IK08 ratings enable reliable operation in harsh weather, requiring minimal maintenance for urban & residential lighting projects.

⚡ 30W–200W Power Range
⚡ 140lm/W High Efficacy
⚡ Built-in 10kV Surge Protection

Request a Quote ⬇ Download Datasheet

Specifications

Application Scenarios: Outdoor
LED Light Types: LED Street Light

CERTIFIED TO

CB EMC CQC EEL RoHS REACH

KEY FEATURES

Wide power selection from 30W to 200W meets diverse lighting demands for small lanes and municipal roads.

140lm/W high luminous efficiency with 50,000-hour lifespan cuts energy consumption and replacement frequency.

Independent driver plus integrated 10kV surge protector safeguards the luminaire against lightning and voltage spikes.

Adjustable mounting angle allows flexible installation, achieving accurate light distribution for target road surfaces.

IP66 dust/waterproof and IK08 impact resistance, stable performance under extreme outdoor temperature conditions.

APPLICATIONS

Pedestrian walkways and residential community roads

Factory perimeters, park paths and small local roads

Safety passages and general open outdoor areas

TECHNICAL SPECIFICATIONS

Order Code,Full Product Name,Luminous Flux,CCT:

911401870087,BRP244 LED135/WW 100W DM0 PSU GC,"13,500 lm",3000 K
911401870187,BRP244 LED162/WW 120W DM0 PSU GC,"16,200 lm",3000 K
911401870987,BRP244 LED140/NW 100W DM0 PSU GC,"14,000 lm",4000 K
911401871087,BRP244 LED168/NW 120W DM0 PSU GC,"16,800 lm",4000 K
911401817188,BRP243 LED112/NW 80W DM0 PSU ANZ,"11,200 lm",4000 K
911401868087,BRP243 LED94/WW 70W DM0 PSU,"9,400 lm",3000 K
911401868187,BRP243 LED108/WW 80W DM0 PSU,"10,800 lm",3000 K
911401868987,BRP243 LED98/NW 70W DM0 PSU,"9,800 lm",4000 K
911401869087,BRP243 LED112/NW 80W DM0 PSU,"11,200 lm",4000 K
911401867987,BRP242 LED67/WW 50W DM0 PSU,"6,700 lm",3000 K
911401868887,BRP242 LED70/NW 50W DM0 PSU,"7,000 lm",4000 K
911401817088,BRP241 LED42/NW 30W DM0 PSU ANZ,"4,200 lm",4000 K
911401867887,BRP241 LED40/WW 30W DM0 PSU,"4,000 lm",3000 K
911401868787,BRP241 LED42/NW 30W DM0 PSU,"4,200 lm",4000 K
911401869787,BRP242 LED67/WW 50W DM0 PSU GC,"6,700 lm",3000 K
911401870687,BRP242 LED70/NW 50W DM0 PSU GC,"7,000 lm",4000 K
911401868287,BRP244 LED135/WW 100W DM0 PSU,"13,500 lm",3000 K
Only partial models shown, please contact us for full options.

DOWNLOADS

Installation Manual

FAQ

What is the difference between Type 1 and Type 2 SPD?

Type 1 SPDs are designed for locations exposed to direct lightning strikes (main distribution boards), while Type 2 SPDs protect against residual overvoltages and switching surges in sub-distribution boards.

How do I choose the right SPD for my system?

Consider your system voltage, exposure level, and installation location. Our engineering team can help you select the correct type, discharge capacity and protection level for your application.

How often should SPD be replaced?

SPDs should be inspected regularly. The visual status indicator shows when a module needs replacement. With replaceable plug-in modules, maintenance is quick and cost-effective.
