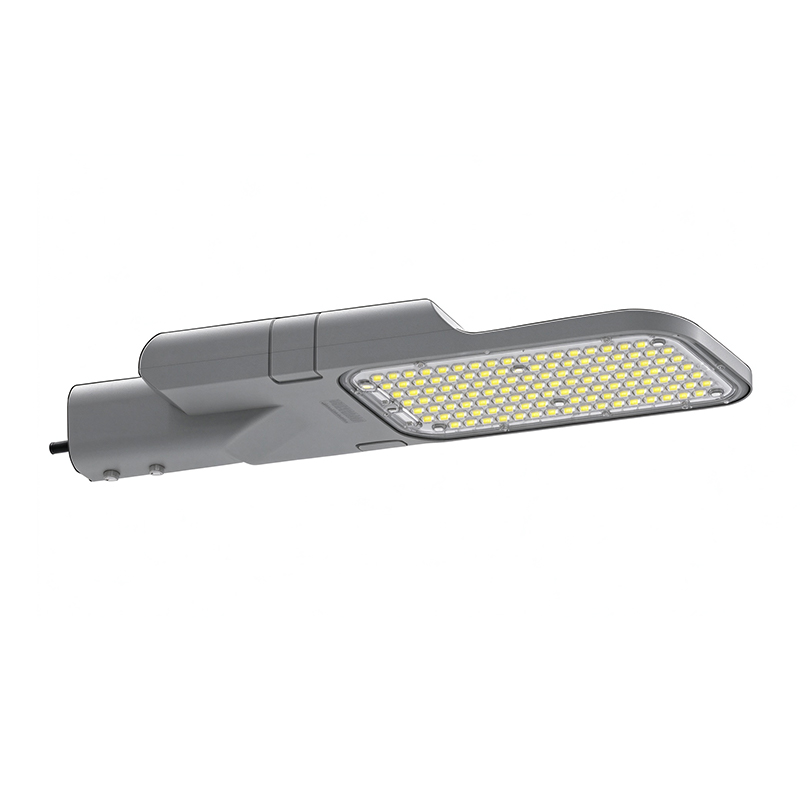

PHILIPS LED Street Light RoadJedex Ultra BRP596/597
Philips RoadJedex Ultra BRP596/597
RoadJedex Ultra BRP596/597 LED street light delivers ultra-high efficacy of 190β210lm/W, equipped with DW2 glue-free lens and excellent cut-off performance. Its enlarged housing improves heat dissipation by up to 30%. IP66 & IK10 rated, it supports Interact City Flex with GenAI compatibility, tool-free maintenance and low-blue-light options, ideal for municipal roads, residential zones and multi-scene outdoor lighting projects.
- β‘ Ultra high efficacy 190β210lm/W
- β‘ IP66 & IK10 robust protection
- β‘ Interact City Flex smart ready
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- LED Street Light
KEY FEATURES
Industry-leading 190β210lm/W efficacy, adopting UL F1 grade glue-free DW2 lens, precise light distribution, SDCM<5, high color accuracy and low green light output.
New enlarged housing design with 30% larger volume than previous generation, offering superior thermal performance to extend fixture service life.
Modular platform architecture supports tool-free replacement of driver, SPD and light source modules, greatly reducing on-site maintenance time and cost.
Fully compatible with Interact City Flex & GenAI system, enabling intelligent lighting strategy, data insight analysis and efficient remote operation & maintenance.
Wide power range 30β150W, IP66 dust/waterproof, IK10 impact resistance, wide operating temperature -40β~+50β for harsh outdoor environments.
APPLICATIONS
Pedestrian paths, residential districts and suburban roads
Factory perimeter, parking lots and sports field lighting
Garden roads, safety passages and general outdoor sites
TECHNICAL SPECIFICATIONS
Order Code,Full Product Name,Luminous Flux,Color rendering index (CRI):
- BRP596 LED54/WW 30W DW2 WLP GC,911401904310
- BRP596 LED57/NW 30W DW2 WLP GC,911401904323
- BRP596 LED72/WW 40W DW2 WLP GC,911401904311
- BRP596 LED76/NW 40W DW2 WLP GC,911401904324
- BRP596 LED90/WW 50W DW2 WLP GC,911401904312
- BRP596 LED95/NW 50W DW2 WLP GC,911401904325
- BRP596 LED108/WW 60W DW2 WLP GC,911401904313
- BRP596 LED114/NW 60W DW2 WLP GC,911401904326
- BRP596 LED126/WW 70W DW2 WLP GC,911401904314
- BRP596 LED133/NW 70W DW2 WLP GC,911401904327
- BRP596 LED144/WW 80W DW2 WLP GC,911401904315
- BRP596 LED152/NW 80W DW2 WLP GC,911401904328
- BRP596 LED162/WW 90W DW2 WLP GC,911401904316
- BRP596 LED171/NW 90W DW2 WLP GC,911401904329
- BRP597 LED180/WW 100W DW2 WLP GC,911401904317
- BRP597 LED190/NW 100W DW2 WLP GC,911401904330
- BRP597 LED198/WW 110W DW2 WLP GC,911401904318
- BRP597 LED209/NW 110W DW2 WLP GC,911401904331
- BRP597 LED216/WW 120W DW2 WLP GC,911401904319
- BRP597 LED228/NW 120W DW2 WLP GC,911401904332
- BRP597 LED234/WW 130W DW2 WLP GC,911401904320
- BRP597 LED247/NW 130W DW2 WLP GC,911401904333
- BRP597 LED252/WW 140W DW2 WLP GC,911401904321
- BRP597 LED266/NW 140W DW2 WLP GC,911401904334
- BRP597 LED270/WW 150W DW2 WLP GC,911401904322
- BRP597 LED285/NW 150W DW2 WLP GC,911401904335
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the luminous efficacy of RoadJedex Ultra BRP596/597?
A1: It reaches ultra-high efficacy from 190lm/W up to 210lm/W with DW2 optical lens.
Q2: What are the IP and IK protection ratings for this street light?
A2: It has IP66 dust & water resistance and IK10 high mechanical impact protection.
Q3: What smart system can this LED street light work with?
A3: It is fully compatible with Interact City Flex and GenAI for smart city lighting management.
