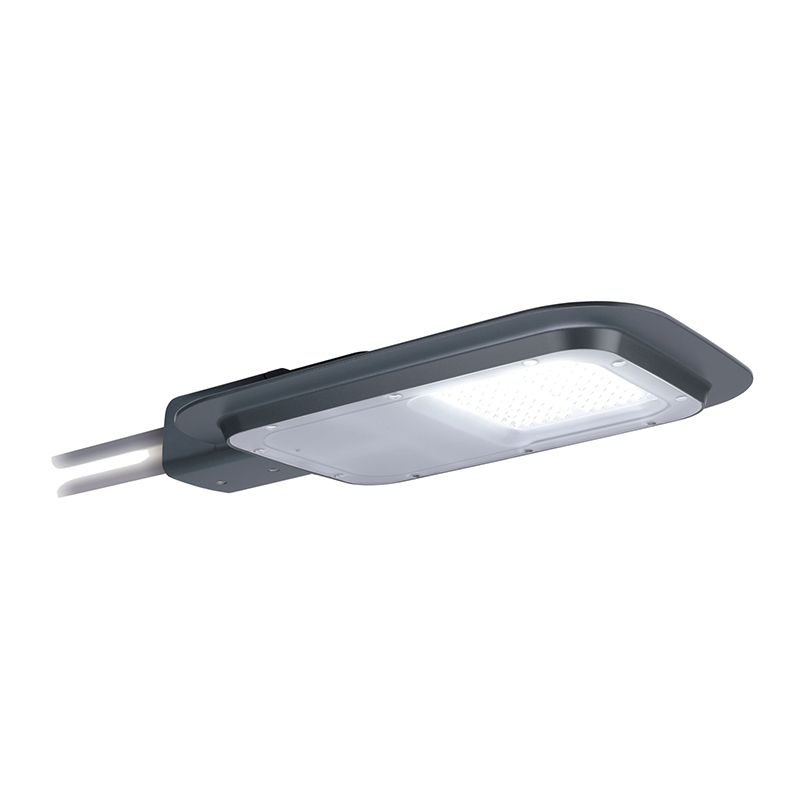

Philips SmartBright Road Sleek, reliable and cost-efficient LED lighting BRP13X
Road Lighting BRP13x
BRP13X (BRP130/BRP131/BRP132) LED street light adopts mature DOB integrated PCB, LED and power supply design. It delivers stable performance and high cost-effectiveness with 130lm/W system efficacy, 30,000h L70B50 lifespan, and replaceable 10kV surge protection. Lightweight design (<4kg), IP66 & IK08 rating supports wide temperature range -40β~50β for various outdoor lighting projects.
- β‘ DOB Integrated Compact Design
- β‘ 130lm/W High System Efficacy
- β‘ Replaceable 10kV Surge Protector
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- LED Street Light
KEY FEATURES
Adopts DOB technology with integrated PCB, LED and power supply, simplifying structure and bringing excellent cost performance.
130lm/W high luminous efficiency and 30,000-hour L70B50 service life reduce energy consumption and replacement frequency.
Comes with replaceable 10kV surge protector, effectively protecting luminaire from lightning strikes and voltage surges.
Lightweight structure under 4kg, featuring IP66 and IK08, stable operation within -40β to 50β ambient temperature.
Universal mounting structure enables safe, quick installation and convenient maintenance for different outdoor sites.
APPLICATIONS
Pedestrian paths and residential community roadways
Factory surroundings, small lanes and garden roads
Safety passages and general outdoor open areas
TECHNICAL SPECIFICATIONS
Order Code,Full Product Name,Luminous Flux,CCT:
- 911401625112,BRP130 LED88/NW 70W 220-240V DM GM,"8,800 lm",4000 K
- 911401625512,BRP130 LED88/WW 70W 220-240V DM GM,"8,800 lm",3000 K
- 911401625812,BRP130 LED88/CW 70W 220-240V DM GM,"8,800 lm",5700 K
- 911401675608,BRP130 LED88/WW 70W 220-240V DM GM,"8,800 lm",3000 K
- 911401675708,BRP130 LED88/NW 70W 220-240V DM GM,"8,800 lm",4000 K
- 911401675808,BRP130 LED88/CW 70W 220-240V DM GM,"8,800 lm",5700 K
- 911401625012,BRP132 LED175/CW 140W 220-240V DM GM,"17,500 lm",5700 K
- 911401625212,BRP132 LED175/WW 140W 220-240V DM GM,"17,500 lm",3000 K
- 911401625712,BRP132 LED175/NW 140W 220-240V DM GM,"17,500 lm",4000 K
- 911401676208,BRP132 LED175/WW 140W 220-240V DM GM,"17,500 lm",3000 K
- 911401676308,BRP132 LED175/NW 140W 220-240V DM GM,"17,500 lm",4000 K
- 911401676408,BRP132 LED175/CW 140W 220-240V DM GM,"17,500 lm",5700 K
- 911401676507,BRP132 LED175/WW 140W 220-240V DM GM,"17,500 lm",3000 K
- 911401676607,BRP132 LED175/NW 140W 220-240V DM GM,"17,500 lm",4000 K
- 911401676707,BRP132 LED175/CW 140W 220-240V DM GM,"17,500 lm",5700 K
- 911401692407,BRP132 LED175/WW 140W 220-240V DM ANZ,"17,500 lm",3000 K
- 911401692507,BRP132 LED175/NW 140W 220-240V DM ANZ,"17,500 lm",4000 K
- 911401625312,BRP131 LED125/WW 100W 220-240V DM GM,"12,500 lm",3000 K
- 911401625412,BRP131 LED125/NW 100W 220-240V DM GM,"12,500 lm",4000 K
- 911401625612,BRP131 LED125/CW 100W 220-240V DM GM,"12,500 lm",5700 K
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What are the power models and luminous flux of BRP13X?
A1: BRP130(70W,6650-7000lm), BRP131(100W,9500-10000lm), BRP132(140W,13300-15000lm).
Q2: What is the lifespan and working temperature range?
A2: Rated lifespan 30,000h L70B50; working temperature: -40β < Ta <50β.
Q3: What protection levels does BRP13X have?
A3: IP66 dust & waterproof, IK08 impact resistance, equipped with replaceable 10kV surge protection.
