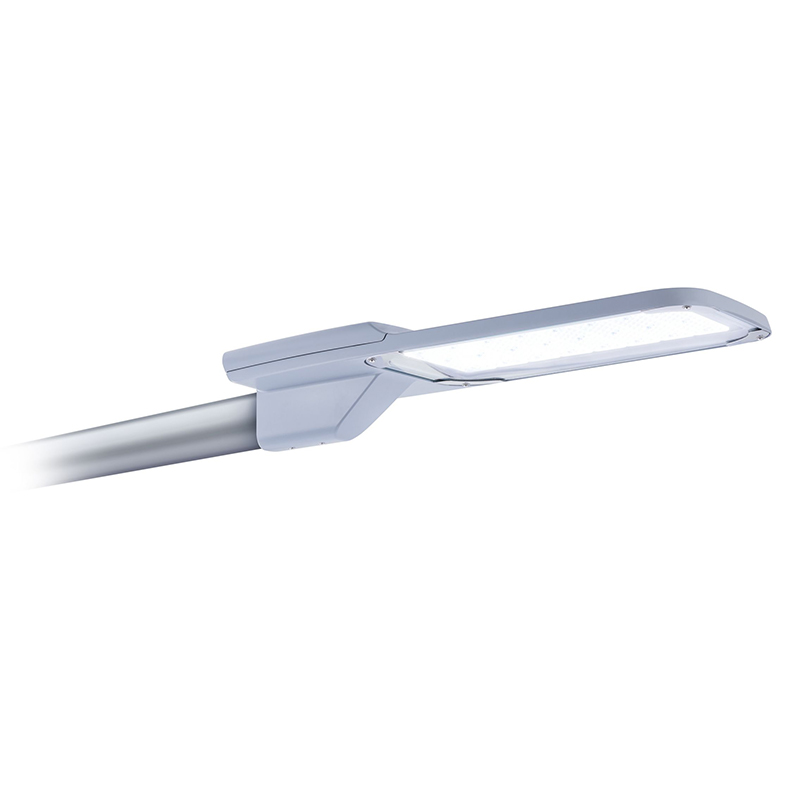

Philips Road Lighting GreenVision Xceed Gen2 BRP381/382/382L/383/384
Road Lighting BRP38X
GreenVision Xceed Gen2 BRP38x delivers a comprehensive road lighting solution with cost-effective, reliable luminaires. Compatible with Signify urban lighting management system, it can be deployed in cities, highways and rural areas. Available in 5 sizes, it achieves up to 140lm/W (optional 150-160lm/W). Interact-ready, it boosts urban safety and simplifies lighting management for diverse road projects.
- β‘ Interact IoT Ready
- β‘ Up to 160lm/W Efficacy
- β‘ Tool-free Maintenance
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- LED Street Light
KEY FEATURES
Tool-free cabinet opening allows fast SPD and driver replacement, cutting field maintenance time and labour cost greatly.
Special LED lumen package saves over 50% energy versus traditional lamps for long-term operational savings.
Premium components paired with robust construction ensure stable performance and long service life outdoors.
Interact-ready design supports IoT and lighting management software for smart city lighting control.
Five size options cover 55β390W power range, adaptable to different road lighting requirements.
APPLICATIONS
Urban roads and residential community roadways
Suburban connecting roads and park pathways
Complex interchanges and municipal road projects
TECHNICAL SPECIFICATIONS
Order Code,Full Product Name,Luminous Flux,CCT:
- 911401675506,BRP383 LED199/NW 150W 220-240V DWV P7 HP,"19,900 lm",4000 K
- 911401874198,BRP383 LED386/NW 280W 220-240V DM PSR,"38,600 lm",4000 K
- 911401874698,BRP383 LED315/NW 225W 220-240V DM PSR,"31,500 lm",4000 K
- 911401874898,BRP383 LED280/NW 200W 220-240V DM PSR,"28,000 lm",4000 K
- 911401874998,BRP383 LED268/NW 190W 220-240V DM PSR,"26,800 lm",4000 K
- 911401875098,BRP383 LED243/NW 175W 220-240V DM PSR,"24,300 lm",4000 K
- 911401875298,BRP383 LED220/NW 160W 220-240V DM PSR,"22,000 lm",4000 K
- 911401876398,BRP383 LED346/WW 260W 220-240V DM PSR,"34,600 lm",3000 K
- 911401877098,BRP383 LED232/WW 175W 220-240V DM PSR,"23,200 lm",3000 K
- 911401877298,BRP383 LED210/WW 160W 220-240V DM PSR,"21,000 lm",3000 K
- 911401669606,BRP381 LED132/NW 100W 220-240V DWP P7 HP,"13,200 lm",4000 K
- 911401675106,BRP381 LED23/NW 20W 220-240V DWP P7 HP,"2,300 lm",4000 K
- 911401675206,BRP381 LED45/NW 35W 220-240V DWP P7 HP,"4,500 lm",4000 K
- 911401675306,BRP381 LED78/NW 60W 220-240V DWP P7 HP,"7,800 lm",4000 K
- 911401675406,BRP381 LED111/NW 90W 220-240V DWP P7 HP,"11,100 lm",4000 K
- 911401875698,BRP381 LED145/NW 105W 220-240V DM PSR,"14,500 lm",4000 K
- 911401875798,BRP381 LED133/NW 95W 220-240V DM PSR,"13,300 lm",4000 K
- 911401875898,BRP381 LED122/NW 85W 220-240V DM PSR,"12,200 lm",4000 K
- 911401875998,BRP381 LED99/NW 70W 220-240V DM PSR,"9,900 lm",4000 K
- 911401876098,BRP381 LED87/NW 60W 220-240V DM PSR,"8,700 lm",4000 K
- 911401877698,BRP381 LED138/WW 105W 220-240V DM PSR,"13,800 lm",3000 K
- 911401877798,BRP381 LED127/WW 95W 220-240V DM PSR,"12,700 lm",3000 K
- 911401878098,BRP381 LED83/WW 60W 220-240V DM PSR,"8,300 lm",3000 K
- Only partial models shown, please contact us for full options.

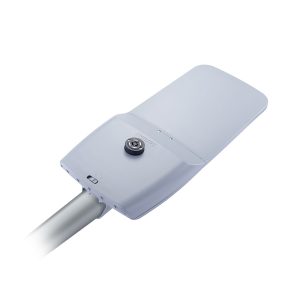

Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What is the luminous efficacy of GreenVision Xceed Gen2?
A1: Standard efficacy reaches 140lm/W, with optional 150-160lm/W versions available.
Q2: Does this street light support smart lighting control systems?
A2: Yes, it is Interact-ready and compatible with IoT & urban lighting management platforms.
Q3: What is the ingress protection rating of BRP38x series?
A3: It features IP66 dust & water protection and IK08 mechanical impact resistance.
