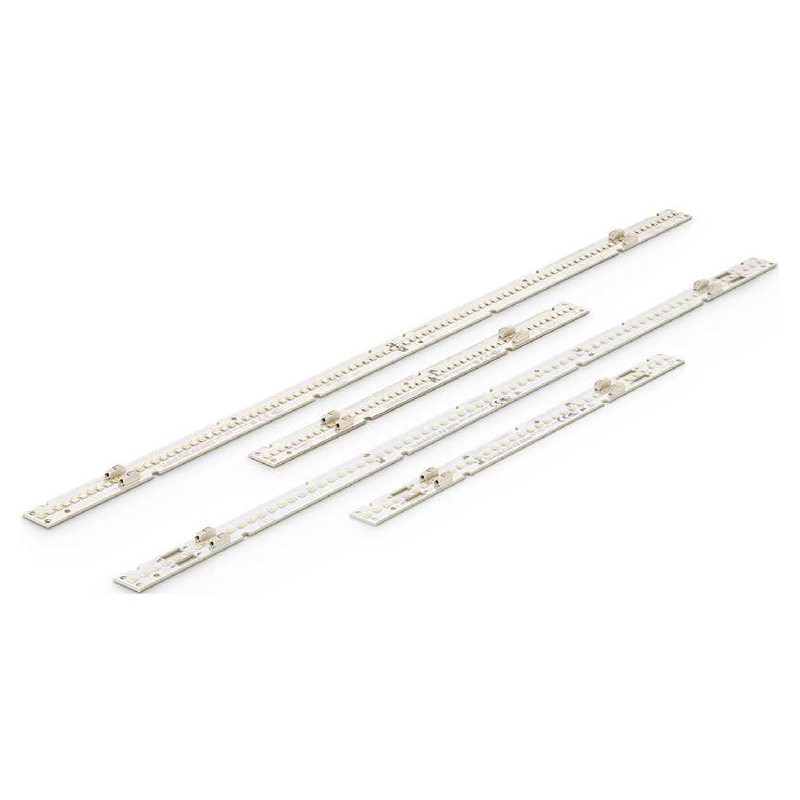

PHILIPS Linear Modules Fortimo LED strip FlexTune
Linear Modules
The Fortimo LED strip FlexTune modules in system combination with the Xitanium FlexTune driver can build high performing and unique tunable white lighting systems.The drivers and modules are designed together to be a perfect match and together provide great specifications and ease of use. The Fortimo LED strip FlexTune modules are available in two versions: The ST version has a unique 2-in-1 LED, which does the CCT mixing inside the LED. Therefore, all LEDs on the module always have the same CCT. The PR version is based on the traditional tunable white concept of two individual LEDs (2700 K and 6500 K) and combined they tune the module’s CCT. This version is equipped with our high efficiency CRI90 technology.
- ⚡ Tunable white FlexTune LED strip
- ⚡ ST & PR two distinct versions
- ⚡ Matched with Xitanium FlexTune driver
Specifications
- Model
- Fortimo LED strip FlexTune
KEY FEATURES
Fortimo LED strip FlexTune works seamlessly with Xitanium FlexTune driver to create high-performance tunable white lighting systems with optimized matching.
The ST variant adopts unique 2-in-1 LED with CCT mixing inside the LED chip, ensuring uniform CCT across every LED on the module.
The PR version uses separate 2700K and 6500K LEDs for CCT tuning and is equipped with high-efficiency CRI90 technology for premium color rendering.
APPLICATIONS
Office human-centric tunable lighting
Hospitality dynamic ambient lighting
Premium commercial architectural lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- FO strip ST FT 1ft 1100lm 827-865 FC HV5 929002800606
- FO strip ST FT 2ft 2200lm 827-865 FC HV5 929002800706
- FO strip PR FT 1ft 1100lm 927-965 FC HV5 929002800806
- FO strip PR FT 2ft 2200lm 927-965 FC HV5 929002800906

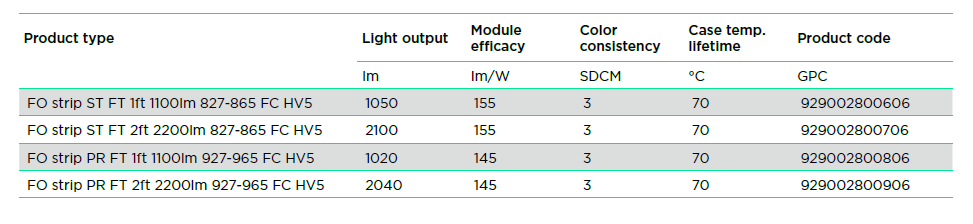

Product specifications
Click to enlarge
FAQ
Q1: What are the two versions of Fortimo LED strip FlexTune?
A1: They are ST version with 2-in-1 LED and PR version based on dual 2700K & 6500K LEDs with CRI90 high-efficiency technology.
Q2: What is the core difference between ST and PR versions?
A2: ST mixes CCT inside each 2-in-1 LED to guarantee identical CCT on all LEDs. PR mixes light from two separate LEDs for CCT adjustment.
Q3: Which driver matches Fortimo LED strip FlexTune?
A3: It is designed to pair with the Xitanium FlexTune driver, forming a perfectly matched tunable white lighting system.
