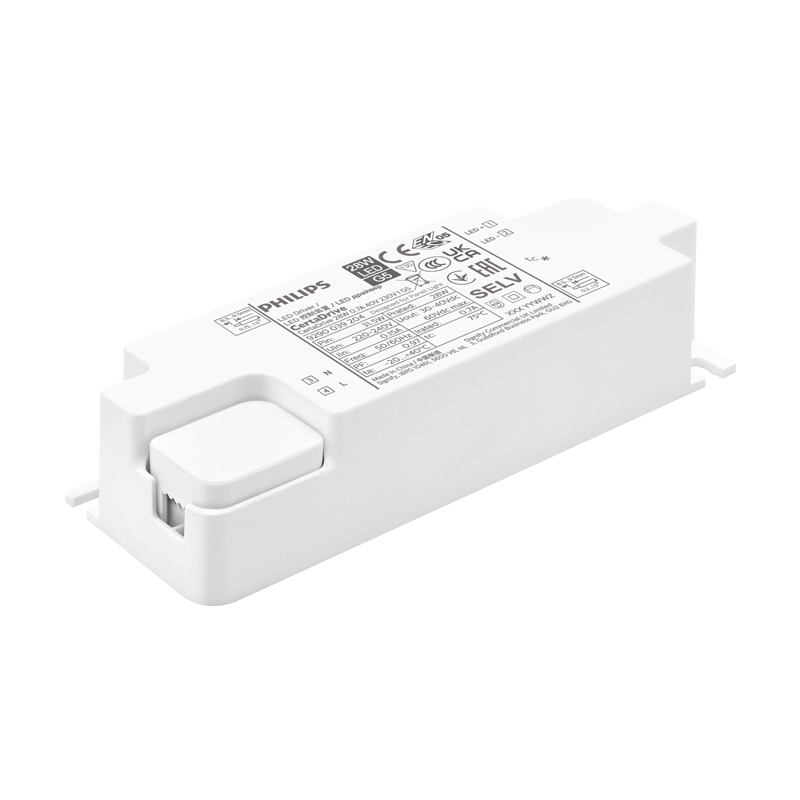

PHILIPS Linear CertaDrive isolated CertaDrive 28W 0.7A 40V 230V I G5
CertaDrive 28W 0.7A 40V 230V I G5
Single current LED drivers for essential lighting applications. CertaDrive LED panel drivers are designed to fulfill the market need for panel lighting with reliable performance. The new generation CertaDrive LED panel drivers offer basic specifications with specific current and voltage settings which are easy to use for high volume applications.
- β‘ 50,000 hours lifetime @Tc-life
- β‘ Low ripple output current (4%) Application
- β‘ Easy to design-in with single output current
Specifications
- Model
- 929003920480
- Application Scenarios
- Indoor
KEY FEATURES
50,000 hours lifetime @Tc-lifedesign-in
SELV output for simpler approval process and easy
Fast Time to Market
Low ripple output current (4%) Application
Various Vout/lout mix for high volume applications
Comfort for eyes and assurance of camera-friendly performance
Easy to design-in with single output current
Independent-version housing design for stand-alone installations
APPLICATIONS
Panel application for office and public areas
For luminaires of protection class II
TECHNICAL SPECIFICATIONS
| Title | PHILIPS Linear CertaDrive isolated CertaDrive 28W 0.7A 40V 230V I G5 |
|---|---|
| Input Voltage | 230V |
| Total Harmonic Distortion IEC (Max) | 0.2 |
| Power Consumption | 31.5 W |
| Output Current Ripple (Max) | 0.04 |
| Maximum Efficiency at Full Load | 0.89 |
| Output Current (Max) | 700 mA |
| Output Current Tolerance (Max) | 0.05 |
| Power Factor (Fraction) | 0.97 |
| Open Circuit Voltage (DC) (Max) | 60V |
| Input current (AC) | 150 mA |
| Inrush Current Peak (Max) | 27.4A |
| Inrush Current Peak (Nom) | 27.4A |
| Output Power (Max) | 28W |
| Output Power (Nom) | 28W |
|---|---|
| Inrush Current Width to 50% of Peak | 97us |
| Power Factor 100% Load (Max) | 0.97 |
| Energy Metering | No |
| Constant Current (CC) | TRUE |
| Constant Voltage (CV) | FALSE |
| Diagnostics | FALSE |
| Output Power (Min) | 21W |
| Output Current (Min) | 700 mA |
| Output Voltage (Max) | 40V |
| Output Voltage (Min) | 30V |
| Number of Products on MCB (16A Type B)(Max) | 45 |
| Protection class IEC | Safety class II |
| Adjustable Output Current | No |
FAQ
"What is a constant current led driver used for?
A constant current led driver supplies stable fixed current to LED modules. This non-dimmable constant current led driver is widely used as led panel light driver to power indoor flat panel ceiling lights, maintaining consistent brightness for LED panels. Q2"
What is the difference between dimmable and non-dimmable constant current led driver?
A dimmable driver supports brightness adjustment, while a non-dimmable constant current led driver runs at fixed output power without dimming function. This type of led panel light driver is a cost-effective choice for projects that do not require light adjustment.
Does this non-dimmable constant current led driver come with safety certifications?
Yes. This led panel light driver owns multiple approvals including CE, UKCA, CCC, ENEC. This non-dimmable constant current led driver adopts Class II SELV isolated design with short circuit, open circuit and over power protection.
