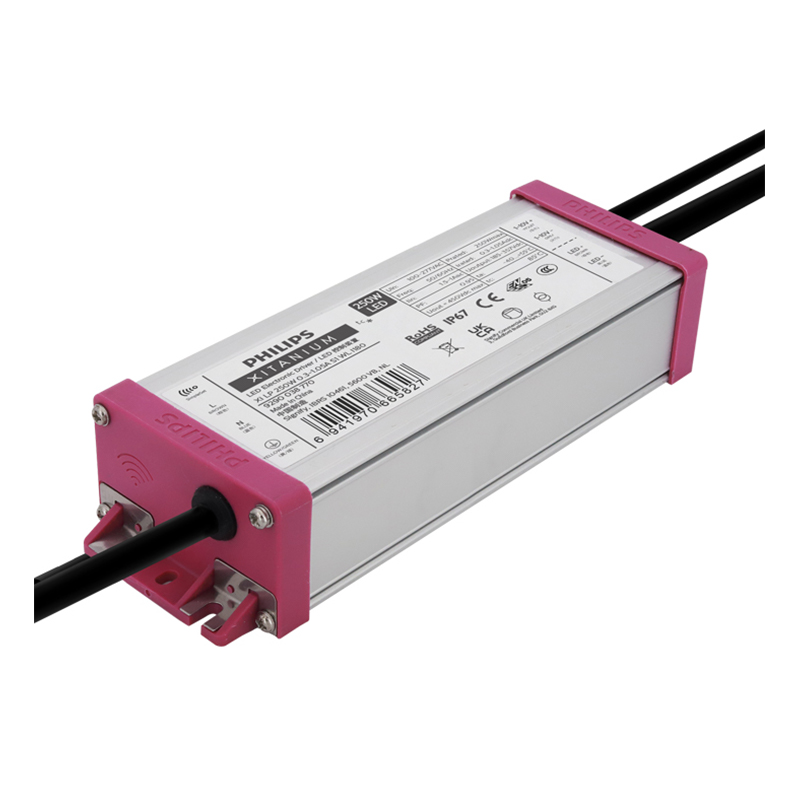

Xitanium LED Drivers -Philips XI LP 250W 0.3-1.05A S1 WL I180
Xi LP 250W 0.3-1.05A S1 WL I180
Xitanium Lite Programmable (LP) LED drivers are value engineered to deliver a carefully selected programming feature set and high-end performance, making it a preferred choice for outdoor applications. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver. The WideLine family can operate on input voltage 100-277Vac and ensure 100% performance from 202-254Vac.
- ⚡ Dimming (0-10V) and reversed dimming available
- ⚡ Long lifetime and high survival rate
- ⚡ High efficiency up to 94.5%
Specifications
- Model
- 929003877080
- Application Scenarios
- Outdoor
KEY FEATURES
A selected programmable feature set via SimpleSet®,
based on NFC technology
Adjustable Output Current (AOC)
Dimming (0-10V) and reversed dimming available
10-step DynaDimmer
Constant Light Output (CLO)
WideLine input voltage range: 100-277Vac
High surge protection: 6/10kV (DM/CM)
IP67 waterproof
50,000 hours lifetime @Tc 85°C and 100,000 hours
lifetime @Tc 75°C
High efficiency up to 94.5%
APPLICATIONS
Road and street lighting
Area and flood lighting
Tunnel lighting
TECHNICAL SPECIFICATIONS
| Model | Xitanium LED Drivers -Philips XI LP 250W 0.3-1.05A S1 WL I180 |
|---|---|
| Output current ripple (max.) | 4% |
| Output current (max.) | 1050 mA |
| Open circuit voltage (DC) (max.) | 450V |
| Output power (max.) | 250W |
| Output power (Min) | 13 W |
| Output current (min) | 300 mA |
| Output voltage (max) | 357V |
|---|---|
| Output voltage (min) | 185V |
| Protection class IEC | Safety class I |
| Central DC Operation | No |
| T-case lifetime (nom.) | 75°C |
| T-Case maximum (nom.) | 85°C |
| Control interface | 0-10V |
FAQ
Is model 929003877080a waterproof dimmable led driver for outdoor street light?
Yes. 929003877080 is a waterproof dimmable led driver specially developed for outdoor street light. With good sealing structure, it can work stably in outdoor rainy and humid environments for road lighting projects.
What dimming options are supported by this waterproof dimmable led driver 929003877080 used on outdoor street light?
This 929003877080 dimmable led driver supports common dimming protocols. As a waterproof power supply for outdoor street light, it enables flexible brightness adjustment to meet intelligent road lighting demands and save energy.
Can I install the 929003877080 dimmable led driver outdoors together with outdoor street light directly without extra waterproof housing?
The 929003877080 led driver features integrated waterproof design. As a dimmable led driver matched with outdoor street light, it can adapt to open-air installation. Please follow our installation guidelines to guarantee long-term service life.
