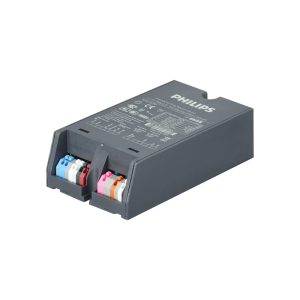

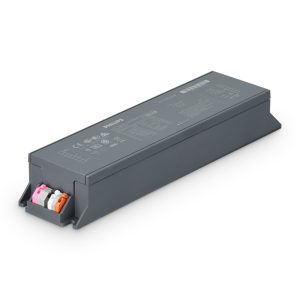

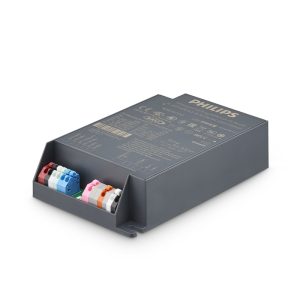

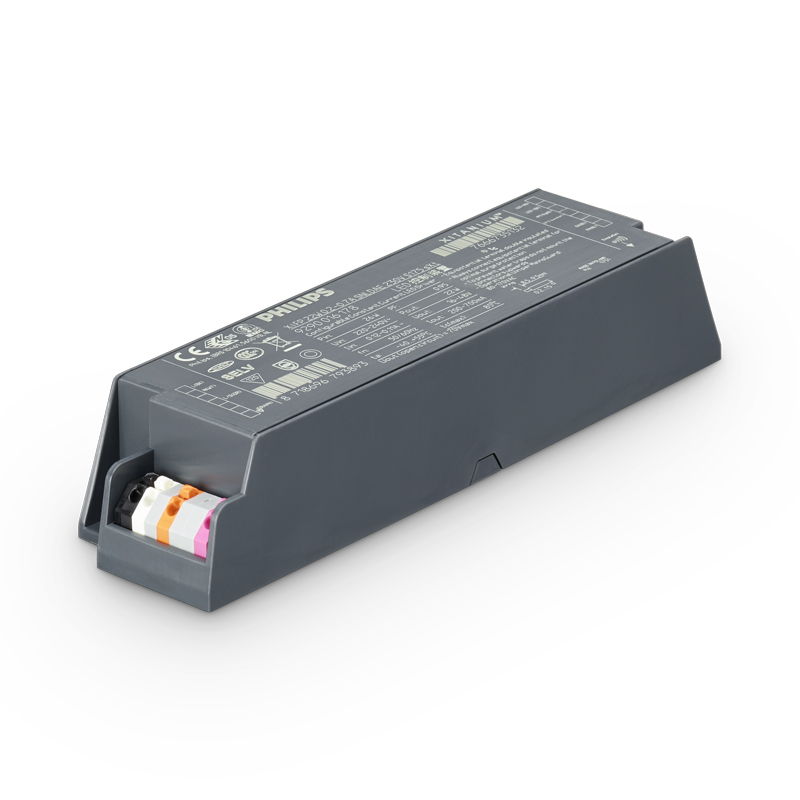

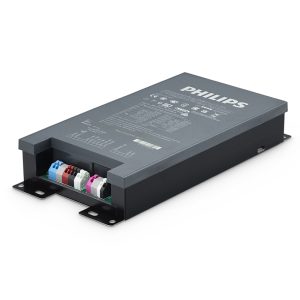

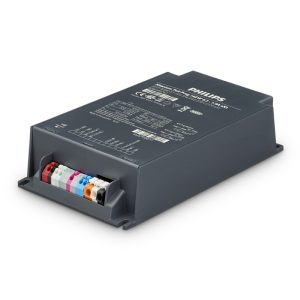

Xitanium LED Drivers - Full Programmable (FP)
Xitanium Xi FP
Our Xitanium Full Programmable (FP) drivers are designed to deliver ultimate configuration possibility, the highest performance and reliability. The portfolio offers both stand-alone and remote dimming protocols to further energy saving with the latest LED technologies. The proven Xtreme technology ensures maximum robustness and protection for a very long lifetime. These drivers are the preferred choice for demanding applications such as outdoor and industry.
- ⚡ Full‑featured programmable controls
- ⚡ DynaDimmer & DC emergency support
- ⚡ 100,000‑hour long operating lifespan
Specifications
- Model
- Xitanium LED Drivers-FP
- Application Scenarios
- Outdoor
KEY FEATURES
Operation compatible DALI parts 251, 252 and 253
Full control feature set such as Adjustment of Output Current, Constant Light
Output, 5 step DynaDimmer, Driver Temperature Limite and DC emergency.
100,000 hours lifetime @ Tc life with >90% survivors
APPLICATIONS
Road and street lighting
Area lighting
Industrial lighintg
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- xi FP 22W 0.2-0.7A SNLDAE 230V S175 sXt 929002172306
- xi FP 22W 0.3-1.0A SNLDAE 230V S175 sXt 929002172406
- xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929002128306
- xi FP 40W 0.3-1.0A SNLDAE 230V S175 sXt 929002172506
- xi FP 75W 0.2-0.7A SNLDAE 230V S240 sXt 929002128406
- xi FP 75W 0.3-1.0A SNLDAE 230V S240 sXt 929002128506
- xi FP 150W 0.2-0.7A SNLDAE 230V S240 sXt 929002128606
- xi FP 150W 0.3-1.0A SNLDAE 230V S240 sXt 929002128706
- xi FP 22W 0.2-0.7A SNLDAE 230V C123 sXt 929002165006
- xi FP 22W 0.3-1.0A SNLDAE 230V C123 sXt 929002165106
- xi FP 40W 0.2-0.7A SNLDAE 230V C123 sXt 929002165206
- xi FP 40W 0.3-1.0A SNLDAE 230V C123 sXt 929002165306
- xi FP 75W 0.2-0.7A SNLDAE 230V C133 sXt 929002872806
- xi FP 75W 0.3-1.0A SNLDAE 230V C133 sXt 929002872906
- xi FP 75W 0.5-1.5A SNLDAE 230V C133 sXt 929002873006
- xi FP 110W 0.2-0.7A SNLDAE 230V C133 sXt 929002873106
- xi FP 110W 0.3-1.0A SNLDAE 230V C133 sXt 929002873206
- xi FP 165W 0.2-0.7A SNLDAE 230V C170 sXt 929002874906
- xi FP 165W 0.3-1.0A SNLDAE 230V C170 sXt 929002875006
- xi FP 220W 0.2-1.0A SNLDAE 230V C170 sXt 929002852206
- xi FP 330W 2.0-2.0-75A SNLDAE 230V C240 sXt 929003409706

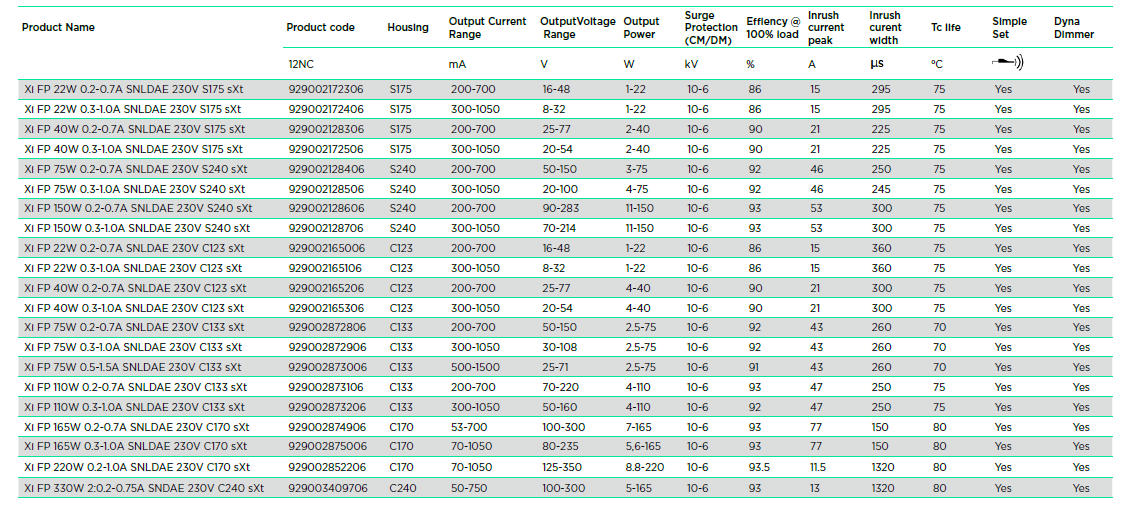

Product specifications
Click to enlarge
DOWNLOADS
FAQ
Q1: What core control features do FP drivers have?
A1: They support full output adjustment and DynaDimmer.
Q2: What are the main application scenarios?
A2: Road, street, area and industrial lighting.
Q3: What is the product lifetime rating?
A3: 100,000 hours @ Tc life with >90% survivors.
RELATED PRODUCTS
Xitanium LED Drivers - Single Current (SC)
Xitanium Xi SC
⚡|Fixed single‑current output design
View Details →

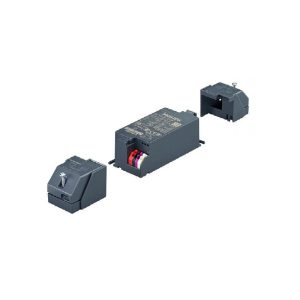

Xitanium MasterConnect
