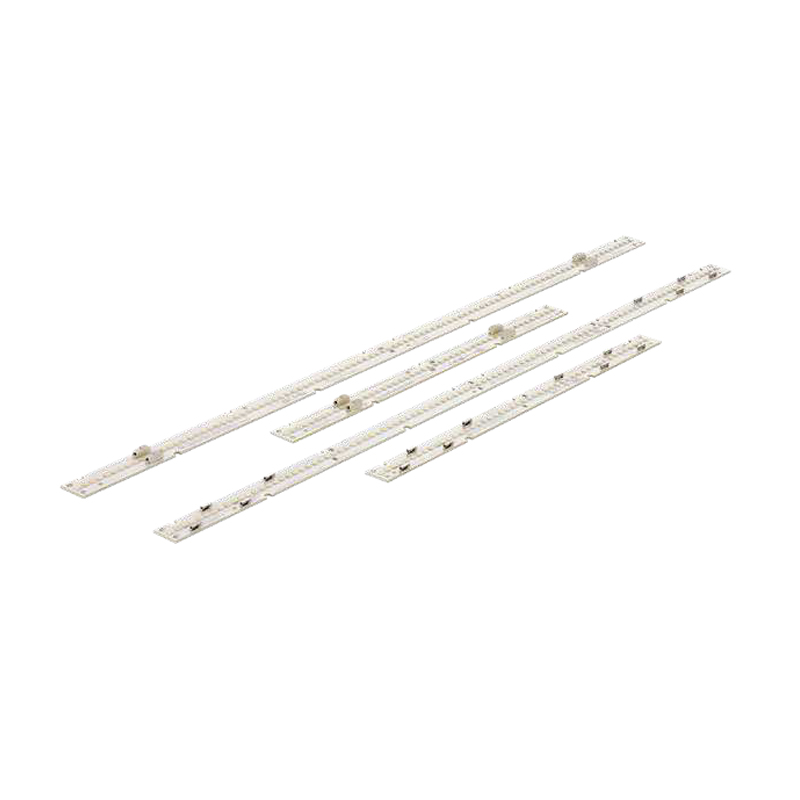

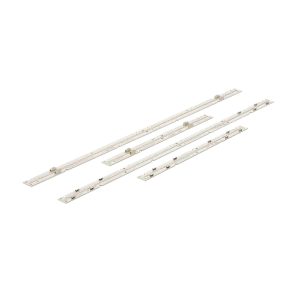

PHILIPS Linear Modules Fortimo Edge lit BioUp CED
Linear Modules
The Fortimo LED square CED BioUp is combining the best of two worlds: a high MDER light spectrum and a tunable white solution. The modules are tunable from 2700 K to 5000 K are designed as such so they perfectly match our Xitanium FlexTune drivers. This enables an easy design-in for a tunable CCT solution with a high MDER. The MDER value at 5000 K is 0.95 which helps to achieve WELL Building certification. Based on the square platform itβs a perfect module to be used in regular office luminaires.
- β‘ Edge lit BioUp CED square module
- β‘ 2700Kβ5000K tunable white
- β‘ High MDER up to 0.95 @5000K
Specifications
- Model
- Fortimo Edge lit BioUp CED
KEY FEATURES
Fortimo Edge lit BioUp CED integrates high MDER spectrum and tunable white, perfectly matching Xitanium FlexTune drivers for simple fixture integration.
It reaches MDER of 0.95 at 5000K, supporting WELL Building certification, built on square platform optimized for standard office luminaires.
Delivers 3100lm light output, 130 lm/W efficacy and 3 SDCM color consistency, with 70β rated case temperature for reliable long-term operation.
APPLICATIONS
WELL certified office lighting
Human-centric office panels
Dynamic circadian office lights
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo Edge Lit 2ft SMF CED FC HV5 929002937206

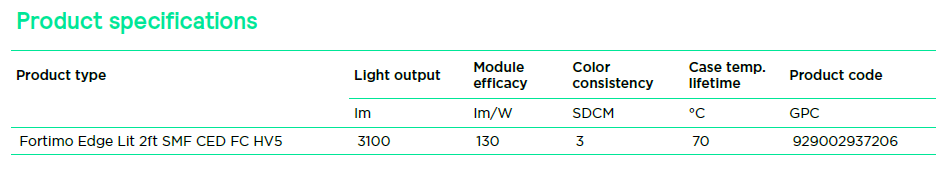

Product specifications
Click to enlarge
FAQ
Q1: What are the key features of Fortimo Edge lit BioUp CED?
A1: It is an edge-lit square LED module combining high MDER spectrum and 2700Kβ5000K tunable white for human-centric lighting.
Q2: Which driver is compatible with this module?
A2: It is designed to perfectly match Xitanium FlexTune drivers, enabling easy design-in of high-MDER tunable CCT lighting systems.
Q3: What certification requirement can this product support?
A3: Its MDER value of 0.95 at 5000K helps lighting projects meet the requirements for WELL Building certification.
