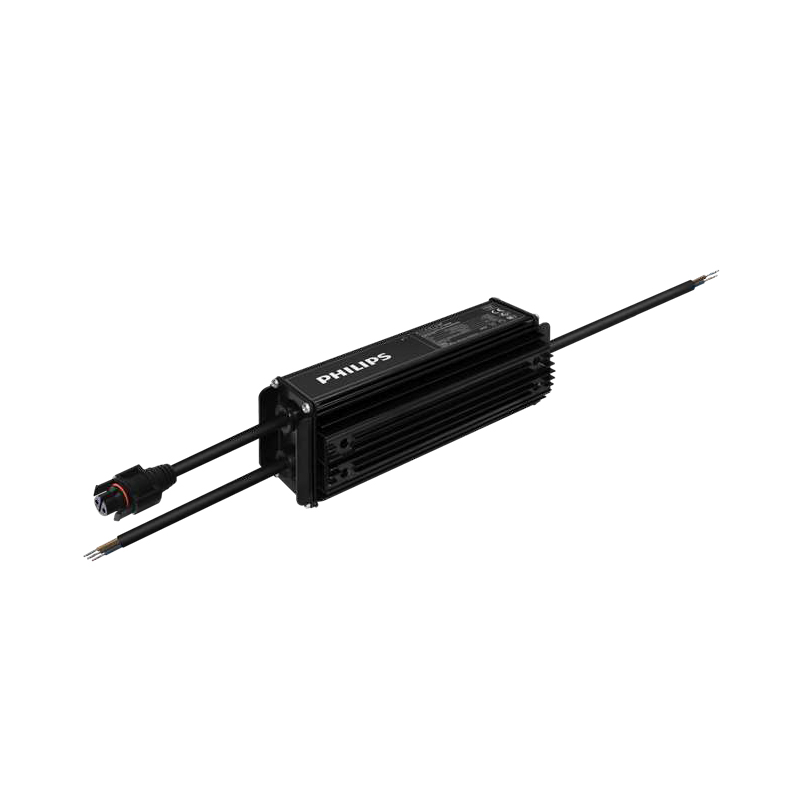

Xitanium Dimmable Single Current High Bay
Xitanium Dimmable High Bay
LED-based light sources are an excellent solution for highbay industrial applications. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient LED Drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.
- ⚡ 1‑10V analog dimming interface
- ⚡ IP67 rugged outdoor protection
- ⚡ 50,000‑hour long operating life
Specifications
- Model
- Xitanium Dimmable High Bay
- Application Scenarios
- Outdoor
KEY FEATURES
Dimmable through 1-10V interface
IP67 with 50,000 hours lifetime @Tc max 85
Provide more application possibility through its dimmable interface to achieve energy saving
Ultimate robustness and reliability to offer peace of mind and reduce maintenance cost
APPLICATIONS
Highbay industry lighting
Warehouse lighting
Big-box retail store lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium Dim 100W 1.05A 1-10V 230V I165,929001407980
- Xitanium Dim 150W 1.05A 1-10V 230V I165,929001407880
- Xitanium Dim 220W 1.05A 1-10V 230V I240,929001407780

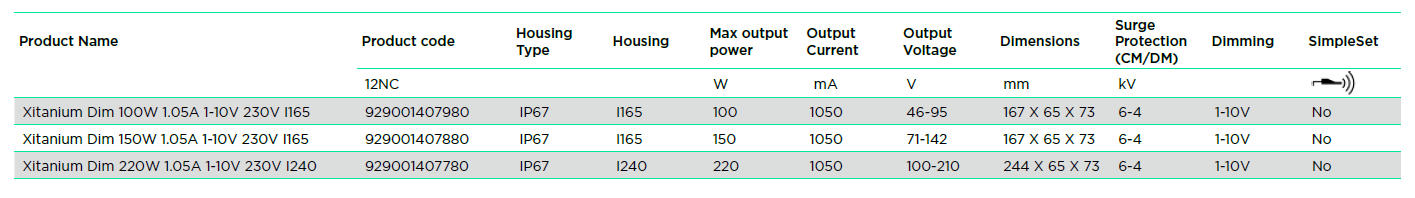

Product specifications
Click to enlarge
DOWNLOADS
FAQ
Q1: How is dimming realized on this driver?
A1: It supports dimming via 1‑10V interface for energy saving.
Q2: What is the IP rating of the driver housing?
A2: IP67 rating for harsh working environments.
Q3: Where are these drivers commonly applied?
A3: High‑bay, warehouse and retail store lighting.
