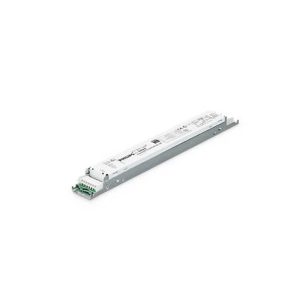

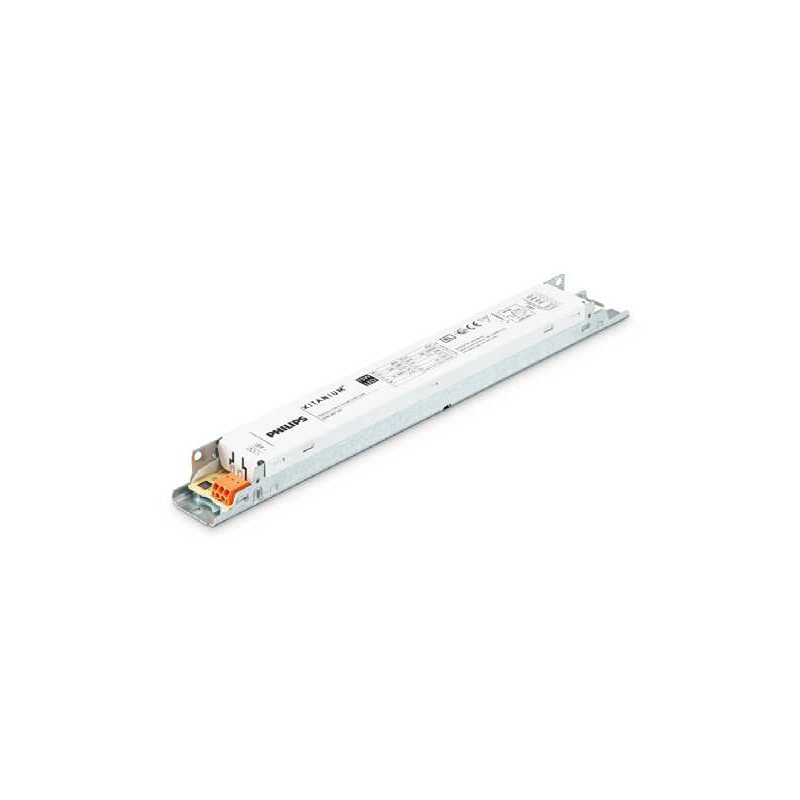

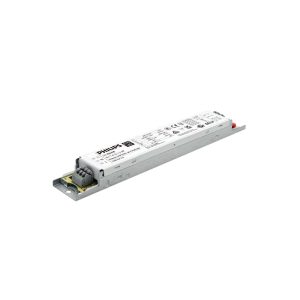

PHILIPS LED Driver Xitanium Adjustable Output Current
Xitanium Adjustable Output Current
Xitanium Adjustable Output Current LED drivers are designed to operate LED solutions for professional general lighting applications. The range includes LEDset and Dip-switch versions, with non-isolated and isolated drivers to support HV and LV linear systems. New Xitanium isolated and non-isolated Dip Switch Linear LED drivers have 4 output currents, offer industry leading performance and reliability at optimized cost.These drivers offer the same level of performance as Xitanium adjustable output current linear drivers to ensure high quality of light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.
- ⚡ Dip‑switch adjustable output current
- ⚡ 50,000‑hour long service lifetime
- ⚡ Excellent EMI & high robustness performance
Specifications
- Model
- Xitanium Adjustable Output Current
- Application Scenarios
- Indoor
KEY FEATURES
Multiple versions: 1-10V dimmable and fixed output
Adjustable output current via a resistor outside the driver or dip-switch
Provides options for different luminaire designs
Confortable for the eyes
Selectable output current enables flexibility and SKU reduction
Energy saving
Peace of mind with proven reliablity
APPLICATIONS
Trunking lighting
Waterproof lighting
Recessed, surface and suspended linear lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium 36W 0.12-0.4A 115V 1-10V 230V 929000953606
- Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706
- Xitanium 21W 0.2-0.5A 42V 1-10V 230V I 929002882180
- Xitanium 44W 0.7-1.05A 42V 1-10V 230V I 929002882280
- Xitanium 35W 0.08-0.35A 150V 16 230V 929001557606
- Xitanium 60W 0.08-0.35A 300V 16 230V 929001557706
- Xitanium 60W 0.08-0.35A 220V 16 230V 929001557806
- Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406
- Xitanium 36W 0.12-0.4A 115V 230V 929000950606
- Xitanium 75W 0.12-0.4A 220V 230V 929000950706
- Xitanium 35W 0.08-0.35A 220V 21 230V 929001694306
- Xitanium 60W 0.08-0.35A 300V 21 230V 929001694406
- Xitanium 60W 0.15-0.5A 220V 21 230V 929001694506
- Xitanium 90W 0.25-0.7A 220V 21 230V 929001694606
- Only partial models shown, please contact us for full options.

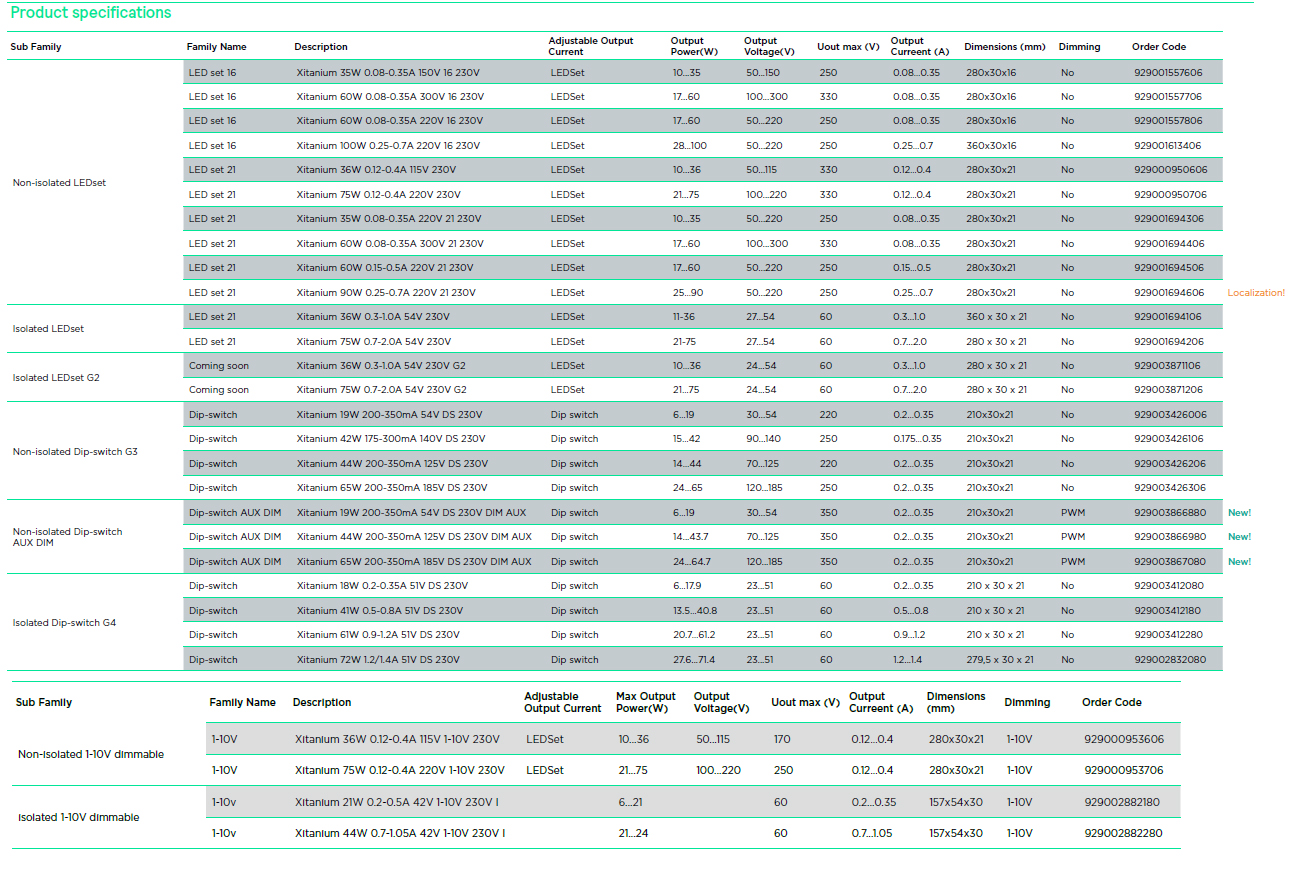

Product specifications
Click to enlarge
FAQ
Q1: How to adjust its output current?
A1: It can be adjusted via external resistor or dip‑switch.
Q2: What are its typical application scenarios?
A2: Trunking, waterproof and various linear lighting systems.
Q3: What dimming type does this driver support?
A3: It supports 1‑10V dimming for professional lighting.
RELATED PRODUCTS
Xitanium LED Drivers - Sensor Ready Drivers (SR)
Xitanium Xi SR
⚡|D4i interface built‑in aux power
View Details →

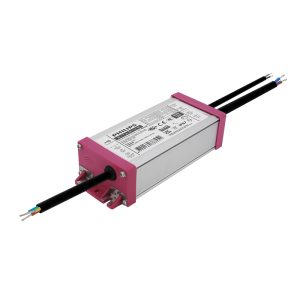

Xitanium LED Drivers - Lite Programmable IP67 Xi LP 65W 0.3-1.05A S1 WL I125
Philips Xi LP 65W 0.3-1.05A S1 WL I125
⚡|Dimming (0-10V) and reversed dimming available
View Details →

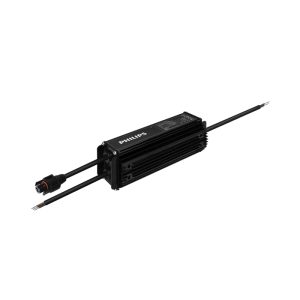

Xitanium Dimmable Single Current High Bay
