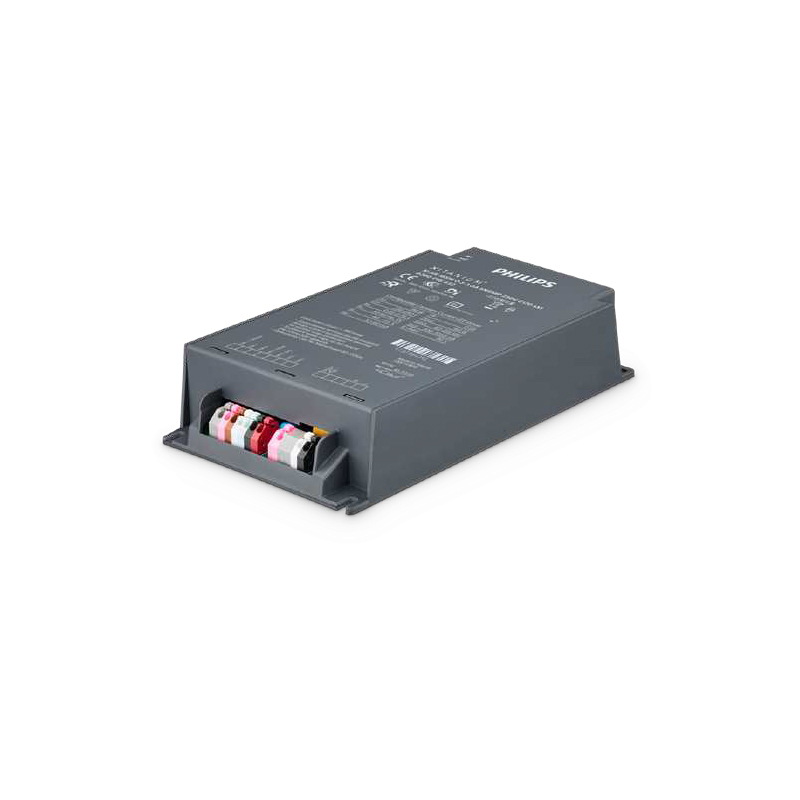

Xitanium LED Drivers - Sensor Ready Drivers (SR)
Xitanium Xi SR
Our Philips Xtreme Sensor Ready (SR) drivers are ideal for use in outdoor applications. These robust drivers feature the D4i interface and can be used in combination with intelligent photocells, or the many smart city management systems developed by our SR certified partners. The accurate energy metering and integrated power supply simplify the design significantly. The integration also increases system reliability. Combined with new universal SR connector (Zhaga standard), these drivers offer future-proof solution for the phased investment capabilities of municipal authorities.
- ⚡ D4i interface built‑in aux power
- ⚡ Precise metering & diagnostics support
- ⚡ 100,000‑hour long service lifetime
Specifications
- Model
- Xitanium LED Drivers-SR
- Application Scenarios
- Outdoor
KEY FEATURES
Integrated 24VDC/3W auxilliary power supply with D4i
interface
Operation compatible DALI parts: 250, 251, 252, 253
Highly accurate power metering, and diagnostics
100,000 hours lifetime @ Tc life with >90% survivors
APPLICATIONS
Road and street lighting
Area lighting
Industrial lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC：:
- Xi SR 22W O.2-1.OA SNEMP 23OV C123 sXt 929002952406
- Xi SR 40W 0.2-1.0A SNEMP 230V C123 sXt 929002952506
- Xi SR 75W 0.2-1.0A SNEMP 230V C150 sXt 929002859506
- Xi SR 110W 0.2-1.0A SNEMP 230V C150 sXt 929002859606
- Xi SR 165W 0.2-1.0A SNEMP 230V C170 sXt 929003389606
- Xi SR 75W 0.2-0.7A SNEMP 230V S240 sXt 929002171906
- Xi SR 75W 0.3-1.0A SNEMP 230V S240 sXt 929002172006
- Xi SR 150W 0.2-0.7A SNEMP 230V S240 sXt 929002172106
- Xi SR 150W 0.3-1.0A SNEMP 230V S240 sXt 929002172206
- Xi SR 75W 2:0.3-1.0A SNEMPF C170 sXt 929002827206

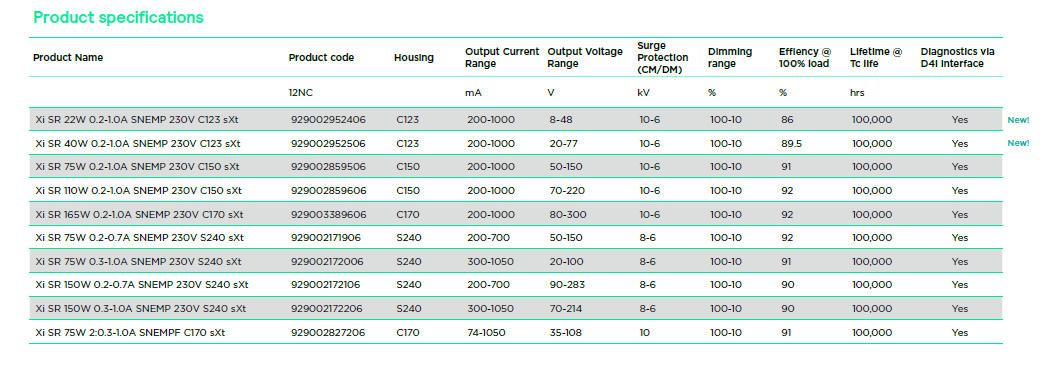

Product specifications
Click to enlarge
DOWNLOADS
FAQ
Q1: What applications fit these SR drivers?
A1: Road, street, area and industrial lighting.
Q2: What interface do these drivers adopt?
A2: They adopt D4i interface with SR connector.
Q3: What benefit does energy metering bring?
A3: It supports real‑time energy management.
