Xitanium Mini Dali DS
Mini Dali Slim
Philips Xitanium LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance,high robustness and safe usage.
- ⚡ Dali 2.0 smooth 1‑100% dimming
- ⚡ Ultra‑slim compact housing design
- ⚡ 50000h long service lifetime
Specifications
- Model
- Xitanium Mini Dali DS
- Application Scenarios
- Indoor
KEY FEATURES
Dali 2.0 with 1-100% dimming
Class I and II application
Low Ripple less than 4%
4 output currents by Dip switch
50,000 hours lifetime
Dali 2.0 enables wired digital controls
Provides options for different luminaire designs
Enables minimization of luminaire
Selectable output current enables flexibility
Peace of mind with proven reliability
APPLICATIONS
Downlight
Tack light
Spot light
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xi 15W/m 0.2-0.35A 42V DS S TD 230V,929003424980
- Xi 25W/m 0.45-0.6A 42V DS S TD 230V,929003425080
- Xi 36W/m 0.7-0.85A 42V DS S TD 230V,929003425180
- Xi 40W/m 0.9-1.05A 42V DS S TD 230V,929003425280
- Xi 15W/m 0.2-0.35A 42V DS I TD 230V,929003425380
- Xi 25W/m 0.45-0.6A 42V DS I TD 230V,929003425480
- Xi 36W/m 0.7-0.85A 42V DS I TD 230V,929003425580
- Xi 40W/m 0.9-1.05A 42V DS I TD 230V,929003425680

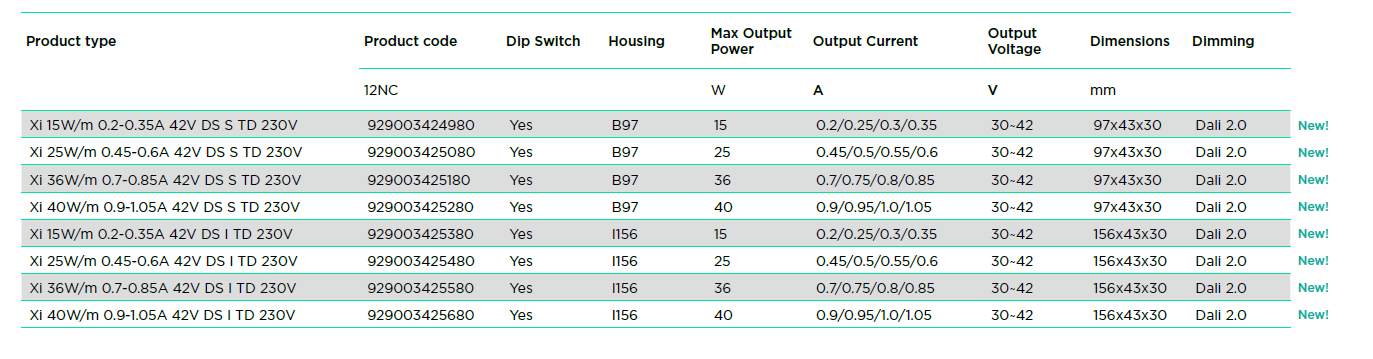

Product specifications
Click to enlarge
FAQ
Q1: What dimming protocol does it adopt?
A1: It adopts Dali 2.0 for 1‑100% dimming.
Q2: How to change its output current?
A2: Adjust via built‑in dip switch settings.
Q3: What are its main usage scenarios?
A3: Downlight, track light and spot light.
