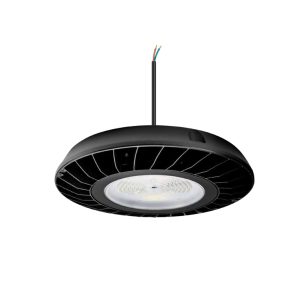

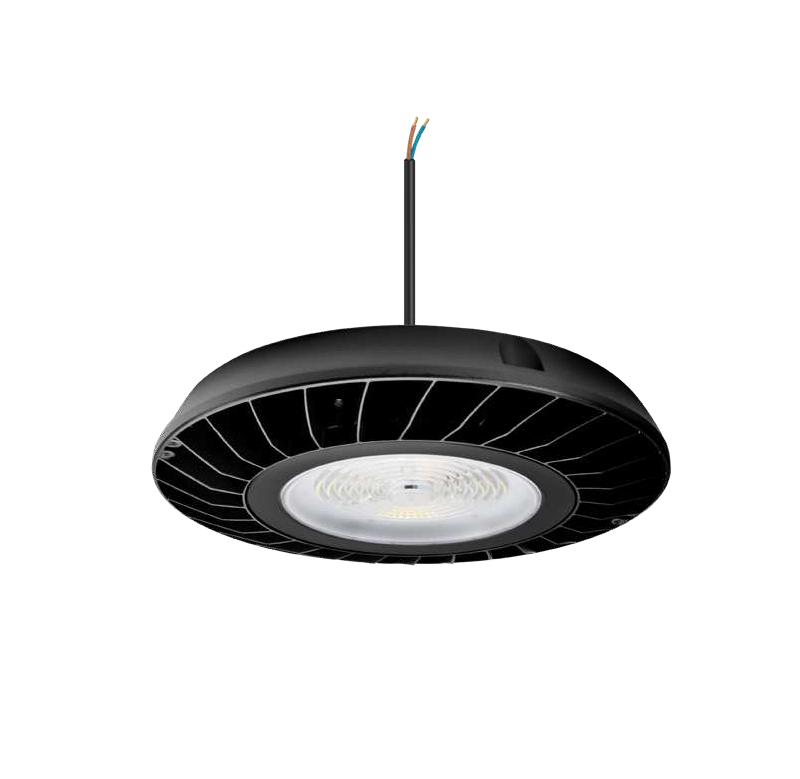

PHILIPS Industrial Modules Fortimo High Bay
Industrial Modules
Fortimo High Bay and Fortimo High Bay HE are integrated LED modules with IP65 protection, optics and heat management. The Fortimo HE version offers best-in-class high energy efficacy and high quality of light while, Fortimo version offers optimized value for money - with integrated lens. The Fortimo High Bay G2 series is designed to enable LED lighting in Industry (high-bay) applications - warehouses, factories, large-format retail stores. A range of compatible IP65 Xitanium round shape high bay drivers complement this High Bay lighting solution in order to further differentiate on efficacy and lifetime under extreme temperature conditions.
- β‘ 1Unlimited optical configurations
- β‘ High efficacy for highbay & outdoor
- β‘ Works with Xitanium LED drivers
Specifications
- Model
- Fortimo High Bay
KEY FEATURES
LED module with heatsink, optics and IP65 rating
High energy efficacy of 145 lm/W (standard) and 170 lm/W(HE), at module level
Four lumen levels: 10K, 15K, 20K and 25K lumens with three CCTs: 4000K, 5700K and
6500K CRI >80
Two light distributions: 60Β° and 90Β°, via integrated lens (standard) or external reflector(HE)
High protection against mechanical impact,IK07
Reliable and robust design, capable of withstanding harsh industrial operating
conditions
Best-in-class energy savings to maximize TCOO
Easy to design-in and assemble; simple set and forget
Wide flexibility by adjusting light output and output current
Extremely long lifetime, fitting with high bay industrial applications
APPLICATIONS
Warehouse and factory high bay lighting
Large-format retail store interior lighting
Industrial workshop and production area lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo High Bay Module 10KLM 840 60 G2 929002855180
- Fortimo High Bay Module 15KLM 840 60 G2 929002855280
- Fortimo High Bay Module 20KLM 840 60 G2 929002855380
- Fortimo High Bay Module 25KLM 840 60 G2 929002855480
- Fortimo High Bay Module 10KLM 857 60 G2 929002855580
- Fortimo High Bay Module 15KLM 857 60 G2 929002855680
- Fortimo High Bay Module 20KLM 857 60 G2 929002855780
- Fortimo High Bay Module 25KLM 857 60 G2 929002855880
- Fortimo High Bay Module 10KLM 865 60 G2 929002855980
- Fortimo High Bay Module 15KLM 865 60 G2 929002856080
- Fortimo High Bay Module 20KLM 865 60 G2 929002856180
- Fortimo High Bay Module 25KLM 865 60 G2 929002856280
- Fortimo High Bay Module 10KLM 840 90 G2 929002857780

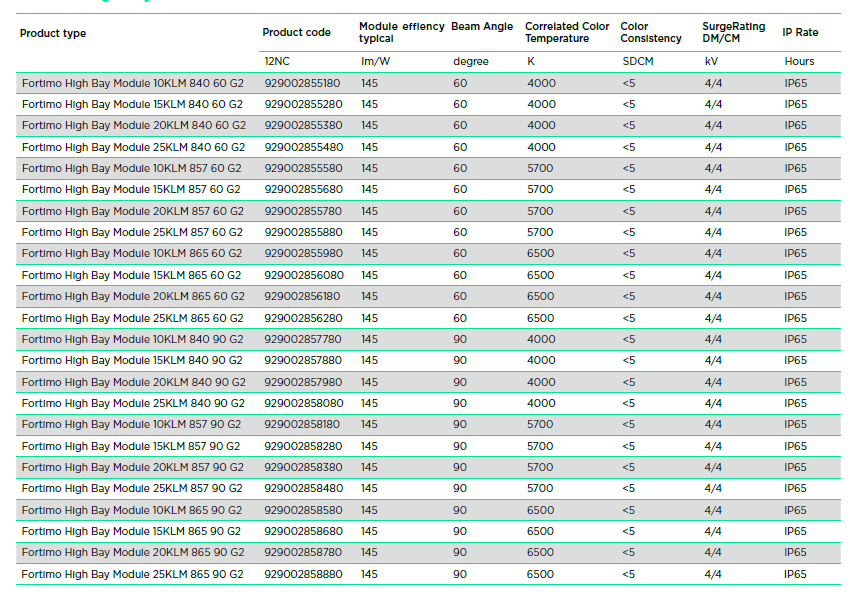

Product specifications
Click to enlarge
FAQ
Q1: What protection rating does Fortimo High Bay G2 have?
A1: It comes with IP65 rating and IK07 mechanical impact protection.
Q2: What luminous efficacy can this high bay module reach?
A2: Standard version is 145 lm/W, HE version reaches up to 170 lm/W.
Q3: What drivers are suitable for Fortimo High Bay G2?
A3: It matches IP65 Xitanium round high bay drivers for complete lighting systems.
