Xitanium Dali and SR
Xitanium wireless LED drivers
Xitanium programmable window LED drivers ensure OEMs have complete flexibility and control in producing high quality luminaires. Available in application dedicated form factors, our LED point drivers provide further customization via wide operating windows. Additionally, almost all drivers feature the following specifications: SELV, temperature derating, hot wiring, providing OEMs the tools to produce, and even alter later if necessary, premium downlights and spotlights.
- ⚡ Dali 2.0 & Touch Dim dimming support
- ⚡ SimpleSet adjustable output current
- ⚡ Low‑ripple, 50,000‑hour lifespan
Specifications
- Model
- Xitanium Dali and SR
- Application Scenarios
- Indoor
KEY FEATURES
Dali and Touch Dim Dimmable
Ajustable output current by SimpleSet
Low ripple
50,000 hours lifetime
Drivers designed based on Philips experience and knowledge in converntional fluorescent and HID technologies
Dali 2.O and Philips SR compataible which provi-de reliable line control lighting system
Future-proof flexbility: application-orientedoperating windows enable LED generation and complexity management
High reliability underpinned by 5 year warranty
APPLICATIONS
Downlight
Tack light
Spot light
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium 20W /m 0.15-0.5A 54V S TD 230V,929001485106
- Xitanium 36W /m 0.3-1.05A 54V S TD 230V,929001485206
- Xitanium 36W WH 0.15-1.05A 54V TD/Is,929002861906
- Xitanium 50W WH 0.7-1.5A 54V TD/Is,929002862006
- Xitanium 20W WH 0.15-0.5A 54V SR Is 230V,929002861106
- Xitanium 36W WH 0.3-1.05A 54V SR Is 230V,929002861206
- Xitanium 50W WH 0.7-1.5A 54V SR Is 230V,929002861306

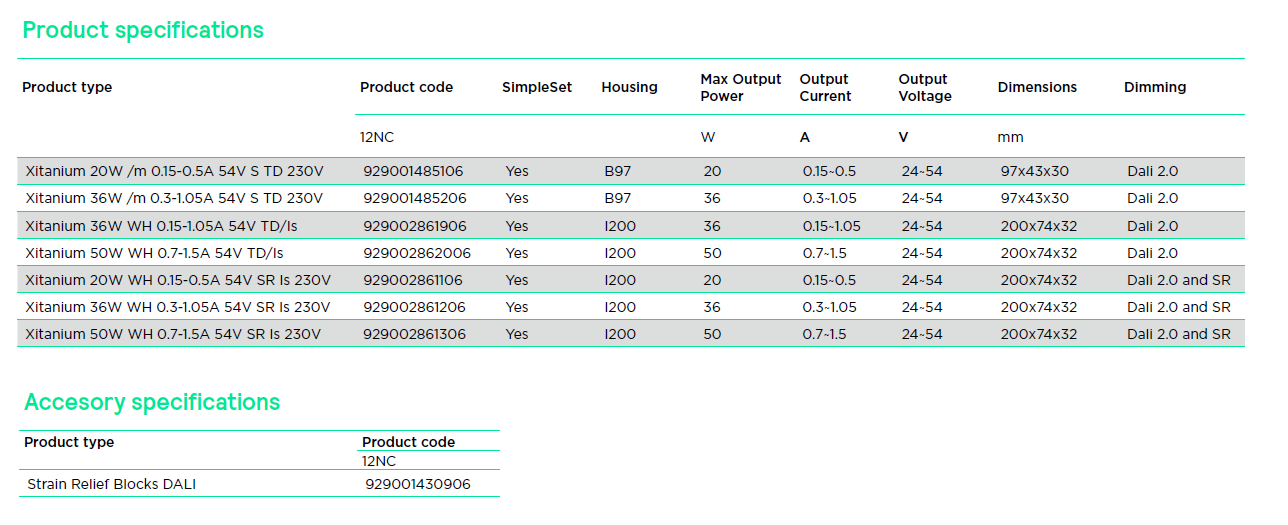

Product specifications
Click to enlarge
FAQ
Q1: What dimming protocols does this driver support?
A1: Dali 2.0 and Touch Dim dimming functions.
Q2: How to adjust its output current?
A2: Output current adjustable via SimpleSet tool.
Q3: What are the main application scenarios?
A3: Downlight, track light and spot light fixtures.
