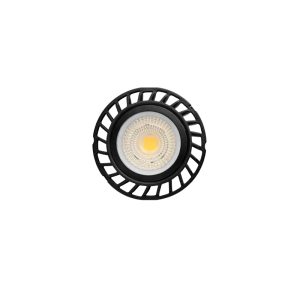

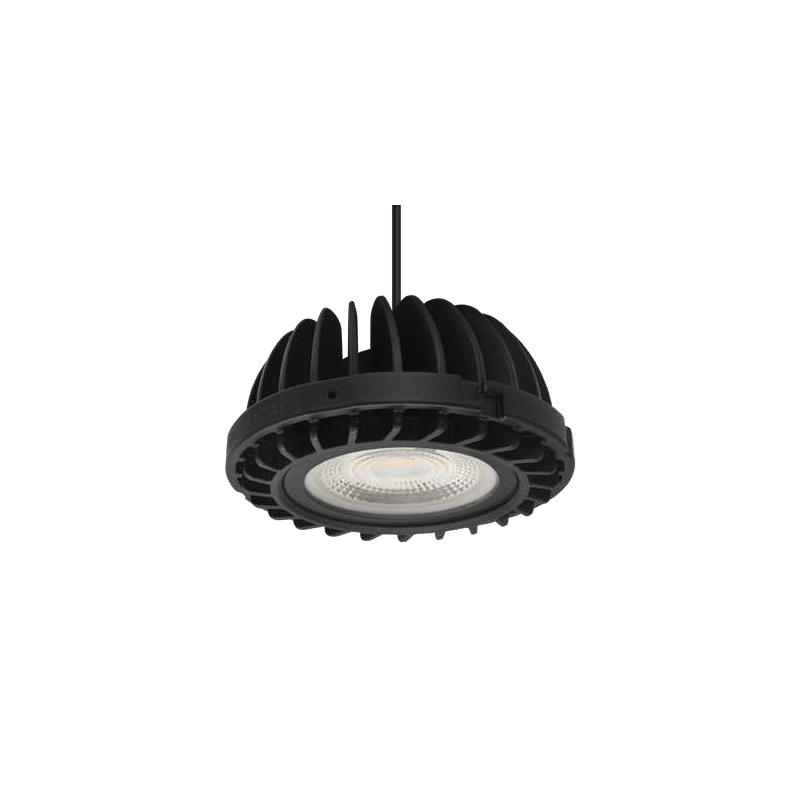

PHILIPS Downlight Modules Fortimo DLM R111
Downlight Modules
Being the trend setter in high performance LED downlighting with the Fortimo DLM range, Philips introduced the next generation of the Fortimo LED DLM Flex family. Being backwards compatible with the previous generation, Fortimo LED DLM Flex Gen2 enables further optimization of existing as well as new flexible downlight luminair designs.
- ⚡ Low flicker, max 4% current ripple
- ⚡ Better glare performance than COB
- ⚡ CRI>90 with stable color
Specifications
- Model
- Fortimo DLM R111
KEY FEATURES
Low flicker (Max 4% for output current Ripple)
Integrated with heatsink and ue-for-money CertaDrive drivers
Backwards compatibility and up to 162lm/W at an improved Tc of 75˚C
Better glare performance vs CoB solutions
CRI >80 and perfect colour stability over lifetime
APPLICATIONS
Offices
Public buildings
Hospitality
Retail
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo DLM RT111 2000lm 927 24D 929002806006
- Fortimo DLM RT111 2000lm 930 PW 24D 929002806106
- Fortimo DLM RT111 2000lm 940 PW 24D 929002806206
- Fortimo DLM RT111 2000lm 927 36D 929002806306
- Fortimo DLM RT111 2000lm 930 PW 36D 929002806406
- Fortimo DLM RT111 2000lm 940 PW 36D 929002806506
- Fortimo DLM RT111 2000lm 927 60D 929002806606
- Fortimo DLM RT111 2000lm 930 PW 60D 929002806706
- Fortimo DLM RT111 2000lm 940 PW 60D 929002806806
- Fortimo DLM RT111 3000lm 930 PW 24D 929002807106
- Fortimo DLM RT111 3000lm 940 PW 24D 929002807206
- Fortimo DLM RT111 3000lm 930 PW 36D 929002807306
- Fortimo DLM RT111 3000lm 940 PW 36D 929002807406
- Only partial models shown, please contact us for full options

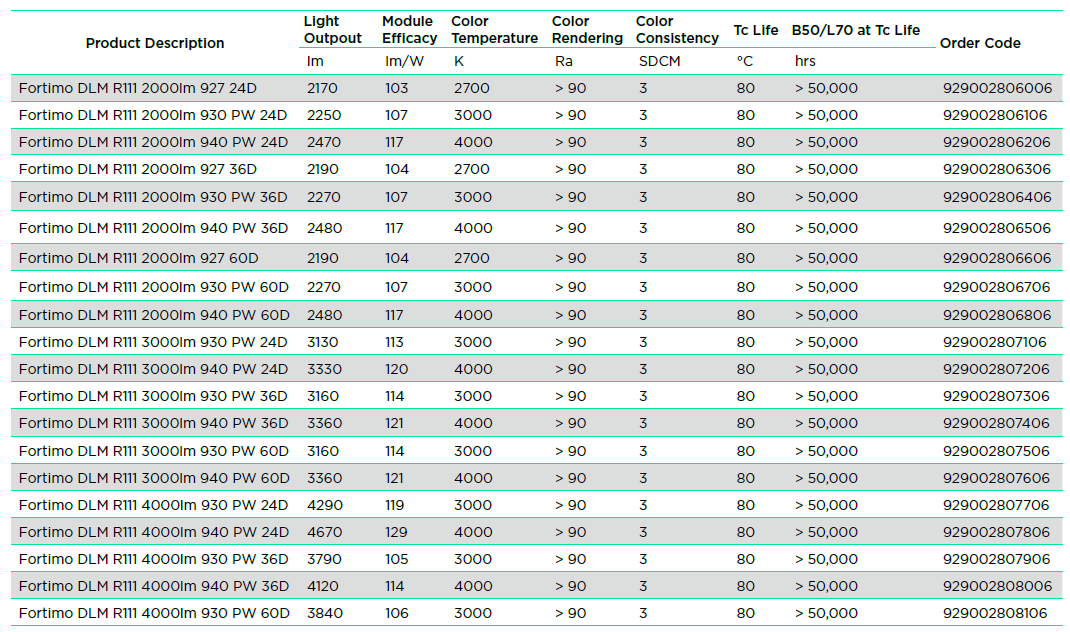

Product specifications
Click to enlarge
FAQ
Q1: What are the core features of Fortimo DLM R111?
A1: It features max 4% low flicker, integrated heatsink, backward compatibility and better glare control compared with COB lighting solutions.
Q2: What lumen levels and color rendering does this module offer?
A2: Available in 2000lm, 3000lm and 4000lm, CRI＞90 with excellent long-term color stability.
Q3: What are the typical applications for Fortimo DLM R111?
A3: It is designed for offices, public buildings, hospitality and retail high-performance downlight luminaires.
