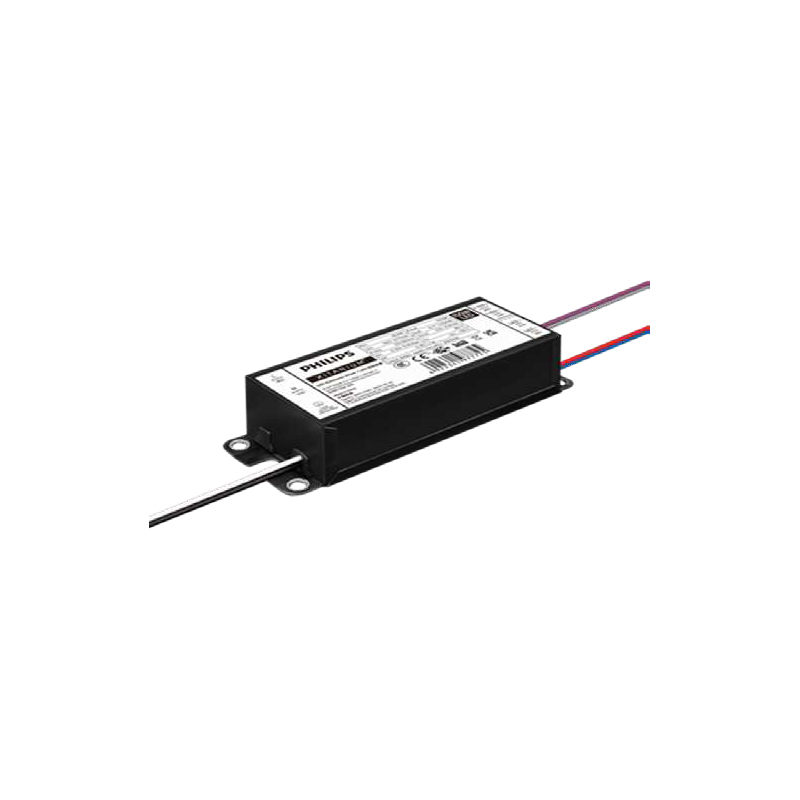

Xitanium LED Drivers - Essential Programmble (EP)
Xitanium Xi EP
Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for outdoor applications. The key feature is to adjust the output current with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration. The WideLine family can operate on input voltage 100-277Vac and ensure 100% performance from 200-254Vac.
- ⚡ NFC‑based e‑set quick configuration
- ⚡ WideLine 100‑277Vac input range
- ⚡ IP66/IP67 rugged outdoor protection
Specifications
- Model
- Xitanium LED Drivers-EP
- Application Scenarios
- Outdoor
KEY FEATURES
Digital and simple Adjustable Output Current (AOC) with e-set tool, based on NFC
technology
WideLine input voltage range: 100-277Vac
IP66/IP67 with 50,000 hours lifetime @ Tc Max
SELV certified
Reliable and repeatable adjustment of output current to save labor cost and time
Easy to design-in and reduces SKUs
Low maintenance cost and peace of mind in extreme conditions
Safe to use and provides luminaire design freedom
APPLICATIONS
Road and street lighting
Area and flood lighting
High-bay lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xi EP LV 65W 0.9-2.2A WL I120 929003392680
- Xi EP LV 100W 1.3-3.4A WL II55 929003392780
- Xi EP LV 150W 2.0-5.0A WL II75 929003392880
- Xi EP LV 200W 3.0-6.7A WL II95 929003392980
- Xi EP LV 250W 4.0-8.3A WL I215 929003393080
- Xi EP LV 65W 0.9-2.2A 1-10V WL I120 929003393480
- Xi EP LV 100W 1.3-3.4A 1-10V WL II55 929003393580
- Xi EP LV 150W 2.0-5.0A 1-10V WL II75 929003393680
- Xi EP LV 200W 3.0-6.7A 1-10V WL II95 929003393780
- Xi EP LV 250W 4.0-8.3A 1-10V WL I215 929003393880
- Xi EP 40W 0.7-1.05A WL I90 929003422280
- Xi EP 40W 1.0-1.3A WL I90 929003422380
- Xi EP 40W 0.7-1.05A 1-10V WL II12 929003422480
- Xi EP 40W 0.7-1.05A 5-0V WL II12 929003422580
- Xi EP 65W 0.7-1.05A WL II12 929003422680
- Xi EP 65W 1.3-2.0A WL II12 929003422780
- Xi EP 65W 0.7-1.05A 1-10V WL II12 929003422880
- Xi EP 65W 0.7-1.05A 5-0V WL II12 929003422980
- Xi EP 40W 0.7-1.05A 1-10V WL J 929003423980
- Xi EP 65W 0.7-1.05A 1-10V WL J 929003424080
- Xi EP 100W 0.7-1.05A 1-10V WL Y 929003424180
- Xi EP 150W 0.7-1.05A 1-10V WL Y 929003424280
- Xi EP 200W 0.86-1.3A 1-10V WL F 929003424380
- Xi EP 250W 1.05-1.5A 1-10V WL F 929003424480

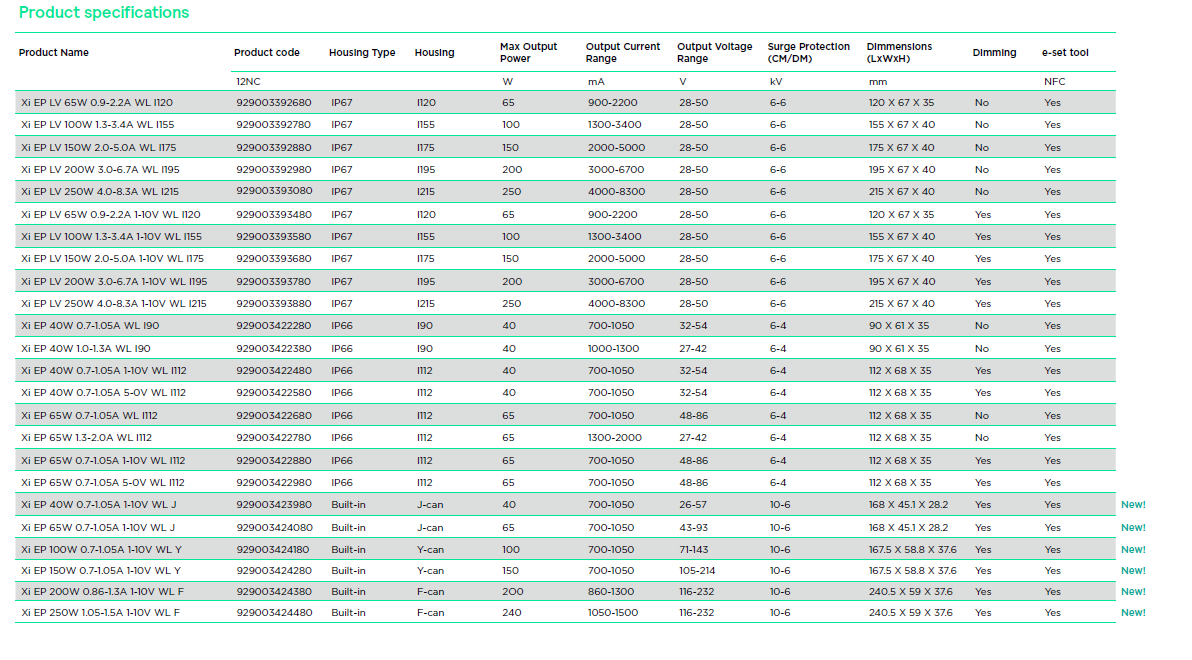

Product specifications
Click to enlarge
DOWNLOADS
FAQ
Q1: What tool configures EP LED drivers?
A1: NFC‑powered e‑set tool without power‑on.
Q2: What input voltage does WideLine support?
A2: 100‑277Vac wide input voltage range.
Q3: What are the main application scenarios?
A3: Road, street, flood and high‑bay lighting.
