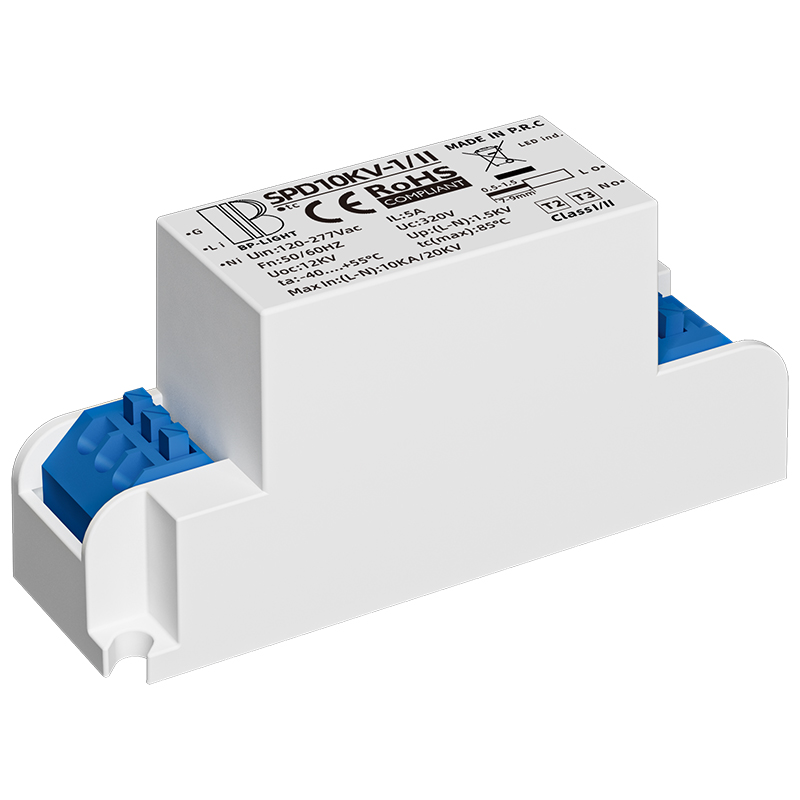

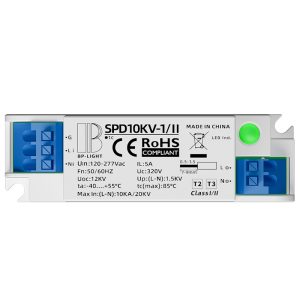

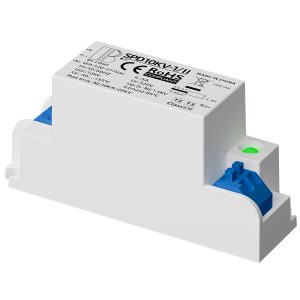

The Type 2 & Type 3 terminal-type 10kV & 12kV LED Surge Protective Device complies with Class II luminaire requirements.
BP-SPD10KV-1/II|LED Street Lighting Surge Arrester
The BP-SPD10KV-2 LED SPD is specifically designed for Class II street lights and garden lights. It complies with both Type 2 and Type 3 standards, and is certified with 5kA and 6kA lightning protection ratings. Its user-friendly terminal design simplifies installation, helping luminaire manufacturers and contractors reduce costs without compromising safety and reliability.
- ⚡ Compliant with Class II luminaires
- ⚡ Terminal color is customizable
- ⚡ Compatible with both 10kV and 12kV certifications
Specifications
- Model
- BP-SPD10KV-1/II
- Terminal color
- Grey, Green, Three colors, Blue, Orange
- SPD thermally protected
- 10KV, 12KV
- Applicable luminaires
- Class Il luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- Max input voltage (Un)
- ≤320
- IP Rating
- IP20
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | The Type 2 & Type 3 terminal-type 10kV & 12kV LED Surge Protective Device complies with Class II luminaire requirements. |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP20 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Conductor cross section | 0.5...1.5 mm2 |
| Product Weight[g] | 49 |
| Packaging Dimensions (LXW X H) [Mm] | 72*22*34 |
DOWNLOADS
FAQ
what is led spd?
LED Surge Protective Device (LED SPD stands for Surge Protective Device, which protects LED drivers and luminaires against lightning surges and voltage spikes to avoid burnout.)
What are the standards for LED SPD?
1. IEC 61643-11 / EN 61643-11 IEC 61643-21;2 UL 1449;3 GB/T 18802.11
Does this SPD require grounding when used in Class II luminaires?
Grounding is not required. According to the international electrotechnical standard (IEC 60598-1), theprotection against electric shock for Class II luminaires relies on double insulation or reinforced insulation. It does not require nor is it permitted to rely on. protective earthing (PE)as a safety measure.
Can you provide CB test reports for both 10kV and 12kV? Whichcertification body issues these reports?
We can provide the 12kV test report, and the 12kV rating is fully compatible with 10kV. The certification body is DEKRA.
Can this product be provided with an ENEC certificate?
Yes, we can provide the ENEC certificate. Our products have passed the EN 61643-11:2025 test and can beupgraded to the ENEC certificate. Please note that the certificate fee will need to be covered by the certificateholder.
Do you accept custom orders, and if so, what are the requirements?
We fully accept product customization. Labels, terminal colors, and packaging can all be customized. The Minimum Order Quantity (MOQ) is 3,000 pcs.
