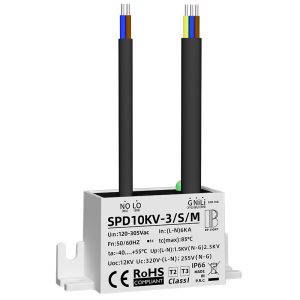

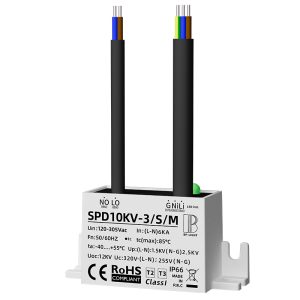

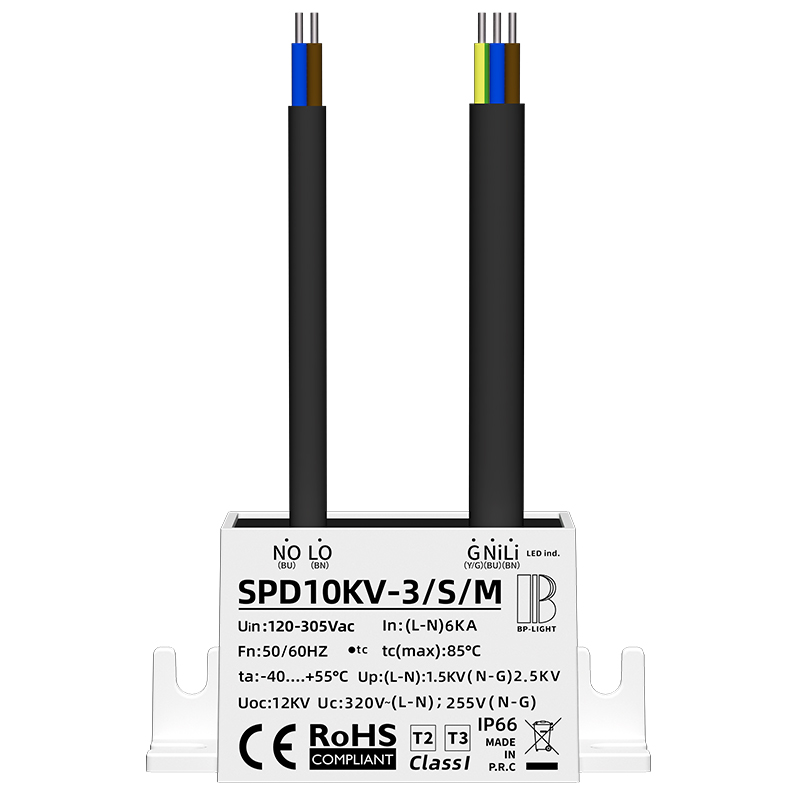

AC Rubber Cable 12kV Type 1 Series-Mounted Surge Protection Device for LED Outdoor Luminaires
BP-SPD10KV-3/S/M|Outdoor Street Light Surge Arrester SPD
12kV outdoor LED SPD with rubber cable output, built-in 5-core series connection design. It provides optimal protection for individual LED drivers, delivers excellent performance, and enables convenient wiring. The product is UV-resistant and aging-resistant, and can be independently installed outdoors.
- ⚡ 12kV series surge protector with rubber cable
- ⚡ 6kA series surge protecto
- ⚡ Type 2 & Type 3 12kV surge protector
Specifications
- Model
- BP-SPD 10KV-3/S/M
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP67
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | AC Rubber Cable 12kV Type 1 Series-Mounted Surge Protection Device for LED Outdoor Luminaires |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
DOWNLOADS
FAQ
What are the differential mode and common mode values of the 5-wire rubber cable series 12kV surge protector?
differential mode (L-N) and common mode (L-PE, N-PE) are 12kV, with a nominal discharge current of 6kA.
Can the wire length of the 5-wire rubber cable series 12kV surge protector be customized?
Yes, the wire length can be customized according to customer requirements.
Is this LED surge protector equipped with thermal trip and indicator light?
It is standard with thermal trip protection and operation/fault indicator light.
Does this surge protector have product certifications?
Yes, it is certified by CE, CB, IEC 61643-11, EN 61643-11, with IP67 ingress protection
Can this surge protector be used independently outdoors?
Yes, it adopts waterproof rubber cable, is UV and aging resistant, and can be independently installed outdoors directly.
Does lack of a thermal disconnector create a risk of fire?
Low-cost MOV without disconnector may short-circuit and cause fire when aged.
