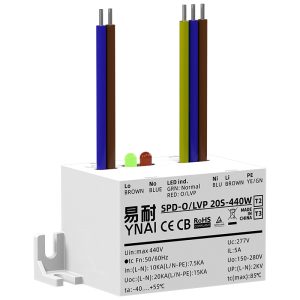

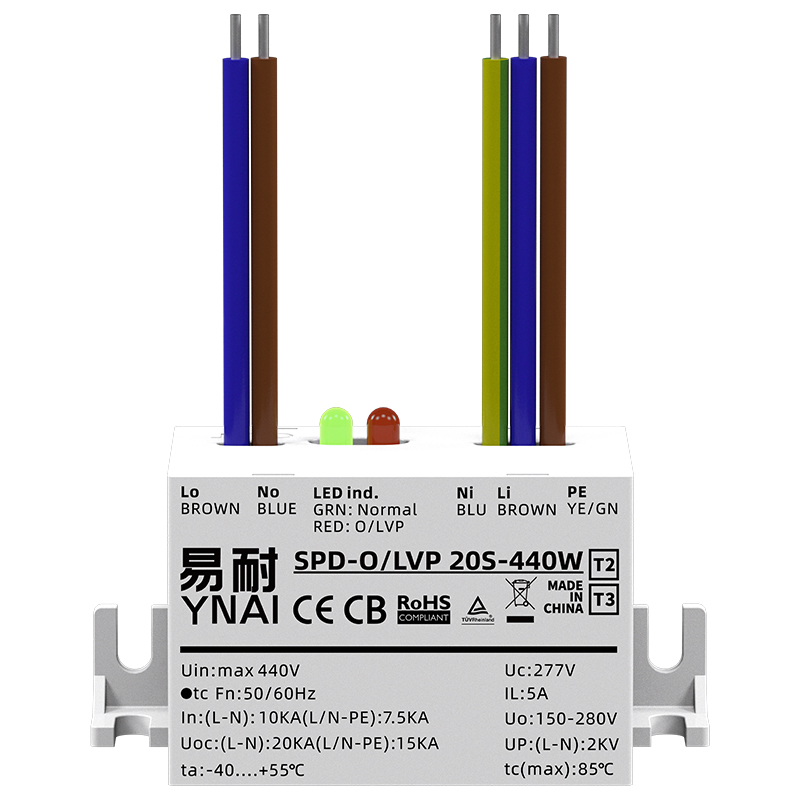

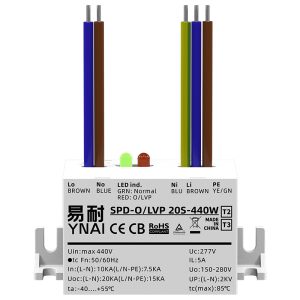

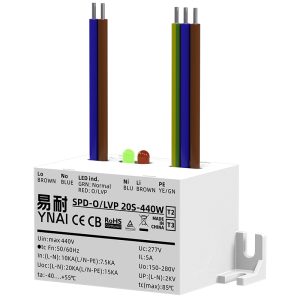

OVP UVP Integrated LED SPD Surge Suppressors Over Voltage Under Voltage Surge Protector for Outdoor LED Light Fixtures
SPD+O/LVP 20S-440W 150-280V G1|Auto Reset Over/Under Voltage Protector with Surge Protective Function
This wire type LED surge suppressor is an all-in-one protective device tailored for outdoor LED street lights, floodlights, tunnel lamps and other outdoor lighting equipment, integrating OVP overvoltage protection, UVP undervoltage protection and high-performance LED SPD lightning surge protection into one compact unit.
- β‘ Auto Reset Over/Under Voltage
- β‘ Input Voltage Range: 0-440V
- β‘ Anti-flickering from mains voltage spikes(3s)
Specifications
- Model
- SPD+O/LVP 20S-440W G1
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max Discharge Current
- 20KA
- Output Voltage range
- 150-280Vac
- SPD Category
- SPD+O/LVP
- IP Rating
- IP67
- Max input voltage (Un)
- 0-440V
KEY FEATURES
Input Voltage Range: 0-440V
Output Voltage range: 150-280Vac
OVP: disconnected when mains voltage>280vac
LVP: disconnected when mains voltaget<150Vac
Anti-flickering from mains voltage spikes(3s)
Soft start for lower inrush current
Protection: L-N, L-PE,N-PE
Open Circuit Voltage (Uoc) 20kV, 1.2/50us
Max discharge current: 20KA(one time), 8/20us
20KV SPD thermally protected
O/LVP indicator and SPD EOL indictor
EN 61643-11-T2&3
Series installation
Wire and terminal version
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | OVP UVP Integrated LED SPD Surge Suppressors Over Voltage Under Voltage Surge Protector for Outdoor LED Light Fixtures |
|---|---|
| Product Type | SPD+O/LVP 20S-440W150-280V I67 G1 |
| Input Voltage(Performance range) | 0-440 |
| Work Voltage (Rangev) | 150-280 |
| LVP (less than:v) | 150 |
| OVP (greater than:v) | 280 |
|---|---|
| SPD | 20 |
| IP | 67 |
| TC MAX | 85Β° |
| Anti-flickering frommains voltage spikes | 3S |
DOWNLOADS
FAQ
How do I choose between 10kV/10kA and 20kV/20kA protection levels?
10kV/10kA: Ideal for standard urban street lighting or areas with stable grids and low lightning frequency. It offers the best cost-to-performance ratio.20kV/20kA:Recommended for high-risk areas like highways, coastal regions, remote rural areas, or high-mast stadium lighting. Higher kA ratings mean the device can withstand more frequent and powerful surges, ensuring a longer lifespan for the entire luminaire.
"What is the difference between Series and Parallel installation? Which is better?
We offer both versions to suit your project requirements: Parallel: Easier to install. If the SPD fails, the light stays on but is no longer protected. Series: This is the preferred choice for most professional projects. When the SPD reaches its end-of-life, it automatically disconnects power to the fixture. This ""failsafe"" mode alerts maintenance teams to replace the SPD, ensuring the expensive LED luminaire is never left unprotected."
Is this device fully waterproof for extreme outdoor use?
Yes. Our SPDs are designed for harsh environments with an IP66 or IP67 rating. They are housed in flame-retardant casings and fully encapsulated with high-grade epoxy resin. This ensures reliable operation against heavy rain, high humidity, and temperature fluctuations from -40Β°C to +85Β°C.
Can the cable length of this SPD for outdoor lighting be customized?
Yes. We can customize the cable length according to your requirements, with a MOQ of 1000 pieces.
RELATED PRODUCTS

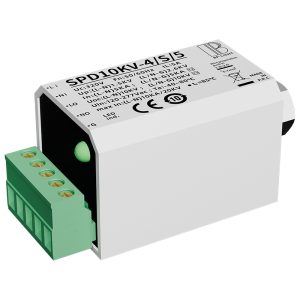

Light SPD Lightning Surge Arrestor, Surge Protection Device Suitable for Outdoor LED Lighting Lamps
BP-SPD10KV-4/S/5|LED Surge Protector
β‘|Conductor cross section:1.0~ 2.5mmΒ²
View Details β

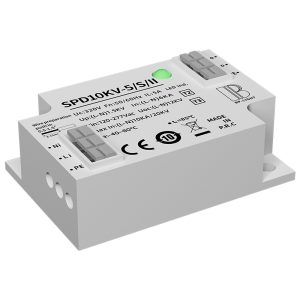

Light SPD Surge Protection Device, Type 2+3 Surge Arrestor Suitable for Outdoor LED Street Light Flood Light Luminaires
BP-SPD10KV-5/S/II|LED Surge Protector
β‘|Max Discharge Current:10KA
View Details β

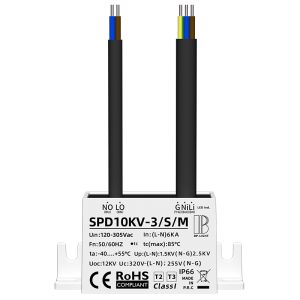

AC Rubber Cable 12kV Type 1 Series-Mounted Surge Protection Device for LED Outdoor Luminaires
BP-SPD10KV-3/S/M|Outdoor Street Light Surge Arrester SPD
β‘|12kV series surge protector with rubber cable
View Details β

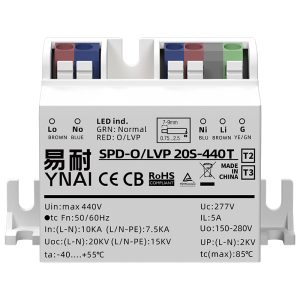

OVP UVP LED SPD Lightning Surge Arrestor LED Lighting Surge Suppressors for Street Light Floodlight
