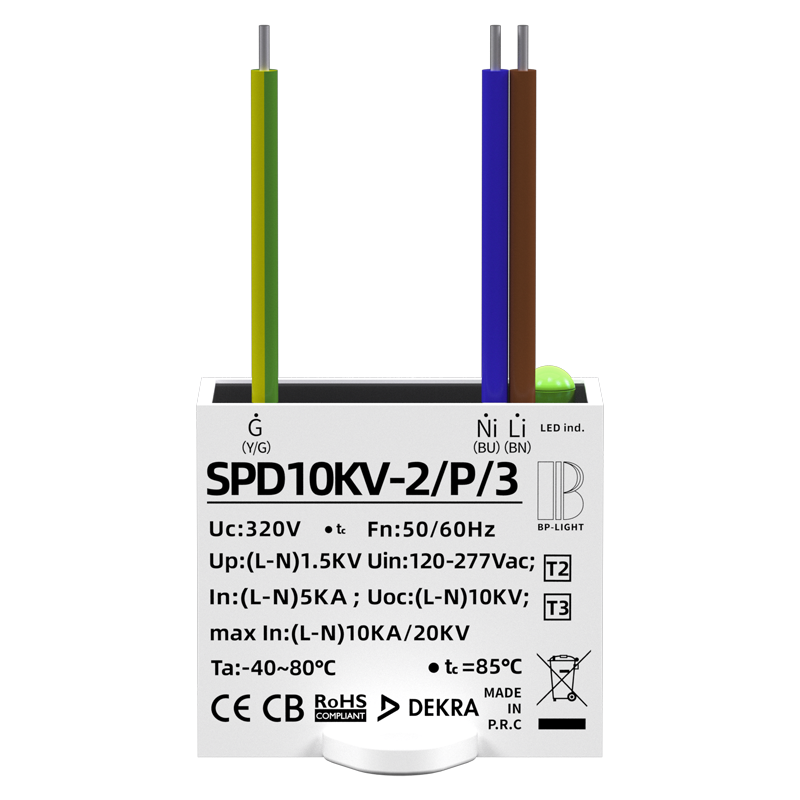

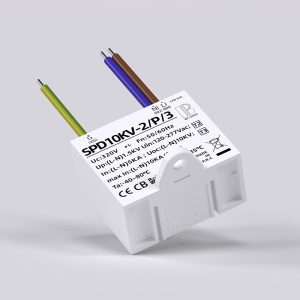

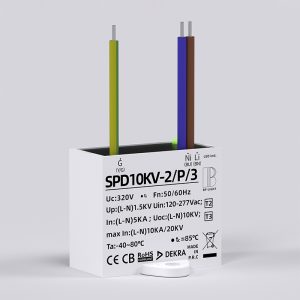

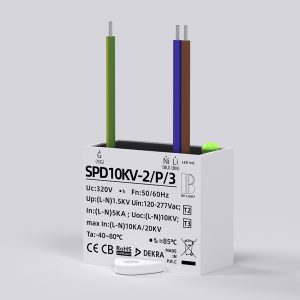

European standard CE / CB / ENEC, 10KV 3-wire parallel IP67 LED street light surge protection device
BP-SPD10KV-2/P/3|LED Street Lighting Surge Arrester
10kV parallel IP67 LED surge protector, designed in accordance with IEC 61643-11 and EN 61643-11 standards, certified to Type 2 and Type 3 levels, suitable for Class I luminaires. It effectively protects outdoor lighting fixtures and reduces equipment maintenance.
- ⚡ IP67, 3-wire parallel connection
- ⚡ Suitable for Class I luminaires
- ⚡ Customization available for labels, cable length and other requirements
Specifications
- Model
- BP-SPD10KV-2/P/3
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Parallel
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP67
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | European standard CE / CB / ENEC, 10KV 3-wire parallel IP67 LED street light surge protection device |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 48 |
| Packaging Dimensions (LXW X H) [Mm] | 30*27.6*36 |
DOWNLOADS
FAQ
Should LED outdoor lighting use parallel or series surge protectors?
For outdoor LED lights, parallel surge protectors are generally more suitable, with better protection performance and less impact on the power supply.
How to wire a parallel surge protector for Class I luminaires?
Connect the live and neutral lines in parallel between the power supply and the LED driver, and the ground wire of the surge protector must be connected to the system grounding terminal.
Can a 3-wire parallel surge protector be used without grounding?
No. A 3-wire parallel surge protector for Class I luminaires must be grounded to ensure effective lightning protection and safety.
What is the maximum load of this surge protector?
This surge protector has a maximum load current of 5A and a maximum applicable power of 1100W.
What is Uc on SPD?
Uc stands for Maximum Continuous Operating Voltage.It is the maximum RMS AC voltage that can be applied continuously to the SPD without overheating, premature ageing or failure.
