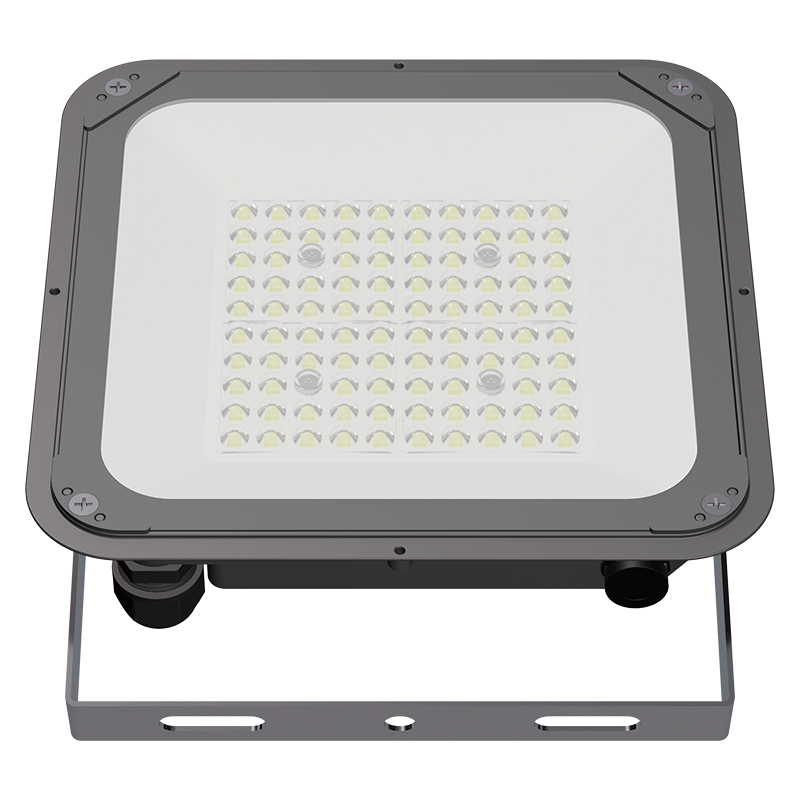

LED Flood Light with Built‑in Driver IP66 Outdoor Waterproof High Power Floodlight for Project Lighting
Floodlight
BPL‑SL‑M flood‑light mode converted from multifunctional vintage retrofit kit. Add optional U‑bracket to realize wall‑mount floodlight within 5 minutes without modifying original lamp housing. IP66 sealed protection, power ranges 60‑120W, L70 100000‑hr lifespan. Three driver versions are selectable. It delivers wide‑area illumination for building facade, heritage site and landscape outdoor retrofit lighting projects.
- ⭐ Slim 45mm narrow‑bezel design
- ⭐ Surface mount, no cut‑out needed
- ⭐ Eye‑comfort healthy lighting
Specifications
- Application Scenarios
- Indoor
- LED Light Types
- Flood light
KEY FEATURES
Zero‑modification retrofit design fits existing vintage lantern housings. Single replacement finishes within 10 minutes without cutting or altering original historic lamp structures.
Dual‑mode function switches between street light and flood light via matched brackets, covering road, facade and landscape lighting to lower inventory and custom costs greatly.

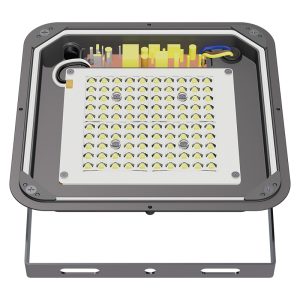

Three driver options (built‑in, external, driver‑free IC) cover full 30V‑120W power range, matching space‑limited, centralized‑supply and cost‑sensitive projects.
Advanced bat‑wing light distribution lifts road surface uniformity, suppresses glare and light spill, solving “bright under lamp, dark between lamps” defects for high‑quality road illumination.
IP66 dust‑waterproof and IK08 impact‑resistance plus 100000‑hour L70 lifetime deliver stable outdoor performance and much longer maintenance cycles than traditional sodium lamps.
APPLICATIONS
Heritage vintage lantern renovation outdoor lighting projects
Urban road and high‑mast roadway illumination application
Building facade and park landscape supplementary lighting
TECHNICAL SPECIFICATIONS
| Title | LED Flood Light with Built‑in Driver IP66 Outdoor Waterproof High Power Floodlight for Project Lighting |
|---|---|
| Rated Voltage | AC 100-240V/277V50/60Hz |
| LED Driver | Philips (Standard) / Other brands optional |
| Power Factor | >0.95 |
| THD | 70 (Standard)/Ra>80 |
| Color Temperature (CCT) | 1800K,2200K,2700K,3000K,4000K,5000K,5700K,6500K |
| Materials | High-pressure die-cast aluminum, tempered glass, UV-stabilized polycarbonate |
|---|---|
| Housing Color | Black (Standard)/Custom colors available |
| Operating Environment | -40°C~ 50°C, 10% ~ 90% RH (Relative Humidity) |
| Lifetime at ℃ Ambient Temperature | >100,000h |
| Impact Protection Rating | IK08 |
| Mounting Kit | Round Kit (400mm) / Square Kit (400 X400mm); Custom shape & size available |
Photometric Parameters
Click to enlarge
DOWNLOADS
FAQ
Q1: How long does a single retrofit replacement take for BPL‑SL‑M kit?
A1: One‑unit replacement can be completed within 10 minutes with zero modification to original housing.
Q2: What protection grade does this multifunctional retrofit kit achieve?
A2: It owns IP66 dust‑waterproof rating and IK08 mechanical impact‑resistance for outdoor harsh environments.
Q3: What working modes can this retrofit module support?
A3: It supports dual‑mode switch between street‑light mode and flood‑light mode with matching accessories.
