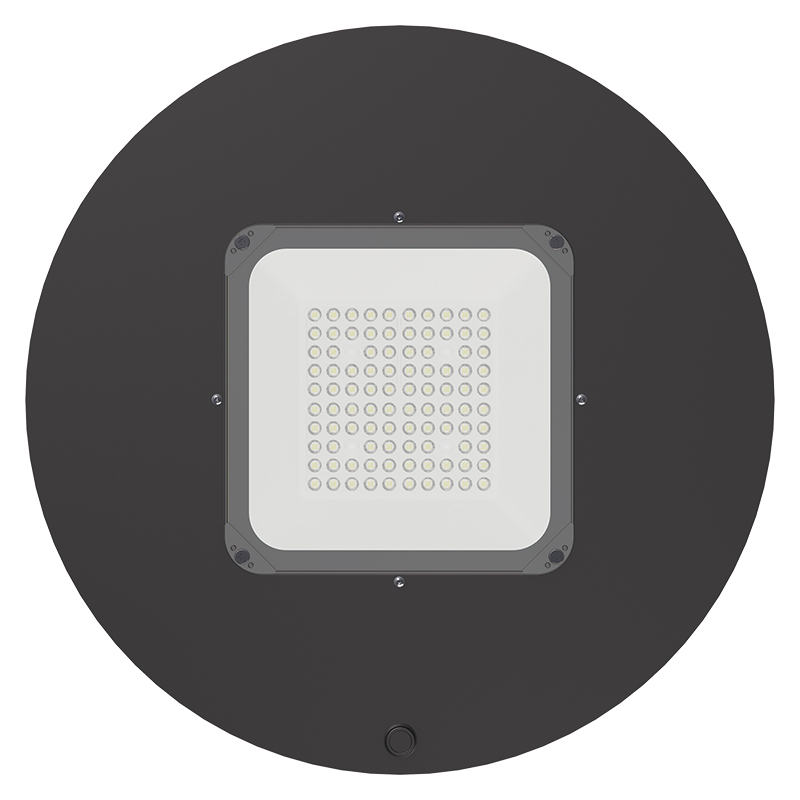

30‑120W LED Vintage Street Light Retrofit Module Kit Bat‑wing Light Distribution IP66 For Urban Road & Heritage Building Lighting Project
Floodlight
BPL‑SL‑M multifunctional vintage LED retrofit kit enables zero‑modification upgrade for traditional lanterns without damaging original lamp structures. It supports street‑light and flood‑light dual‑mode switching with optional accessories. Three driver solutions cover 30V‑120W. Compatible with square & round adapter plates. IP66 protection, bat‑wing optics and 100000‑hour L70 lifespan suit heritage renovation and various outdoor lighting projects.
- ⭐ Zero‑modification quick retrofit solution
- ⭐ Street‑light & flood‑light dual‑mode switch
- ⭐ Three optional driver solution selections
Specifications
- Application Scenarios
- Indoor
- Multifunctional Traditional LED Retrofit Kit
- Square Adapter Plate
KEY FEATURES
Adopts zero‑modification retrofit design, no cutting to original housing, protects historic lantern’s original structural integrity during upgrade.
Single‑unit replacement takes less than 10 minutes, greatly shortens on‑site construction time and reduces project schedule risks for renovation work.
Realizes street‑light and flood‑light dual‑mode switch, only needs matching U‑bracket to finish mode conversion within merely 5 minutes.

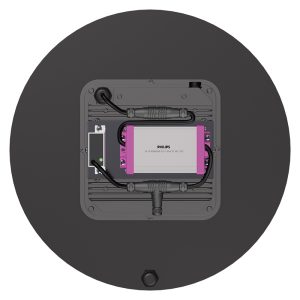

Provides three mature driver solutions to cover 30V‑120W power range for different space, power supply and budget project requirements.

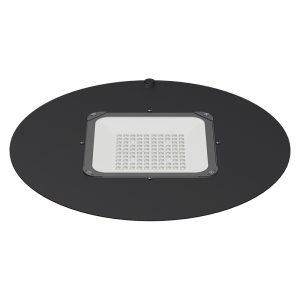

Compatible with both square and round adapter plates, fits old lamps of most manufacturers and expands applicable retrofitting scenarios largely.
APPLICATIONS
Historic vintage lantern renovation outdoor lighting projects
Urban roadway and high‑mast road illumination applications
Building facade and park landscape supplementary lighting
TECHNICAL SPECIFICATIONS
| Title | 30‑120W LED Vintage Street Light Retrofit Module Kit Bat‑wing Light Distribution IP66 For Urban Road & Heritage Building Lighting Project |
|---|---|
| Rated Voltage | AC 100-240V/277V50/60Hz |
| LED Driver | Philips (Standard) / Other brands optional |
| Power Factor | >0.95 |
| THD | 70 (Standard)/Ra>80 |
| Color Temperature (CCT) | 1800K,2200K,2700K,3000K,4000K,5000K,5700K,6500K |
| Materials | High-pressure die-cast aluminum, tempered glass, UV-stabilized polycarbonate |
|---|---|
| Housing Color | Black (Standard)/Custom colors available |
| Operating Environment | -40°C~ 50°C, 10% ~ 90% RH (Relative Humidity) |
| Lifetime at ℃ Ambient Temperature | >100,000h |
| Impact Protection Rating | IK08 |
| Mounting Kit | Round Kit (400mm) / Square Kit (400 X400mm); Custom shape & size available |
Photometric Parameters
Click to enlarge
DOWNLOADS
FAQ
Q1: Does BPL‑SL‑M need to cut original lamp housing during retrofit?
A1: No, it adopts zero‑modification design. Only remove old light source and fix module without housing cutting.
Q2: What adapters are supported for this retrofit module kit?
A2: It supports both square adapter plate and round adapter plate for different vintage lantern housings.
Q3: What is the L70 rated service life of BPL‑SL‑M module?
A3: Its L70 lifespan can reach 100000 hours under 25℃ normal ambient working conditions.
