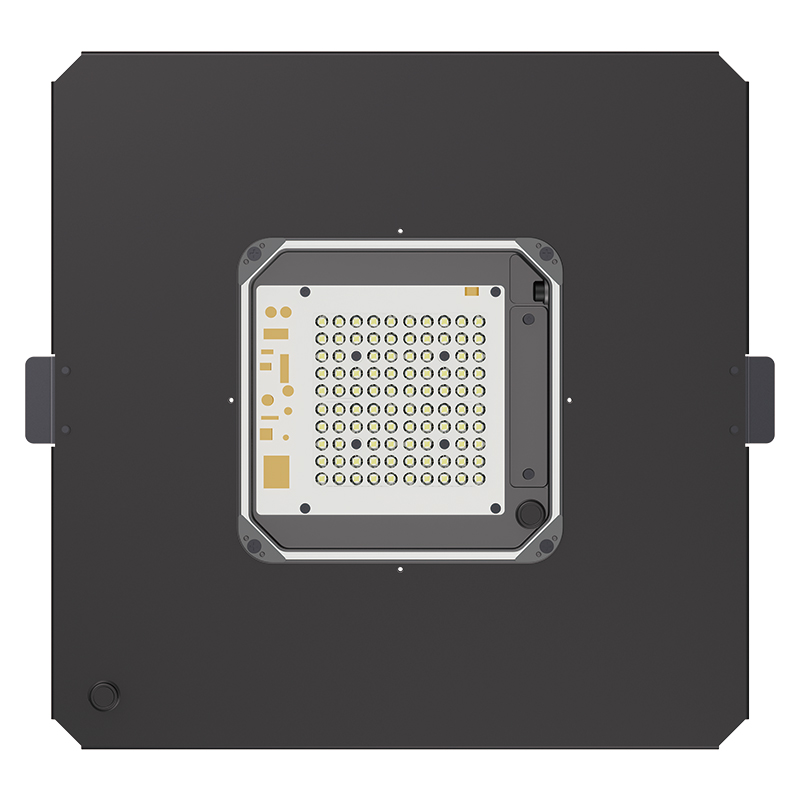

Driver‑free Linear IC LED Retrofit Module BPL‑SL‑M Cost‑Effective For Vibration‑Prone Vintage Lantern Upgrade
Floodlight
BPL‑SL‑M driver‑free linear IC retrofit kit removes transformers and large electrolytic capacitors for excellent anti‑vibration capability. Wide‑voltage, flicker‑free and cost‑effective, it supports stepless dimming. Zero‑modification installation fits square or round old lantern housings. It switches between street‑light and flood‑light modes, well‑suited for vibration‑prone historic‑building lighting renovation scenarios.
- ⭐ Excellent anti‑vibration IC‑type solution
- ⭐ Support DALI & 1‑10V dimming function
- ⭐ Restore warm incandescent‑style lighting
Specifications
- Application Scenarios
- Indoor
- Multifunctional Traditional LED Retrofit Kit
- Driver‑free Linear IC +Square Adapter Plate
KEY FEATURES
Equipped with standard 10kV surge protection (optional 20kV), ensures stable operation under thunder‑storm and lightning‑prone outdoor sites.
Delivers up to 100000‑hour L70 service life, makes maintenance cycle far longer than conventional sodium‑vapor lamps.
Restores warm incandescent‑like light texture, prevents cold white light from destroying visual style of heritage and vintage‑style buildings.
Built‑in driver version realizes all‑in‑one integration, reduces external wiring workload for lamps with sufficient inner installation space.
Built‑in driver maintains PF＞0.95, comes with over‑voltage and over‑current protection for stable and safe long‑time outdoor operation.
APPLICATIONS
Vintage lantern energy‑saving outdoor renovation projects
Urban roadside heritage‑style street lighting upgrade
Park landscape and building facade lighting retrofit
TECHNICAL SPECIFICATIONS
| Title | Driver‑free Linear IC LED Retrofit Module BPL‑SL‑M Cost‑Effective For Vibration‑Prone Vintage Lantern Upgrade |
|---|---|
| Rated Voltage | AC 100-240V/277V50/60Hz |
| LED Driver | Philips (Standard) / Other brands optional |
| Power Factor | >0.95 |
| THD | 70 (Standard)/Ra>80 |
| Color Temperature (CCT) | 1800K,2200K,2700K,3000K,4000K,5000K,5700K,6500K |
| Materials | High-pressure die-cast aluminum, tempered glass, UV-stabilized polycarbonate |
|---|---|
| Housing Color | Black (Standard)/Custom colors available |
| Operating Environment | -40°C~ 50°C, 10% ~ 90% RH (Relative Humidity) |
| Lifetime at ℃ Ambient Temperature | >100,000h |
| Impact Protection Rating | IK08 |
| Mounting Kit | Round Kit (400mm) / Square Kit (400 X400mm); Custom shape & size available |

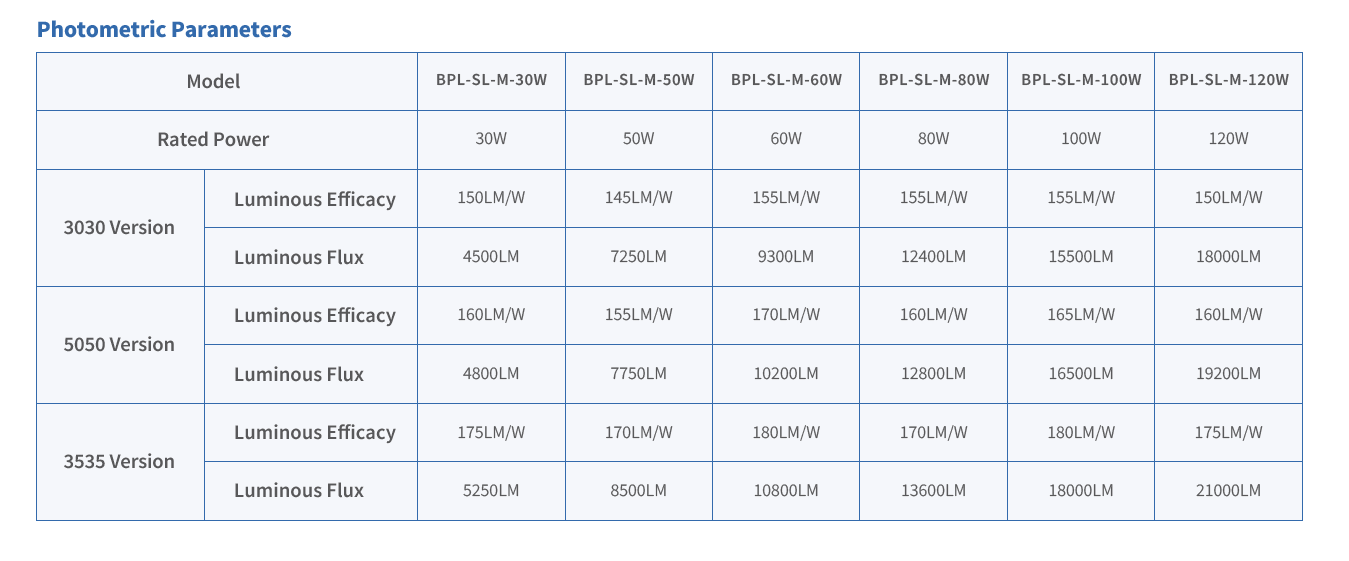

Photometric Parameters
Click to enlarge
DOWNLOADS
FAQ
Q1: What is the key advantage of driver‑free linear IC solution?
A1: It removes transformer and large capacitors, delivering excellent anti‑vibration performance for vibration‑prone sites.
Q2: Does driver‑free linear IC module support dimming function?
A2: Yes, it supports stepless 0‑100% dimming when matched with dedicated linear dimmer.
Q3: What cost benefit can driver‑free IC solution bring?
A3: It can reduce overall project cost by over 30% compared with conventional LED retrofit solutions.
