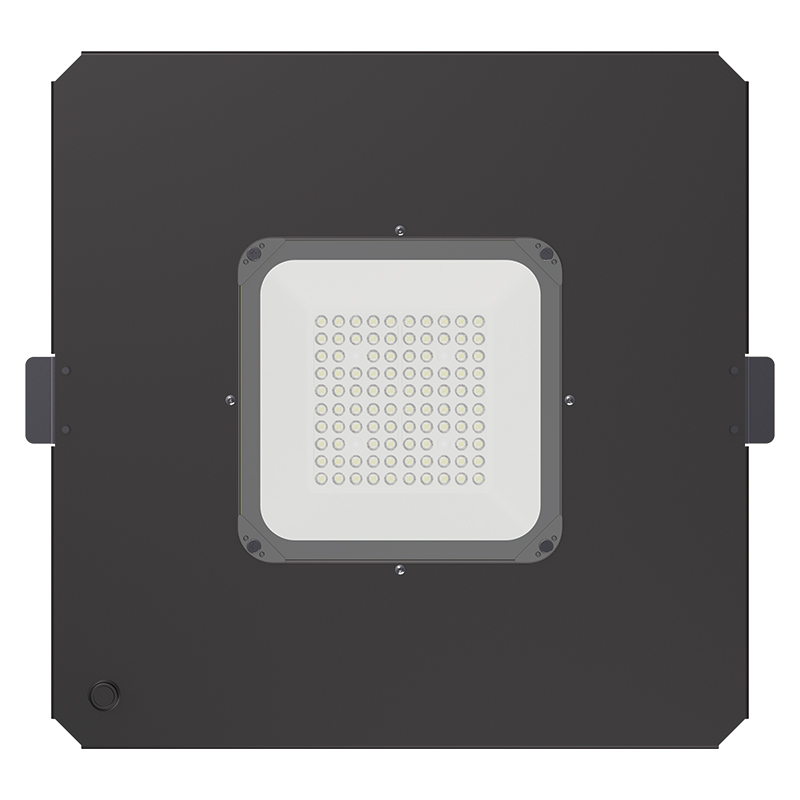

BPL‑SL‑M Multifunctional LED Retrofit Kit Zero‑Modification Vintage Lantern Module Street Light Floodlight Dual‑Mode IP66 For Historic Building Renovation
Floodlight
BPL‑SL‑M is a multifunctional vintage LED retrofit module kit for old‑lantern renovation. It supports zero‑modification quick installation and dual‑mode switch between street‑light and flood‑light. Three driver solutions are available, compatible with square & round adapter plates. IP66 rating, bat‑wing light distribution and 100000‑hour L70 lifespan balance heritage preservation and modern high‑efficiency outdoor lighting.
- ⭐ Zero‑modification fast retrofitting
- ⭐ Street‑light & flood‑light dual‑mode
- ⭐ Square & round adapter compatibility
Specifications
- Application Scenarios
- Indoor
- Multifunctional Traditional LED Retrofit Kit
- Round Adapter Plate
KEY FEATURES
Zero‑modification retrofit fits original vintage lantern housings. Single‑unit replacement completes within 10 minutes without cutting or damaging historic lamp structures.
Dual‑mode design switches between street‑light and flood‑light with optional U‑bracket. Conversion finishes in 5 min, lowering inventory and custom‑development costs greatly.

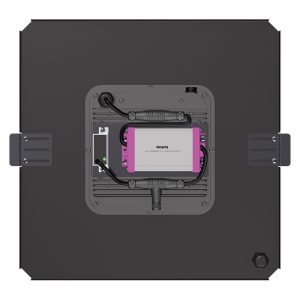

Three driver options (built‑in, external, driver‑free linear IC) cover 30V‑120W, matching diverse demands for space, centralized power supply and project budgets.
Bat‑wing optical design improves road uniformity, suppresses glare and light spillage, solving “bright under lamp, dark between lamps” for premium road lighting effect.
IP66 waterproof protection plus 10 kV surge protection and 100000‑hour L70 lifetime deliver stable outdoor performance and greatly extend maintenance intervals.
APPLICATIONS
Historic vintage lantern renovation outdoor lighting projects
Urban roadway and high‑mast road illumination applications
Building facade and park landscape supplementary lighting
TECHNICAL SPECIFICATIONS
| Title | BPL‑SL‑M Multifunctional LED Retrofit Kit Zero‑Modification Vintage Lantern Module Street Light Floodlight Dual‑Mode IP66 For Historic Building Renovation |
|---|---|
| Rated Voltage | AC 100-240V/277V50/60Hz |
| LED Driver | Philips (Standard) / Other brands optional |
| Power Factor | >0.95 |
| THD | 70 (Standard)/Ra>80 |
| Color Temperature (CCT) | 1800K,2200K,2700K,3000K,4000K,5000K,5700K,6500K |
| Materials | High-pressure die-cast aluminum, tempered glass, UV-stabilized polycarbonate |
|---|---|
| Housing Color | Black (Standard)/Custom colors available |
| Operating Environment | -40°C~ 50°C, 10% ~ 90% RH (Relative Humidity) |
| Lifetime at ℃ Ambient Temperature | >100,000h |
| Impact Protection Rating | IK08 |
| Mounting Kit | Round Kit (400mm) / Square Kit (400 X400mm); Custom shape & size available |
Photometric Parameters
Click to enlarge
DOWNLOADS
FAQ
Q1: Can BPL‑SL‑M work for both street‑light and flood‑light modes?
A1: Yes, it supports dual‑mode switch. Flood‑light conversion takes only 5 minutes with matched U‑bracket.
Q2: What adapter plate forms does this retrofit kit support?
A2: It supports both square adapter plate and round adapter plate for different old‑lamp housings.
Q3: What is the L70 rated lifetime of BPL‑SL‑M module kit?
A3: It achieves 100000‑hour L70 lifetime under 25℃ ambient working conditions.
