Street lights, smart street lights, high-mast lights and park landscape lights are exposed to sunlight, rain, salt spray and extreme temperature swings all year round. The inner cavity of light poles is the critical zone for cable branching, power distribution and earthing protection. Many lighting projects suffer frequent lamp outages, short circuits and lightning-caused damage after commissioning. Many contractors blame LED drivers or lamps, but the root cause often lies in poor internal wiring inside light poles.

In many construction practices, workers simply twist bare wires and wrap them with insulating tape inside the pole, without protective enclosures or standardized wiring components. Moisture invades wire joints, copper conductors corrode, and cables cannot be reused during later maintenance or upgrades, leading to high ongoing service costs.

How can we solve the combined challenges of cable branching, environmental protection, earthing and future renovation inside light poles? Why are dedicated pole-mount junction boxes essential for outdoor lighting systems? Below we analyze the problems first, then present the complete solution.

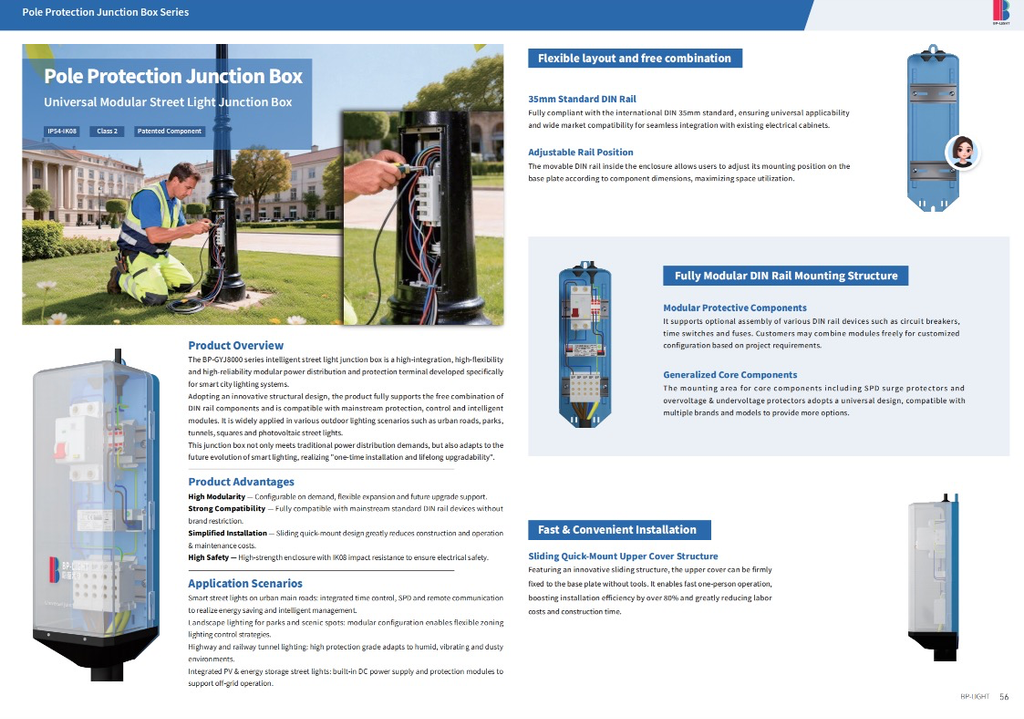

**Fig. 1 BP-GYJ8000 Series Pole Protection Junction Box (IP54 / IK08 / Class 2)**

2 Problem Analysis: Four Major Hidden Risks of Traditional Wiring

2.1 Unreliable Manual Twisted-Wire Connections

Working space inside poles is very limited. When workers twist conductors and wrap tape, UV radiation quickly ages the tape. Rainwater, condensation and coastal salt spray penetrate joints, corrode copper and raise contact resistance. Overheating, loose contact, power failure and even fire hazards may occur. Wiring quality fully depends on workers’ skill, and consistent project quality cannot be guaranteed.

2.2 No Enclosure Protection for Exposed Components

Light poles are not hermetically sealed. Condensation builds up due to day-night temperature differences. Humidity and dust erode bare joints and electrical parts, accelerating component aging and shortening the whole lighting system service life.

2.3 Lack of Standardized Terminals for Branching and Earthing

Street lighting systems require reliable connection for Live, Neutral and PE earth wires. Manual field twisting cannot guarantee stable earthing performance. For high-power high-mast lighting, simple twisted joints cannot carry heavy current safely and tend to overheat.

2.4 Difficult Upgrades for Smart Street-Light Retrofits

When adding SPD surge protectors, smart gateways or time switches later, traditional poles have no standard mounting base. Rewiring and cable-cutting are required, bringing high labour and material costs.

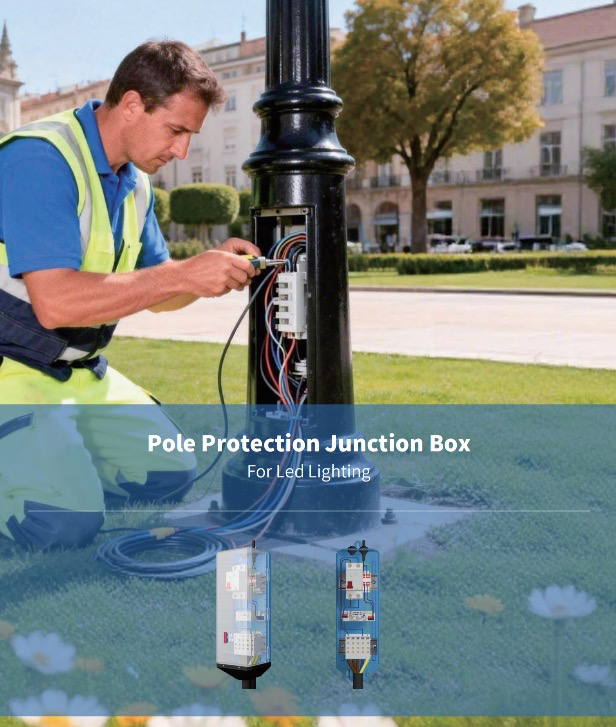

**Fig. 2 On-site installation: a worker fits the junction box and terminals inside a light pole**

3 Solution: BP-GYJ8000 Pole Protection Junction Box

3.1 Product Overview: Integrated Modular Pole-Mount Junction Box

The BP-GYJ8000 Series intelligent street light junction box is a high-integration, high-flexibility and high-reliability modular power distribution and protection terminal specially developed for smart city lighting systems, installed directly inside light-pole cavities. The enclosure comes with a built-in standard 35mm DIN rail for mounting MCB circuit breakers, RCD leakage protection, SPD surge protectors, as well as BPC series DIN rail terminal blocks. This integrated setup completes cable branching, transition and earthing protection, replacing unreliable manual wire-twisting on site.

The enclosure reaches IP54 ingress-protection rating, IK08 impact resistance and Class 2 insulation. Adopting innovative structural design, it fully supports free combination of DIN rail components and is compatible with mainstream protection, control and intelligent modules, widely applied in urban roads, parks, tunnels, squares and PV street lights, achieving “one-time installation and lifelong upgradability”.

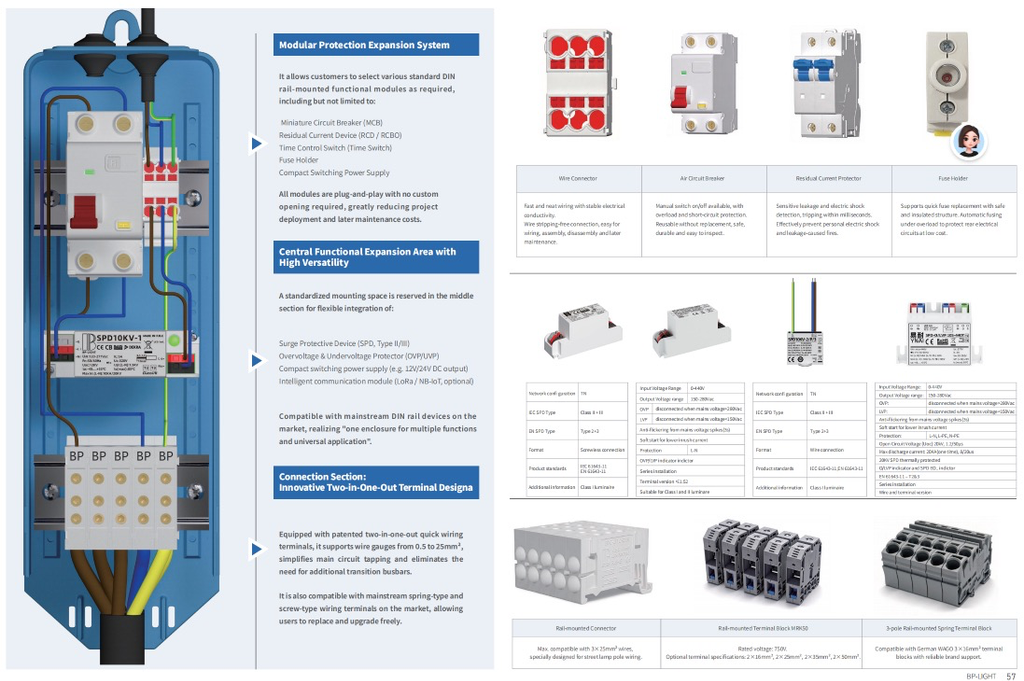

Fig. 3 Modular Protection Expansion System: freely selectable breakers, RCD, time switches, power supplies and smart communication modules

3.2 Modular & Freely Expandable

A standardized mounting space is reserved in the central section for flexible integration of SPD (Type II/III) surge protectors, overvoltage/undervoltage protectors, 12V/24V DC switching power supplies and LoRa/NB-IoT intelligent communication modules, compatible with mainstream DIN rail devices with no brand restrictions – “one enclosure for multiple functions”. The 35mm standard DIN rail position is adjustable to maximize space utilization.

3.3 Fast Installation to Cut Labour Cost

Featuring an innovative sliding quick-mount structure, the upper cover can be firmly fixed to the base plate without tools. It enables fast one-person operation, boosting installation efficiency by over 80% and greatly reducing labour costs and construction time.

3.4 High Safety Protection for Harsh Outdoor Environments

The high-strength enclosure provides IP54 dust & water resistance and IK08 impact resistance, withstanding humidity, dust, salt spray and vibration to protect internal electric parts, complying with municipal lighting acceptance standards.

**Fig. 3 Modular Protection Expansion System: freely selectable breakers, RCD, time switches, power supplies and smart communication modules**

4 BPC Series DIN Rail Terminal Blocks for Reliable Branching & Earthing

BPC series DIN rail terminal blocks clip onto the DIN rail inside the junction box to complete main-circuit tapping, transition and earthing protection. The connection section adopts patented two-in-one-out quick wiring terminals, supporting cables from 0.5mm² to 25mm², simplifying main-circuit tapping and eliminating additional transition busbars. It is also compatible with mainstream spring-type and screw-type DIN rail terminals for easy replacement and upgrade.

Four BPC models cover cable requirements from standard street lights to heavy-duty high-mast lamps. Selection parameters are shown in Table 1.

Table 1 BPC Series DIN Rail Terminal Block Selection

Model	Poles	Conductor Size	Rated Current (IEC)	Thread / Torque
BPC-2I10-DIN-10	2	10mm²	57A	M4 / 1.5N·m
BPC-2I10-DIN-25	2	25mm²	101A	M6 / 3.0N·m
BPC-3I10-DIN-10	3	10mm²	57A	M4 / 1.5N·m
BPC-3I10-DIN-25	3	25mm²	101A	M6 / 3.0N·m

BPC-2I10-DIN-10 suits single-phase power transition for medium-low power lamps; BPC-2I10-DIN-25 is for high-power 2-way distribution; BPC-3I10-DIN-10 supports Live-Neutral-PE connection for mandatory earthing protection; BPC-3I10-DIN-25 is widely used for high-power 3-way distribution in high-mast lights and multi-lamp centralized power supply.

4.1 Material & Safety Certifications

The conductive part of BPC terminals is made of full copper with low resistance and high current-carrying capacity. The housing is PA66 flame-retardant engineering plastic with UL94-V0 rating, operating temperature range -40℃~110℃, withstanding extreme hot and cold climates. Standard screw tightening torque: M4 1.5N·m; M6 3.0N·m. It accepts solid and stranded conductors with stripping length of only 10–30mm. During maintenance, cables can be released by loosening screws without cutting wires; both terminals and cables are reusable. The products comply with IEC/EN 60947-7-1 and UL1059 standards.

5 Real-World Application Scenarios

Smart street lights on urban main roads: SPD surge protection, time switch and communication module inside the box; BPC-3I10-DIN-10 for L-N-PE connection;

Landscape lighting for parks & squares: BPC-2I10-DIN-10 for medium-low-power lamp branching;

Highway & tunnel high-mast lighting: BPC-3I10-DIN-25 for 25mm² heavy-current cables;

PV & energy-storage integrated street lights: built-in DC power distribution and protection modules for off-grid operation, with complete junction-box-and-terminal-block set.

6 Frequently Asked Questions

Q: Light poles are metal, do I still need a separate junction box?

A: Light-pole shells only offer physical shielding, not sealed protection. Condensation and water may enter pole cavities. The junction box delivers independent insulated protection plus a DIN mounting rail for BPC terminals, breakers and SPD devices to achieve standardized branching and protection.

Q: Can I fit BPC terminals directly inside the pole without a junction box?

A: Not recommended. Exposed terminals inside pole cavities will suffer humidity and dust erosion, creating long-term electrical safety risks. Terminal blocks should always be housed inside protective enclosures.

7 Conclusion

Using dedicated pole-mount protection junction boxes paired with BPC-series DIN rail terminal blocks replaces unreliable manual wire-twisting with standardized modular components. It addresses common field pain points: oxidation-caused loose contacts, insufficient protection, poor earthing and difficult later-stage renovation.

The BP-GYJ8000 junction box provides protective housing plus a DIN rail mounting base. Four BPC terminal-block variants support 2-pole/3-pole configurations and 10mm²/25mm² cables for reliable branching and earthing. This all-in-one solution balances installation efficiency, electrical safety and maintainability, making it a trusted internal-wiring choice for modern LED street-light and smart-lighting projects.

Learn more: Please visit the【Pole Protection Junction Box product page】and【BPC DIN Rail Terminal Blocks product page】
.

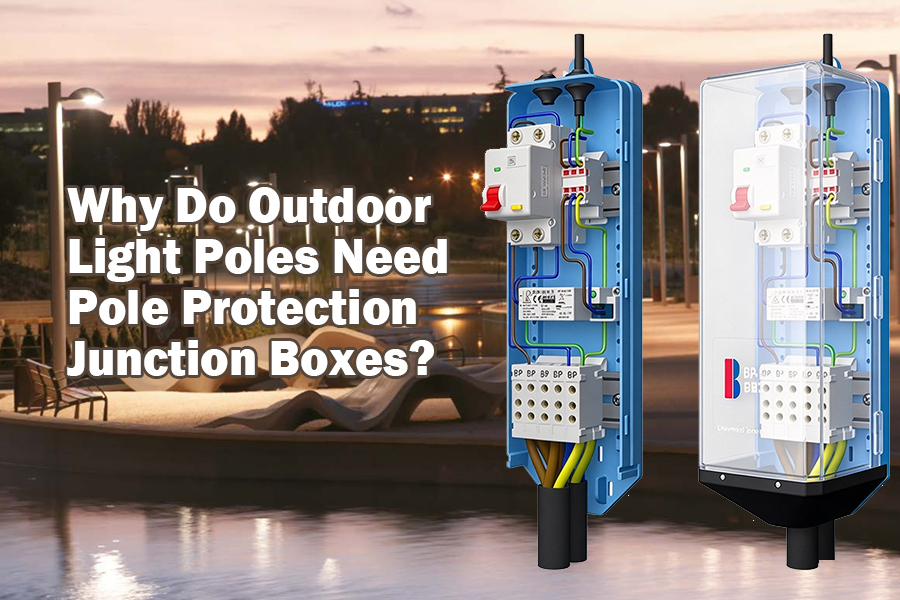

Why Do Outdoor Light Poles Need Pole Protection Junction Boxes?
