Traditional street light and garden light pole wiring has long been plagued by inherent drawbacks, including disorganized internal wiring, fixed protection configurations, and inefficient on-site installation. To resolve these universal industry pain points for outdoor lighting projects, we have independently developed a modular dedicated junction box for light poles.
Crafted with high-strength PA66 integrated injection molding and equipped with a standard 35mm DIN rail structure, this junction box supports flexible combination of various electrical protection components. The innovative plug-in input terminal design perfectly adapts to the construction standards of smart street light projects, accommodates large cross-section cables, and provides a professional and reliable in-pole power distribution solution for outdoor lighting systems.
2. Common Industry Pain Points of Traditional Street Light Wiring
- The narrow internal space of light poles leads to scattered installation of circuit breakers, SPD surge protectors and protective devices, resulting in messy and unstandardized wiring layout.
- Conventional fixed structural designs cannot meet customized protection requirements for different engineering projects and client standards.
- Traditional hard-wired terminals cause slow on-site wiring, high connection error rates, and inconvenient inspection and component replacement during later maintenance.
- Ordinary plastic enclosures deliver poor UV resistance and aging resistance, prone to damage under long-term outdoor exposure.
- Conventional terminals have limited cable capacity, failing to support power supply demands of high-power smart multi-functional light poles.
3. Core Design Concept & Material Advantages
3.1 PA66 High-Performance Engineering Plastic Construction
The entire junction box base is integrally injection molded with premium PA66 engineering plastic. This material boasts outstanding mechanical strength, strong impact resistance, excellent UV resistance, wide temperature tolerance and superior anti-aging performance.
It stably adapts to harsh outdoor working conditions including intense sunlight, heavy rain, frost and strong wind, effectively protecting internal electrical components and extending the overall service life of the lighting power distribution system.
3.2 Standard 35mm DIN Rail Modular Structure

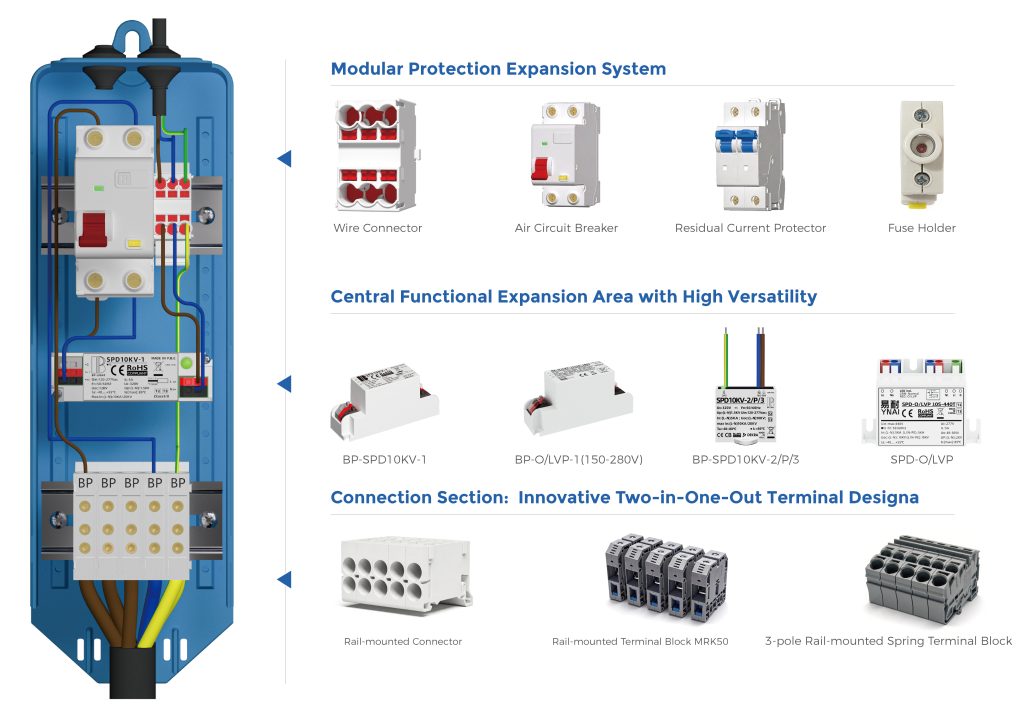

Built with a universal 35mm DIN rail, the junction box supports full modular assembly. Users can freely install and match various electrical components according to actual project demands, including MCB circuit breakers, SPD surge protective devices, over and under voltage protectors, residual current leakage protectors, and fuses.
This flexible design realizes personalized configuration from basic power distribution to comprehensive electrical protection, fully meeting diverse standard requirements of global outdoor lighting projects.
4. Key Product Features & Functional Highlights
4.1 Innovative Plug-In Quick-Connect Input Terminals
Different from traditional fixed hard-wired terminals, our junction box adopts upgraded plug-in quick-connect terminals at the input end, fully matching the mainstream wiring specifications and construction habits of global street light engineering.
The plug-and-play structure greatly simplifies on-site wiring procedures, effectively reduces wiring faults and connection errors, significantly improves construction efficiency, and facilitates rapid maintenance and component replacement in later stages.
4.2 Ultra-Large Cable Compatibility (Max 35mm²)
Optimized terminal structure supports cables up to 35mm² cross-section, capable of bearing high-current loads. It perfectly adapts to high-power smart light poles, solar street lights, and multi-device integrated lighting poles, thoroughly solving the load capacity shortage problem of traditional light pole junction boxes.
4.3 Fully Customizable Electrical Protection Configuration
According to different project standards and client requirements, users can freely combine single or complete protection solutions, including surge protection, leakage protection, over-voltage & under-voltage protection, and short-circuit protection. No redundant configuration is required, helping clients save project costs while ensuring electrical safety.
- Municipal smart street lights and multi-functional integrated light pole projects
- Residential garden lights and landscape lighting pole engineering
- Solar street lights and photovoltaic outdoor lighting systems
- Outdoor lighting projects for parks, campuses, industrial parks and urban roads
6. Commercial & Engineering Value
- Standardized Integrated Design: Integrates power distribution and electrical protection in one compact enclosure, standardizing internal pole wiring and improving the overall regularity and safety of lighting projects.
- Global Versatile Customization: Modular DIN rail design adapts to diverse electrical standards and project requirements across different countries and regions.
- Superior Outdoor Durability: High-quality PA66 weather-resistant material effectively reduces outdoor aging failures and lowers after-sales maintenance costs.
- Construction Cost Reduction: Efficient plug-in connection structure saves construction time and greatly reduces labor costs for on-site installation.
- High Universal Compatibility: 35mm² large cable compatibility covers almost all high-power outdoor lighting application scenarios.
This PA66 modular light pole junction box effectively solves the core pain points of traditional street light wiring, power distribution and electrical protection. Featuring flexible DIN rail modular configuration, innovative plug-in quick connection, and 35mm² large cable compatibility, it provides global lighting manufacturers and engineering integrators with a standardized, customizable and high-efficiency in-pole power distribution and protection solution.
As an upgraded professional accessory for smart street light and garden light projects, it balances safety, durability and cost-effectiveness, making it the ideal choice for modern outdoor lighting engineering.
Q1: What is the maximum cable size this junction box can support?
A1: This modular junction box supports cables with a cross-section of up to 35mm², which is fully applicable to high-power outdoor smart light poles and large-load lighting equipment.
Q2: What electrical components can be installed on the built-in DIN rail?
A2: The standard 35mm DIN rail supports all conventional rail-mounted electrical components, including MCB circuit breakers, SPD surge protectors, over/under voltage protectors, leakage switches, and fuses.
Q3: Why is PA66 material chosen for outdoor light pole junction boxes?
A3: PA66 engineering plastic features excellent UV resistance, anti-aging performance, impact resistance and wide temperature adaptability. It can withstand long-term outdoor harsh environments, ensuring stable and long-term operation of internal electrical systems.
