1. Application & Relevant Standards
For municipal street lights, garden lights and other outdoor lighting projects, the inspection compartment at the bottom of lamp poles is the core area for cable connection. We are a professional manufacturer based in China and can provide you with multiple solutions. Outdoor lighting systems require safe and reliable electrical connections, convenient on-site maintenance and support for integrated protection components. Applicable standards include GB 7000.1 (Luminaires safety standard), GB 50617 (Code for electrical construction of buildings), and IEC 60715 (International standard for 35mm DIN rail).
Our Pole Protection Junction Box is a universal modular street light junction box with IP54, IK08 and Class 2 rating. It is a high-integration, high-flexibility modular power distribution and protection terminal specially developed for smart street lighting systems. There are many types of wiring products on the market, including outdoor connection box, junction boxes, small junction box, lighting junction box, slim junction box, light electrical box, plastic junction box, junction box connectors, junction box with connector. Customers also pay close attention to junction box price during selection. Traditional simple wiring methods struggle to achieve modular component mounting, standardized cable termination and convenient maintenance within the confined space inside lamp poles. The 35mm DIN rail is a globally accepted mounting base. This Pole Protection Junction Box comes with adjustable 35mm DIN rail inside, ideal for compact electrical assembly inside lamp poles. We have the matching BPC-2I10-DIN-25 DIN rail 2-in 1-out terminal block, specially designed for daisy-chain street lighting systems.
2. Description of Existing Problems
Outdoor street lights and garden lights commonly use daisy-chain power supply. Traditional pole wiring solutions have obvious drawbacks:
1. Limited internal space in lamp poles. Without unified mounting base, components such as MCB, LED SPD, thermal fuses and LED drivers are placed loosely with messy wiring. Even if small junction box or slim junction box is adopted, it is hard to install various electrical accessories flexibly.
2. The circuit adopts daisy-chain topology: power comes from the previous pole, one branch feeds the local luminaire and another continues power transmission to the next pole, known as 2-in 1-out connection. Traditional hand-twisted joints wrapped with insulating tape cannot reliably realize this tapping. The quality of connection heavily depends on workers’ experience. Ordinary junction box connectors cannot meet the power demand of daisy-chain power supply.
3. 25mm² solid single-core cables are often used in projects. Ordinary connectors have insufficient clamping force. Exposed to large day-night temperature fluctuation and continuous road vibration, joints tend to loosen, contact resistance rises and thermal aging occurs, which may lead to electric leakage hazards. Common plastic junction box or light electrical box only provides basic storage without modular mounting capability.
4. Poor maintainability. Component replacement requires re-stripping cables and re-making joints, leading to long repair downtime. Adding surge or overcurrent protection during project renovation is difficult. Many lighting junction box and outdoor connection box only come with fixed terminals, and users cannot add or remove protection devices freely. When comparing junction box price, customers often overlook long-term maintenance cost.
3. Root Cause Analysis
The lamp pole forms a semi-enclosed narrow cavity, subject to condensation, temperature cycling and vibration from traffic.
1. Lack of standardized mounting carrier. Most junction boxes on the market are simple housings. Adding or removing protection devices later is inconvenient.
2. Inconsistent field wiring quality. Hand-made splices are non-standard. Joint quality varies between installers. Oxidation and loosening may occur under long-term outdoor conditions, resulting in overheating and pole electrification risk. Simply using junction box with connector cannot flexibly match different project protection configurations.
3. Difficulty meeting daisy-chain wiring requirements. Street light daisy-chain topology requires 2-in 1-out tapping. Ordinary connectors cannot reliably clamp 25mm² large-size solid conductors.
4. Municipal lighting requires fast repair to restore power supply. Traditional re-splicing method increases outage time and maintenance cost. Solely comparing junction box price without evaluating performance will bring extra cost in later project operation.
4. Solution: Pole Protection Junction Box (35mm DIN Rail Junction Box) with BPC-2I10-DIN-25 2-in 1-out Terminal Block
We are a professional manufacturer based in China and can provide you with multiple solutions. This Pole Protection Junction Box, the universal modular street light 35mm DIN rail junction box, is an upgraded lighting junction box and outdoor connection box, solving the above challenges. It is equipped with adjustable 35mm DIN rail inside. Our BPC-2I10-DIN-25 DIN rail 2-in 1-out terminal block can be directly clipped onto the DIN rail, serving as the core junction box connectors of this system.
1. Flexible modular installation & free combination

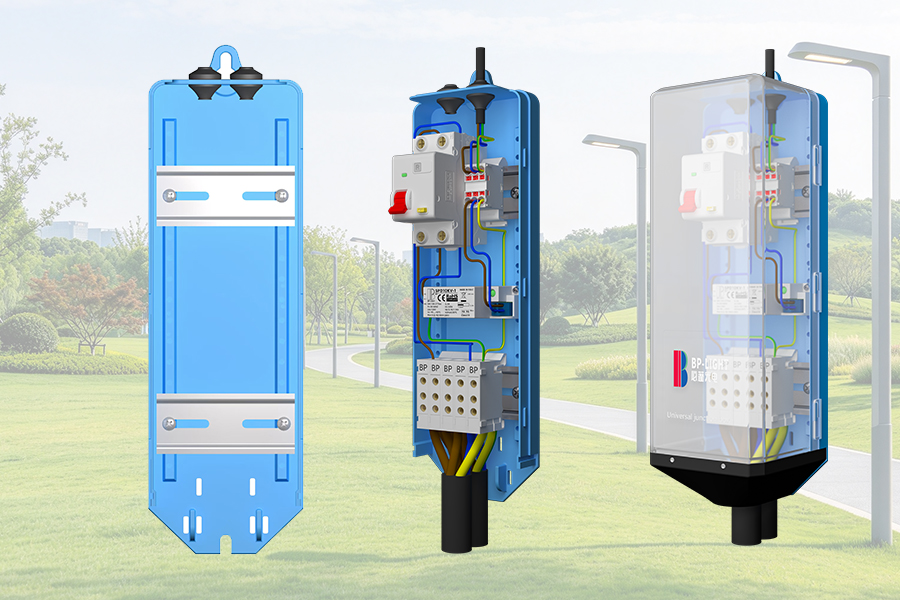

The built-in 35mm DIN rail fully complies with international DIN 35 standard. The rail bracket can be adjusted on the base plate to maximize space utilization according to component dimensions. The built-in 35mm rail allows snap-in mounting of various accessories: MCB circuit breakers, LED SPD surge protectors, thermal fuses, LED drivers and other electrical parts. Components can be freely added, removed and rearranged. Project upgrade only needs to mount extra devices on rail without replacing the junction box housing. It shows great advantages in expandability compared with ordinary small junction box and slim junction box. The junction box adopts an innovative sliding quick-mount upper cover structure. The cover can be firmly fixed on the base without tools, enabling fast one-person operation. It improves installation efficiency by over 80% and greatly reduces labor and construction cost.
2. BPC-2I10-DIN-25 terminal block for 2-in 1-out daisy-chain wiring
BPC-2I10-DIN-25 is a DIN rail mountable 2-in 1-out terminal block with screw connection method. It adopts full-copper conductors, featuring low resistance and high current carrying capacity. One incoming cable from the prior pole, one feed-through cable to the next pole, plus one branch cable for the luminaire on this pole. The terminal block accepts solid single-core conductors up to 25mm² with stable clamping performance for large-section municipal cables. As an integrated junction box with connector, it balances wiring stability and construction efficiency. The product complies with IEC/EN 60947-7-1 and UL 1059 standards, resistant to vibration and temperature cycling for harsh pole-side outdoor environments.
3. Simplified installation and maintenance
DIN rail components can be clipped on and off quickly. Combined with standardized wiring of BPC-2I10-DIN-25 terminal blocks, hand-twisted splices are eliminated and human error is reduced. Technicians can directly swap failed components during maintenance without re-making cable joints, significantly cutting construction and repair time. All components are housed neatly inside this high-strength plastic junction box, featuring IP54 protection and IK08 impact resistance. It fits into the narrow inspection chamber and complies with outdoor electrical safety requirements. When evaluating junction box price, its lower construction and maintenance cost is a key advantage.
Conclusion
The Pole Protection Junction Box with 35mm DIN rail is a high-performance lighting junction box and outdoor connection box. It integrates discrete electrical components onto standardized DIN rail. Equipped with BPC-2I10-DIN-25 2-in 1-out DIN rail terminal block, it meets the 2-in 1-out daisy-chain wiring requirement of street lights and garden lights and supports solid conductors up to 25mm². MCB, SPD, thermal fuse, LED driver and other accessories can be flexibly selected. Compared with regular junction boxes, small junction box, slim junction box, light electrical box and plastic junction box, this junction box with connector solution equipped with junction box connectors (BPC-2I10-DIN-25) adopts standardized assembly, reduces construction inconsistency and simplifies maintenance. We are a professional manufacturer based in China and can provide you with multiple solutions, making it a preferred wiring solution inside outdoor lamp poles.
