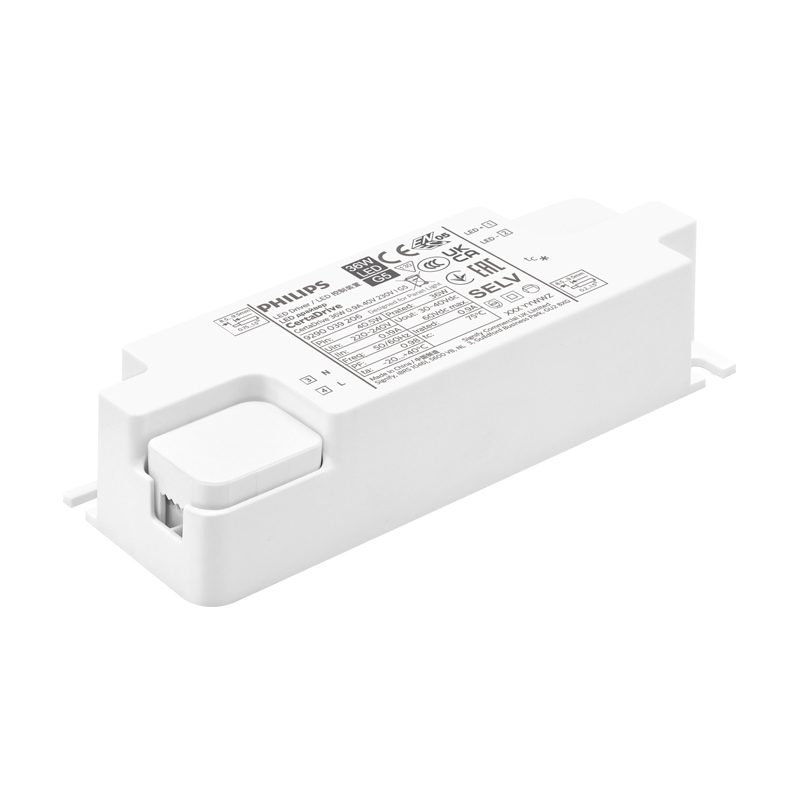

PHILIPS Linear CertaDrive isolated CertaDrive 42W 1.05A 40V 230V I G5
CertaDrive 42W 1.05A 40V 230V I G5
Single current LED drivers for essential lighting applications. CertaDrive LED panel drivers are designed to fulfill the market need for panel lighting with reliable performance. The new generation CertaDrive LED panel drivers offer basic specifications with specific current and voltage settings which are easy to use for high volume applications.
- β‘ 50,000 hours lifetime @Tc-life
- β‘ Low ripple output current (4%) Application
- β‘ Easy to design-in with single output current
Specifications
- Model
- 929003920780
- Application Scenarios
- Indoor
KEY FEATURES
50,000 hours lifetime @Tc-lifedesign-in
SELV output for simpler approval process and easy
Fast Time to Market
Low ripple output current (4%) Application
Various Vout/lout mix for high volume applications
Comfort for eyes and assurance of camera-friendly performance
Easy to design-in with single output current
Independent-version housing design for stand-alone installations
APPLICATIONS
Panel application for office and public areas
For luminaires of protection class II
TECHNICAL SPECIFICATIONS
| Title | PHILIPS Linear CertaDrive isolated CertaDrive 42W 1.05A 40V 230V I G5 |
|---|---|
| Input Voltage | 230V |
| Total Harmonic Distortion IEC (Max) | 0.2 |
| Power Consumption | 46.5 W |
| Output Current Ripple (Max) | 0.04 |
| Maximum Efficiency at Full Load | 0.895 |
| Output Current (Max) | 1050 mA |
| Output Current Tolerance (Max) | 0.05 |
| Power Factor (Fraction) | 0.98 |
| Open Circuit Voltage (DC) (Max) | 60V |
| Input current (AC) | 210 mA |
| Inrush Current Peak (Max) | 29.88A |
| Inrush Current Peak (Nom) | 29.88A |
| Output Power (Max) | 42W |
| Output Power (Nom) | 42W |
|---|---|
| Inrush Current Width to 50% of Peak | 109 us |
| Power Factor 100% Load (Max) | 0.98 |
| Energy Metering | No |
| Constant Current (CC) | TRUE |
| Constant Voltage (CV) | FALSE |
| Diagnostics | FALSE |
| Output Power (Min) | 31.5 W |
| Output Current (Min) | 1050 mA |
| Output Voltage (Max) | 40V |
| Output Voltage (Min) | 30V |
| Number of Products on MCB (16A Type B)(Max) | 36 |
| Protection class IEC | Safety class Il |
| Adjustable Output Current | No |
FAQ
Can I adjust brightness with this Philips led panel light driver?
No. It is a non-dimmable constant current led driver. This led panel light driver only provides fixed constant current output without dimming support.
Do you have stock for bulk wholesale of this Philips led panel light driver?
We maintain steady inventory for this non-dimmable constant current led driver. Flexible order quantity is supported for lighting factory OEM, engineering projects and distributor wholesale.
