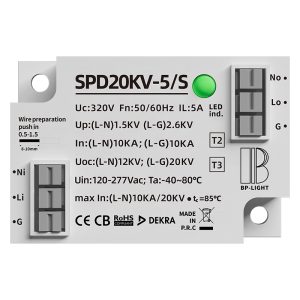

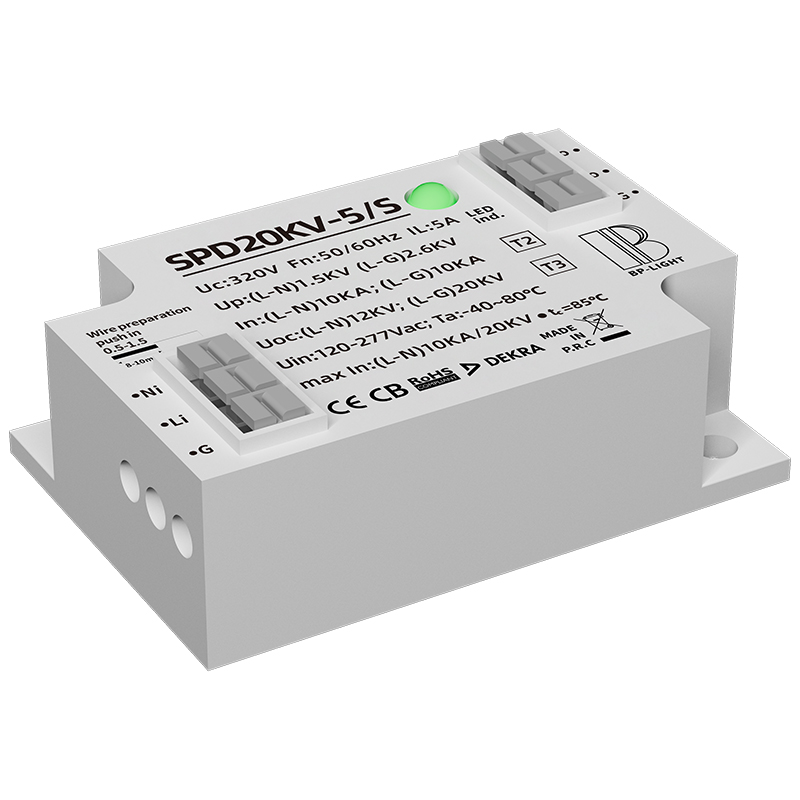

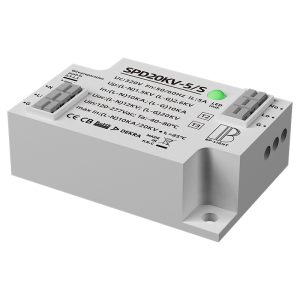

SPD Surge Protection Device Type 2+3 Surge Arrestor for Outdoor LED Street Light Flood Light Luminaires
BP-SPD20KV-5/S|LED Surge Protector
BP‑SPD20KV‑5/S is Type 2+3 surge protection device for Class I LED luminaires. It adopts PA66 flame‑retardant housing, IP54 enclosure, push‑in terminal connection. Max discharge current 20kA, with LED status indicator and dynamic thermal disconnection. Certified CE, CB, DEKRA, RoHS. Wide temp range -40~85°C, ideal for outdoor street lights, flood lights against transient surges.
- ⚡ Type 2+3 Combined SPD
- ⚡ 20kA Max Discharge Current
- ⚡ LED Working Indicator
Specifications
- Model
- BP-SPD20KV-5/S
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP20
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320/255
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5/2.5
Open circuit Voltage(L-N)[kV]：20
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Title | SPD Surge Protection Device Type 2+3 Surge Arrestor for Outdoor LED Street Light Flood Light Luminaires |
|---|---|
| Temperature range [°C] | -40... 85 |
| Indication System Type | LED |
| Insulating material | PA66 |
| Housing color | RAL9003 |
| Enclosure-IP | IP20 |
|---|---|
| Flammability class | UL94V-0 |
| Terminal connection | Push in(in and out) |
| Conductor cross section | 0.5...1.5mm² |
| Packaging Dimensions (LXW X H) [mm] | 60.5*40.5*21.3 |
DOWNLOADS
FAQ
Q1: What SPD type is BP‑SPD20KV‑5/S?
A1: It is EN Type 2+3 / IEC Class II+III surge protector for Class I luminaires.
Q2: What is its maximum discharge current?
A2: Max discharge current (8/20μs) reaches 20kA, nominal 10kA.
Q3: What certification does this SPD own?
A3: It has CE, CB, DEKRA and RoHS certificates, meets IEC 61643‑11 standard.
