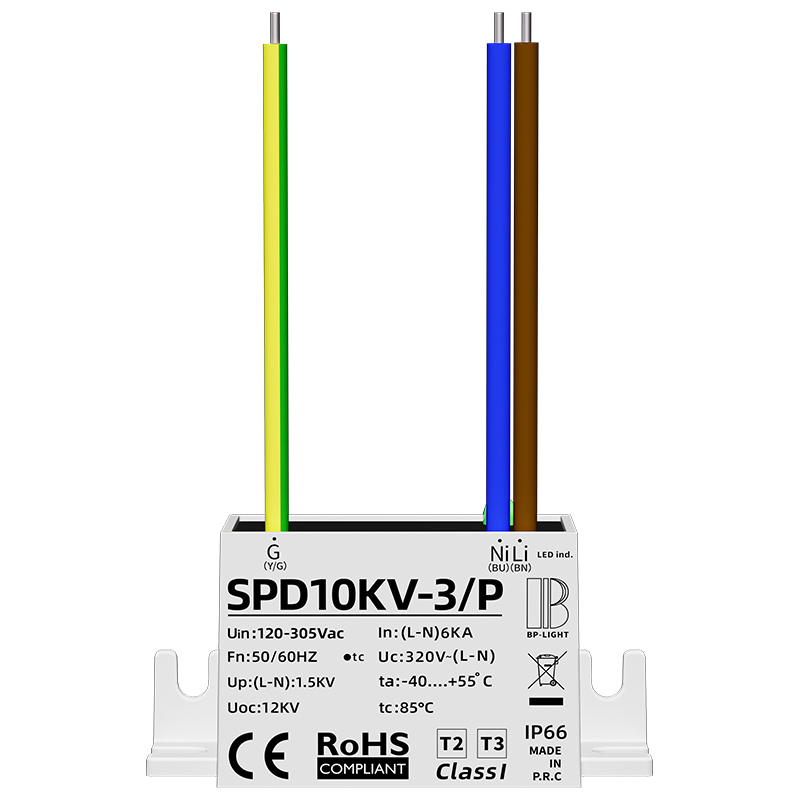

IEC 61643-11 / EN 61643-11 3-wire parallel 12kV 6kA surge protection device for LED street lights and garden lights

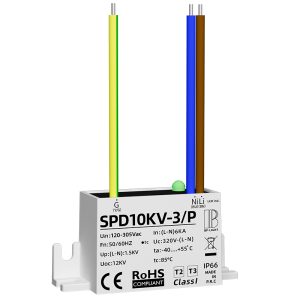

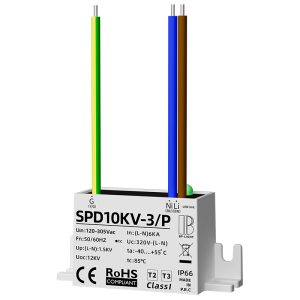

BP-SPD10KV-3/P|LED Street Lighting Surge Arrester
The 12kV 6kA Type 2 and Type 3 surge protector is developed to meet higher lightning protection requirements. It facilitates design and installation for lighting manufacturers, while reducing failure rates and maintenance costs for end users.
- ⚡ 3-wire parallel 12kV 6kA LED surge protector
- ⚡ With indicator light and thermal trip protection
- ⚡ Parallel or series connection optional
Specifications
- Model
- BP-SPD10KV-3/P
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Parallel
- Max input voltage (Un)
- 220-240V
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- SPD Category
- SPD
- IP Rating
- IP67
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | IEC 61643-11 / EN 61643-11 3-wire parallel 12kV 6kA surge protection device for LED street lights and garden lights |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 67 |
| Packaging Dimensions (LXW X H) [Mm] | 68*23*33.7 |
DOWNLOADS
FAQ
Does the 3-wire Class I parallel surge protector support differential-mode and common-mode protection?
Yes. The 3-wire Class I parallel SPD integrates both differential-mode (L-N line-to-line) and common-mode (L-PE, N-PE line-to-ground) protection, which can suppress both inter-line and line-to-ground surges, perfectly matching single-phase power supply of outdoor LED lamps.
What are the specific parameters of differential mode and common mode for the 3-wire Class I parallel surge protector?
Differential mode(L-N): 12kV impulse withstand, 6kA nominal discharge current (8/20μs); Common mode(L-PE & N-PE): 12kV impulse withstand, 6kA discharge capacity, compliant with IEC61000-4-5 standard.
What is the Uc value of the 3-wire Class I 12kV surge protector?
For standard 230V single-phase grid, the standard Uc is 275V AC. Optional 285V/320V AC for grids with severe voltage fluctuation.ur SPD features an extended Uc range, with a maximum continuous operating voltage (Uc) reaching 320V AC.
What is the maximum residual voltage (protection level Up) of the 3-wire Class I 12kV LED surge protector?
The residual voltage (protection level Up): differential mode(L-N) ≤1.3kV, common mode(L-PE/N-PE) ≤1.5kV. Low residual voltage effectively protects LED drivers from breakdown.
What certifications does the 3-wire Class I 12kV LED surge protector possess?
Core certifications: CE, CB, complying with IEC61643-11 & EN61643-11;
Only differential mode protection, no common mode?
Most lightning surges are common-mode. Without L-PE & N-PE protection, drivers still burn easily.
