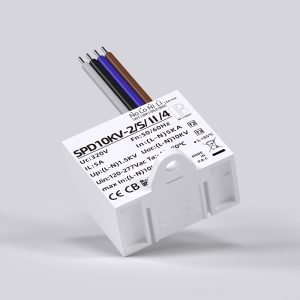

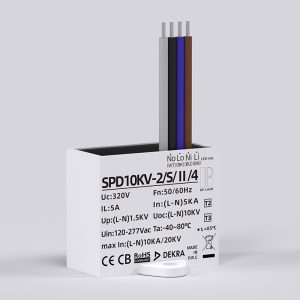

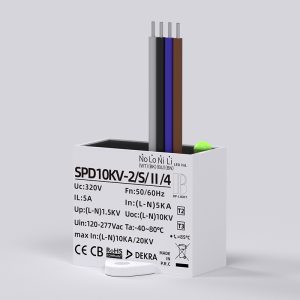

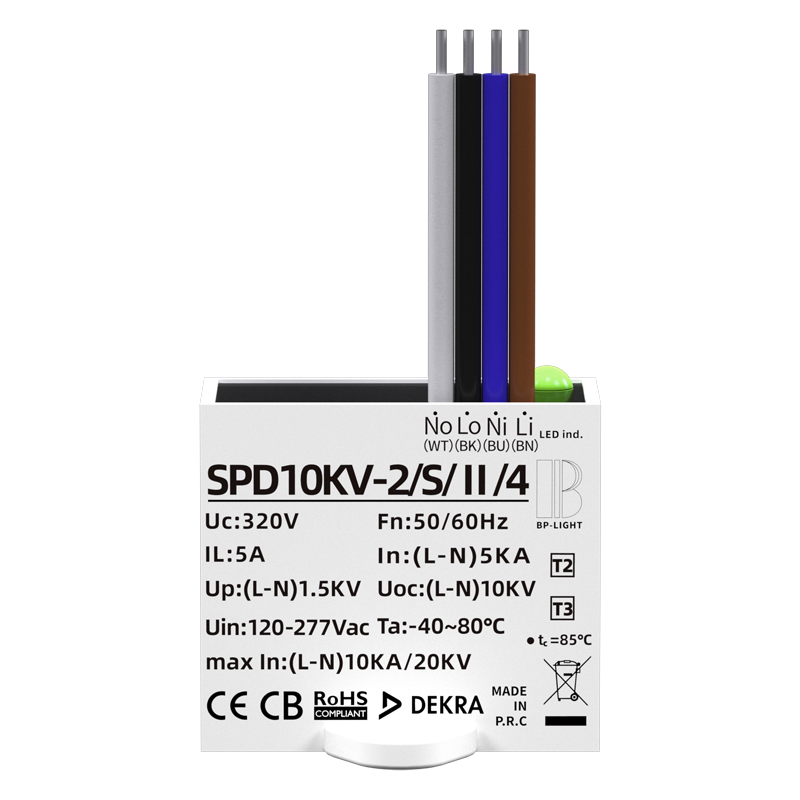

4-wire series connection, IP67 waterproof Class II LED SPD 10kV surge protector device
BP-SPD10KV-2/S/II/4|Outdoor Street Light Surge Arrester SPD
10kV LED Class II surge protector, designed for protecting Class II luminaires, compliant with IEC 61643-11 and EN 61643-11 standards, supplied with CE and CB certificates, with 10kV / 5kA surge protection rating.
- ⚡ 10KV /5KA
- ⚡ type 2 /type 3
- ⚡ IP67
- ⚡ Class II
- ⚡ CECEROHS
Specifications
- Model
- BP-SPD10KV-2/S/II/4
- Applicable luminaires
- Class Il luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Parallel
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- IP Rating
- IP67
- Max input voltage (Un)
- 220-240V
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | 4-wire series connection, IP67 waterproof Class II LED SPD 10kV surge protector device |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 48 |
| Packaging Dimensions (LXW X H) [Mm] | 30*27.6*36 |
DOWNLOADS
FAQ
How to wire a Class II series surge protector in a luminaire?
Connect the power supply to the L/N input terminals of the LED surge protector, and the L/N output of the protector to the L/N input of the LED driver. Polarity must be correctly connected and must not be reversed.
How to wire a Class II series surge protector in a luminaire?
Connect the power supply to the L/N input terminals of the LED surge protector, and the L/N output of the protector to the L/N input of the LED driver. Polarity must be correctly connected and must not be reversed.
Does a Class II surge protector have a maximum load? What is the maximum load of this surge protector?
The surge protector has a maximum rating. This surge protector has a maximum discharge current of 5A and a maximum power rating of 1100 watts.
What is differential mode & common mode for SPD?
Differential Mode Surge between Line (L) and Neutral (N).Protects against internal grid fluctuations and switching surges. Common Mode Surge between Line/Neutral and Ground (PE). Mainly protects against lightning induced surges and external interference.
