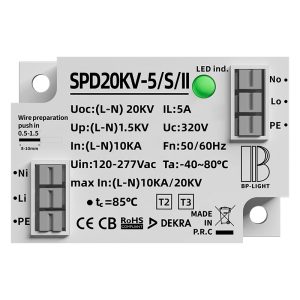

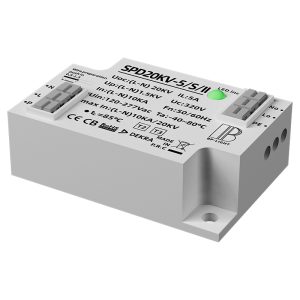

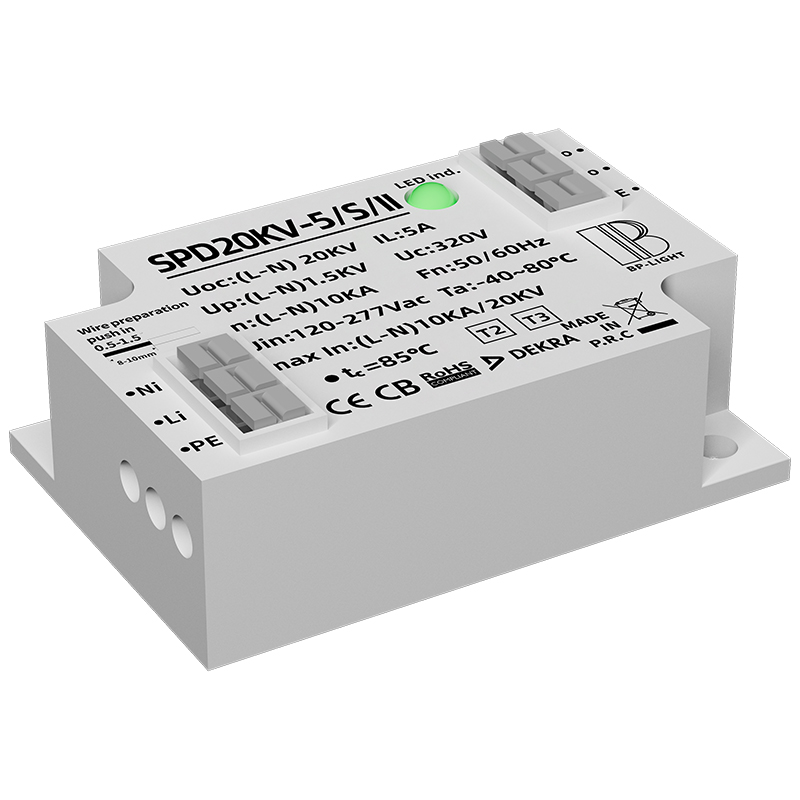

SPD Surge Protection Device 20kV Surge Arrestor Type 2+3 for Outdoor LED Street Light Flood Light Luminaires
BP-SPD20KV-5/S/II|LED Surge Protector
BP‑SPD20KV‑5/S/II is Type 2+3 surge protection device designed for Class II LED luminaires. It features PA66 flame‑retardant housing, IP54 rating and push‑in terminals. Max discharge current reaches 20kA, fitted with LED indicator and dynamic thermal disconnection. CE, CB, DEKRA, RoHS certified. Operating temperature -40~85°C, protects outdoor LED lights from lightning and transient surges.
- ⚡ Type 2+3 Combined SPD
- ⚡ 20kA Max Discharge Current
- ⚡ LED Working Indicator
Specifications
- Model
- BP-SPD20KV-5/S-II
- Applicable luminaires
- Class Il luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max input voltage (Un)
- 220-240V
- IP Rating
- IP20
- Max Discharge Current
- 20KA
- Nominal Discharge Current
- 10KA
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320/255
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：10
Max Discharge Current (8/20) - Imax (L-N) [kA]：20
Rated current load - IL [A]：10
Voltage protection level at In - Up (L-N)[kV]：1.5/2.5
Open circuit Voltage(L-N)[kV]：20
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25/≤100
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Title | SPD Surge Protection Device 20kV Surge Arrestor Type 2+3 for Outdoor LED Street Light Flood Light Luminaires |
|---|---|
| Temperature range [°C] | -40... 85 |
| Indication System Type | LED |
| Insulating material | PA66 |
| Housing color | RAL9003 |
| Enclosure-IP | IP20 |
|---|---|
| Flammability class | UL94V-0 |
| Terminal connection | Push in(in and out) |
| Conductor cross section | 0.5...1.5mm² |
| Packaging Dimensions (LXW X H) [mm] | 60.5*40.5*21.3 |
DOWNLOADS
FAQ
Q1: What SPD type is BP‑SPD20KV‑5/S/II?
A1: It is EN Type 2+3 / IEC Class II+III SPD, specially made for Class II LED luminaires.
Q2: What is its maximum discharge current?
A2: The max discharge current (8/20μs) is 20kA, nominal discharge current is 10kA.
Q3: Which certificates does this SPD obtain?
A3: It carries CE, CB, DEKRA and RoHS certifications, meets IEC 61643‑11 standard.
