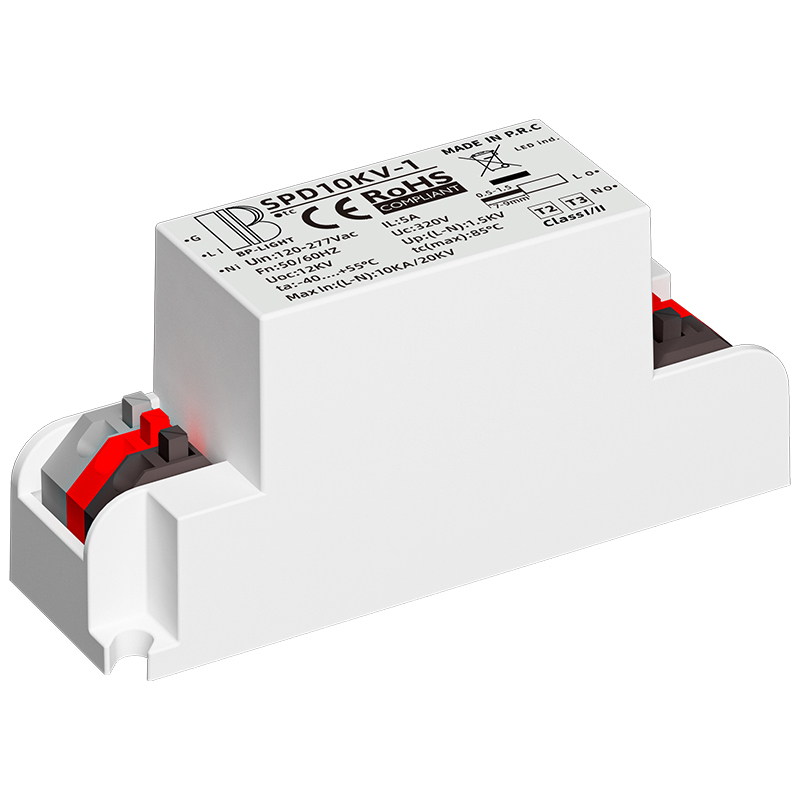

IP20 LED SPD 10kV/12kV, IEC 61643-11:2025 Standard for Street Lighting

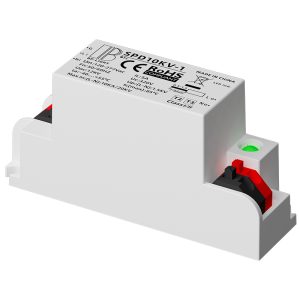

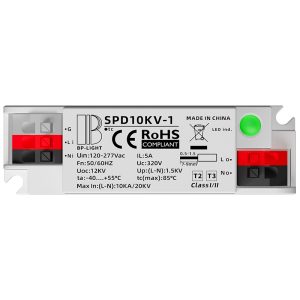

BP-SPD10KV-1|LED surge protection device
The BP-SPD10KV-1 LED SPD is specifically designed for street lights and garden lights. It complies with both Type 2 and Type 3 standards, and is compatible with Class I and Class II luminaires. To meet different regional needs, this series offers a 12kV version for the South American market and a 10kV version for the European market.
- ⚡ Compliant with Class I & Class II luminaires
- ⚡ Customizable terminal colors
- ⚡ Supports both 10kV and 12kV ratings
- ⚡ Customization accepted
Specifications
- Model
- BP-SPD10KV-1
- Terminal color
- Grey, Three colors, Blue, Orange
- SPD thermally protected
- 10KV, 12KV
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- IP Rating
- IP20
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- Max input voltage (Un)
- 220-240V
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | IP20 LED SPD 10kV/12kV, IEC 61643-11:2025 Standard for Street Lighting |
|---|---|
| Temperature range [°C] | -40... 85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL9003 |
| Enclosure-IP | IP20 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Push in(in and out) |
| Conductor cross section | IP20 |
| Product Weight[g] | 49 |
| Packaging Dimensions (LXW X H) [Mm] | 72*22*34 |
DOWNLOADS
FAQ
What standards are adopted in Europe for SPDs used on outdoor street lights?
IEC&EN 61643-11/21 Core standard for low-voltage Surge Protective Devices (equivalent to IEC 61643-11).Built-in SPD inside LED luminaires mostly belongs to Type 2&3.
How do I choose between 10kV/10kA and 20kV/20kA protection levels?
10kV/10kA: Ideal for standard urban street lighting or areas with stable grids and low lightning frequency. It offers the best cost-to-performance ratio.20kV/20kA:Recommended for high-risk areas like highways, coastal regions, remote rural areas, or high-mast stadium lighting. Higher kA ratings mean the device can withstand more frequent and powerful surges, ensuring a longer lifespan for the entire luminaire.
"What is the difference between Series and Parallel installation? Which is better?
We offer both versions to suit your project requirements: Parallel: Easier to install. If the SPD fails, the light stays on but is no longer protected. Series: This is the preferred choice for most professional projects. When the SPD reaches its end-of-life, it automatically disconnects power to the fixture. This ""failsafe"" mode alerts maintenance teams to replace the SPD, ensuring the expensive LED luminaire is never left unprotected."
Is this device for extreme outdoor use?
Yes. Our SPDs are housed in flame-retardant casings and fully encapsulated with high-grade epoxy resin. This ensures reliable operation against heavy rain, high humidity, and temperature fluctuations from -40°C to +85°C.
Which certifications do SPDs for outdoor street lights need?
CE Mark (Mandatory for EU market) CB Certificate
