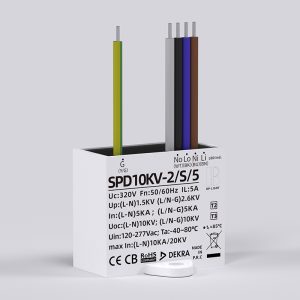

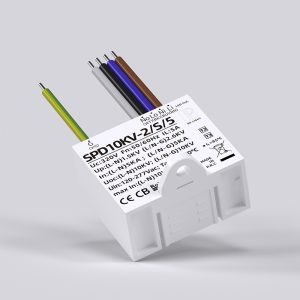

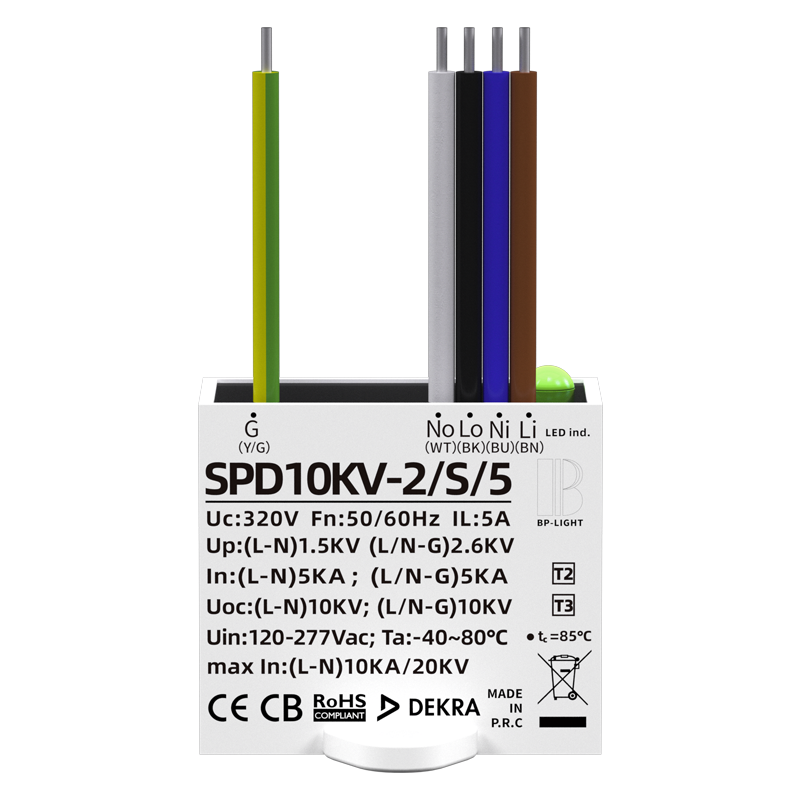

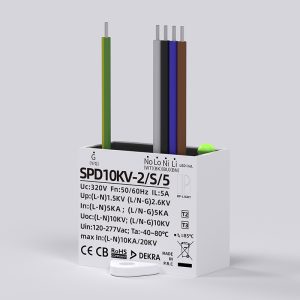

5-Wire Series 10kV LED SPD, IP67 Waterproof, Compliant with Outdoor Luminaire Requirements
BP-SPD10KV-2/S/5|LED Street Lighting Surge Arrester
5-Wire Series IP67 SPD(surge protection device): Complies with Type 2 & Type 3 standards and Class I luminaire requirements. Suitable for internal installation in luminaires, or external installation in the junction boxes of street lights, garden lights, and floodlight poles.
- ⚡ IP67 waterproof rating
- ⚡ Customizable lead wire length
- ⚡ 35mm DIN rail mounting.
Specifications
- Model
- BP-SPD10KV-2/S/5
- Applicable luminaires
- Class l luminaire
- Certifications
- CB, CE, RoHS
- Connection
- Series
- Max Discharge Current
- 10KA
- Nominal Discharge Current
- 5KA
- IP Rating
- IP67
- Max input voltage (Un)
- 220-240V
- SPD Category
- SPD
KEY FEATURES
Maximum continuous operating voltage (AC) Uc (L-N) V]：320
Nominal voltage AC 50-60 Hz - Un V]：230/400
Nominal voltage AC 50-60 Hz - Un (L-N) V]：230
Nominal discharge current (8/20)- In (L-N) [kA]：5
Max Discharge Current (8/20) - Imax (L-N) [kA]：10
Rated current load - IL [A]：5
Voltage protection level at In - Up (L-N)[kV]：1.5
Open circuit Voltage(L-N)[kV]：10
Short-circuit Current rating-Isccr [A]:300
Response time tA (L-N) [ns]：≤25
TOV Ut 5s (LV systems, withstand) V]：337
TOV Ut 120min (HV systems, withstand) V]:442
Dynamic thermal disconnection：Yes
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | 5-Wire Series 10kV LED SPD, IP67 Waterproof, Compliant with Outdoor Luminaire Requirements |
|---|---|
| Temperature range [ºC] | -40 ...85 |
| Indication System Type | LED |
| Insulating material | PC |
| Housing color | RAL 9003 |
| Enclosure - IP | IP67 |
| Flammability class | UL94V-0 |
|---|---|
| Terminal connection | Pushin(in and out) |
| Wire Connections | Cable (in and out) 18# |
| Product Weight[g] | 48 |
| Packaging Dimensions (LXW X H) [Mm] | 30*27.6*36 |
DOWNLOADS
FAQ
Can the cable length of this SPD for outdoor lighting be customized?
Yes. We can customize the cable length according to your requirements, with a MOQ of 3000 pieces.
Does the SPD certification include the IP67 waterproof test?
The testing standard for LED SPDs (Surge Protective Devices) is IEC 61643-11, which does not include waterproof testing items.
"What is the difference between Series and Parallel installation? Which is better?
We offer both versions to suit your project requirements: Parallel: Easier to install. If the SPD fails, the light stays on but is no longer protected.
Can you provide the IP67 test report and certificate?
product has passed the IP67 test according to the IEC 60529 standard, although a formal test report has not yet been obtained.
Should the SPD's output wire be as long as possible or as short as possible?
The shorter the SPD's output wire is, the better, as it provides superior protection for the components and equipment.
Is it acceptable to connect the SPD's input and output in reverse?
Reverse connection is strictly prohibited. Please strictly follow the installation manual. If you have any questions, feel free to consult BP-Light.
What are the surge protection classes for LED SPD?
According to EN 61643-11, there are 3 main classes: Type 1: Tested against direct lightning surges, used in main power distribution boxes. Type 2: Tested against induced lightning and grid surges, used in distribution panels. Type 3: Equipment-level protection, the most common type built into LED drivers and luminaires.Our SPDs are type2 and type3.
RELATED PRODUCTS

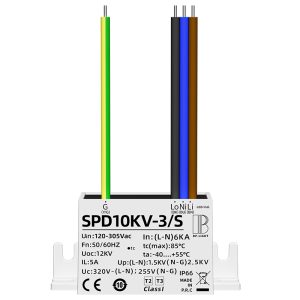

Waterproof LED SPD Surge Arrester Lightning Surge Arrester Fit All Kinds of Outdoor LED Lighting Fixtures
