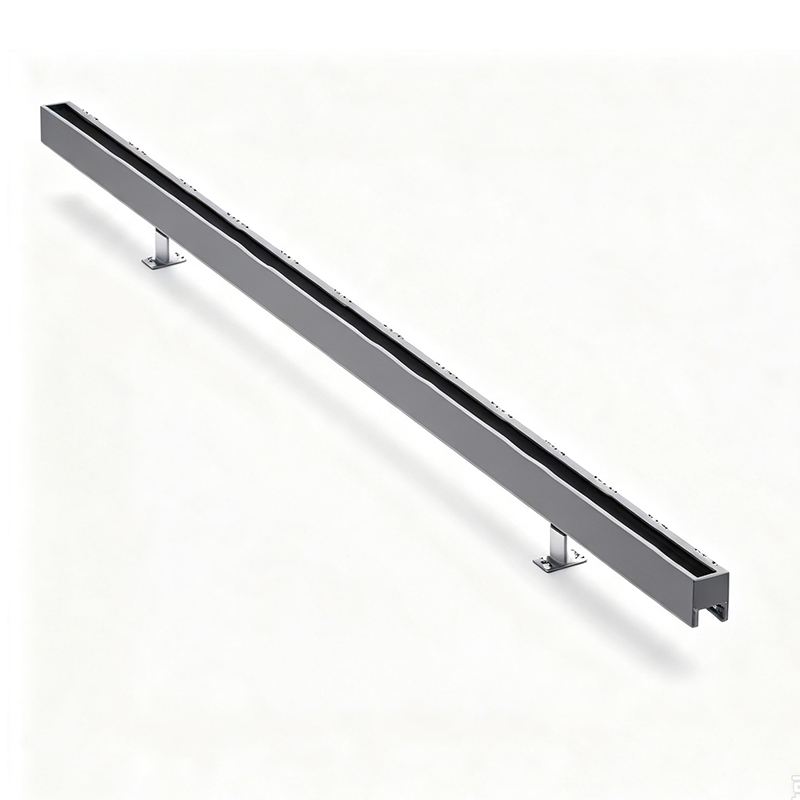

Philips UniStrip G5 Compact Pro BCP402
BCP402
UniStrip G5 Compact Pro is the 5th generation compact linear LED wall washer, custom-engineered for vertical facade lighting. Its slim 25×33.5mm housing suits curtain wall systems with strict mounting requirements. Equipped with built-in louvers for superior glare control, it can also work as standard wall washer without film and louvers. Max 36W for white light, 15W for RGBW, up to 10 pixels/meter, IP66 rated for outdoor architectural lighting projects.
- ⚡ Ultra-slim 25×33.5mm housing
- ⚡ Up to 10 pixels per meter
- ⚡ Built-in louver anti-glare design
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Wall Light
KEY FEATURES
Specially developed for vertical facade projection, compact body and refined accessories, perfectly matching curtain wall systems with strict installation node requirements.
Unique optical design plus integrated louvers delivers excellent glare control; removable film and louvers allow conversion to standard wall washer for flexible usage.
Multiple light source options: white up to 36W, RGBW up to15W, RGB/RGBW/3000K/4000K, customizable single color and TW tunable white.
Supports DMX512 control with up to 10 segments per meter. Symmetric & asymmetric optics deliver uniform light output; ±95° adjustable angle for flexible aiming.
IP66 & IK06 protection, 24V DC input, 300/500/1000mm standard lengths, long 50,000h lifespan and CQC/CB/CE certifications for outdoor use.
APPLICATIONS
Municipal building facade linear lighting
Landscape architectural wall washing projects
Curtain wall vertical projection lighting
TECHNICAL SPECIFICATIONS
| Title | Philips UniStrip G5 Compact Pro BCP402 |
|---|---|
| Item | Specifications |
| Max Power | 10W, 3W, 3.6W, 18W, 6W, 7.5W, 36W, 12W, 15W |
| Optional CCT | 3000K, 4000K |
| Optional Color | RGB, RGBW |
| CRI | 80 |
| White Color Tolerance | 5 SDCM |
| Color Wavelength Range | R: 620 ~ 625nm; G: 525 ~ 530nm; B: 470 ~ 475nm |
| Housing | Extruded aluminum housing + die-cast aluminum end caps |
| Surface Finish | Electrostatic polyester powder coating |
|---|---|
| Housing Color | Dark Grey (RAL7012) |
| Bracket Material | Extruded aluminum |
| Angle Adjustment | ±95° adjustable |
| Lens Material | Anti-aging & UV-resistant PMMA lens |
| Gasket | Silicone |
| Light Emitting Surface | Clear tempered glass |
| Product Dimension | "300/500/1000 × 30 × 69mm (with bracket) |
| Weight | 0.3Kg, 0.5Kg, 0.9Kg |

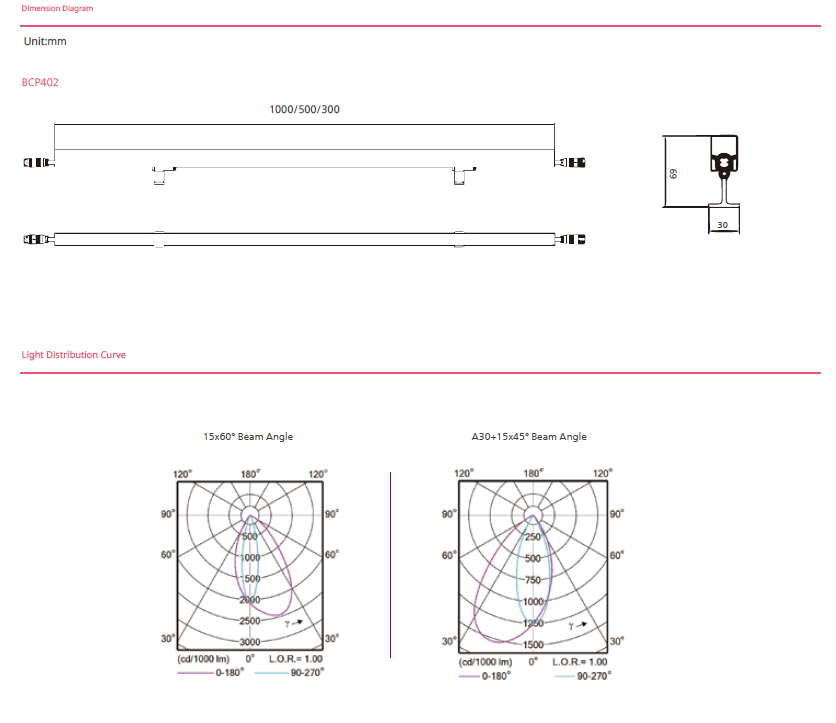

Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the input voltage of UniStrip G5 Compact Pro?
A1: It adopts 24V DC low voltage power supply for safe outdoor installation.
Q2: What is the maximum pixel control capacity?
A2: It supports multi-segment DMX512 control, up to 10 pixels per meter.
Q3: What is the IP rating and warranty period?
A3: IP66 & IK06 protection grade, it comes with a 3-year product warranty.
RELATED PRODUCTS

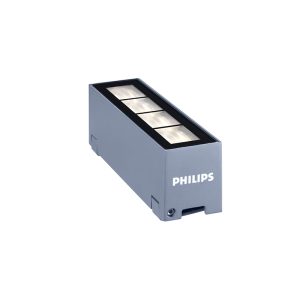

Philips UniEdge BCP390 - Make Your Boundaries Stand Out
BCP390
⚡|Compact window sill wall washer
View Details →

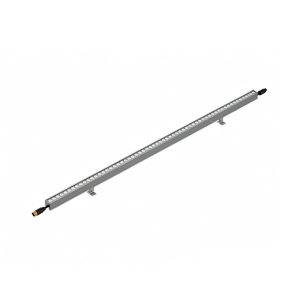

Philips UniStrip G5 DC BCP351/352/356 perfect for municipal and landscape linear outdoor lighting projects.
BCP351/352/356
⚡|IP66 outdoor waterproof grade
View Details →
BWS010 LED1/765 G2 - Essential SmartBright Solar Wall
BWS010
⚡|Off‑grid solar wall‑mount design
View Details →

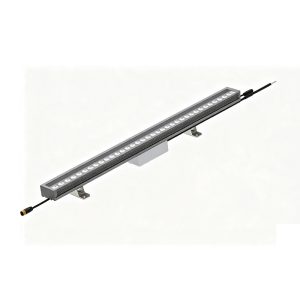

Philips UniSrtrip G5 AC BCP354/BCP385 perfect for outdoor surface mounting
