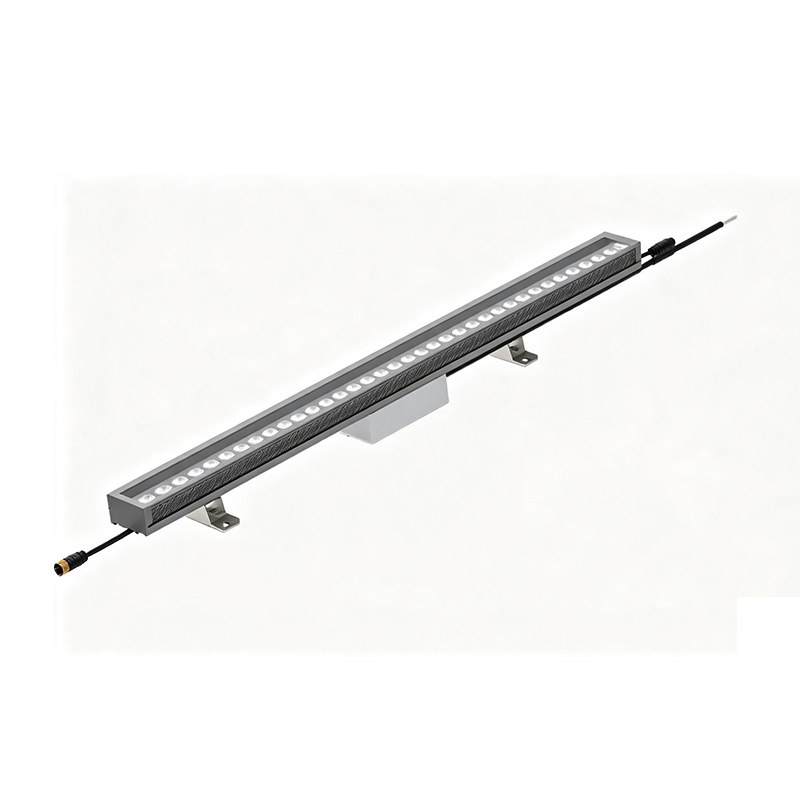

Philips UniSrtrip G5 AC BCP354/BCP385 perfect for outdoor surface mounting

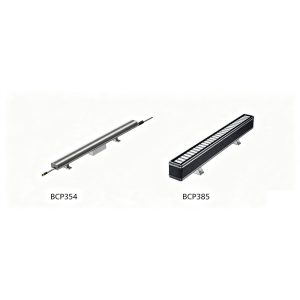

BCP354/BCP385
UniStrip G5 AC is the 5th-gen high-voltage linear LED wall washer for outdoor surface mounting. It delivers up to 8100lm luminous flux and max power of 120W, with a narrow beam angle down to 7.5°. It supports multi-pixel DMX control, self-drain aluminum housing and IP66 protection. Great for municipal, landscape, bridge and building facade linear washing lighting projects.
- ⚡ Max output 8100lm & 120W
- ⚡ Ultra-narrow beam down to 7.5°
- ⚡ Multi-pixel DMX512 control
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Wall Light
KEY FEATURES
High-power AC wall washer with up to 8100lm and 120W, PMMA anti-UV lens and multiple beam options including ultra-narrow 7.5° for precise long-range lighting.
Multi-pixel design supports up to 6 segments per meter via DMX512, enabling dynamic segmented lighting effects for creative architectural facade lighting.
Self-drain housing and end cap design effectively drain water and block dust, protecting internal components for stable long-term outdoor operation.
Hand-in-hand connection with IP67 waterproof connectors and dedicated address line allows fast DMX addressing, greatly simplifying site wiring and programming.
Long service life of 50,000 hours, IP66 & IK06 rating, works steadily from -40℃ to 50℃, certified with CQC, CB and CE for global projects.
APPLICATIONS
Municipal building facade linear lighting
Bridge outline & overpass illumination
Landscape architectural wall washing projects
TECHNICAL SPECIFICATIONS
Product Information：:
- PHILIPS BCP385 24LED RGB 220V A1 L52 DMX 911401751662
- PHILIPS BCP385 30LED RGB 220V A1 L52 DMX 911401751672
- PHILIPS BCP385 6LED RGBNW 220V A2 L52 DMX 911401751682
- PHILIPS BCP385 24LED 27K 220V 7 L52 911401751692
- PHILIPS BCP385 24LED 27K 220V 7 L52 DMX 911401751702
- PHILIPS BCP385 24LED 27K 220V A1 L52 911401751712
- PHILIPS BCP385 24LED 27K 220V A1 L52 DMX 911401751722
- PHILIPS BCP385 24LED 30K 220V 7 L52 911401751732
- PHILIPS BCP385 24LED 30K 220V 7 L52 DMX 911401751742
- PHILIPS BCP385 24LED 30K 220V A1 L52 911401751752
- PHILIPS BCP385 24LED 30K 220V A1 L52 DMX 911401751762
- PHILIPS BCP385 24LED 40K 220V 7 L52 911401751772
- PHILIPS BCP385 24LED 40K 220V 7 L52 DMX 911401751782
- PHILIPS BCP385 24LED 40K 220V A1 L52 911401751792
- PHILIPS BCP385 24LED 40K 220V A1 L52 DMX 911401751802
- PHILIPS BCP385 30LED 27K 220V 7 L52 911401751812
- PHILIPS BCP385 30LED 27K 220V 7 L52 DMX 911401751822
- PHILIPS BCP385 30LED 27K 220V A1 L52 911401751832
- PHILIPS BCP385 30LED 27K 220V A1 L52 DMX 911401751842
- PHILIPS BCP385 30LED 30K 220V 7 L52 911401751852
- PHILIPS BCP385 30LED 30K 220V 7 L52 DMX 911401751862
- PHILIPS BCP385 30LED 30K 220V A1 L52 911401751872
- PHILIPS BCP385 30LED 30K 220V A1 L52 DMX 911401751882
- PHILIPS BCP385 30LED 40K 220V 7 L52 911401751892
- PHILIPS BCP385 30LED 40K 220V 7 L52 DMX 911401751902
- PHILIPS BCP385 30LED 40K 220V A1 L52 911401751912
- PHILIPS BCP385 30LED 40K 220V A1 L52 DMX 911401751922
- PHILIPS BCP385 48LED 27K 220V 7 L100 911401751932
- PHILIPS BCP385 48LED 27K 220V 7 L100 DMX 911401751942
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
1: What is the input voltage of UniStrip G5 AC?
A1: It uses 220V AC input, high-voltage design, no extra low-voltage power supply required.
Q2: What is the narrowest beam angle available?
A2: The narrowest beam angle reaches 7.5 degrees, ideal for long-distance targeted lighting.
Q3: What is the rated lifespan of this LED wall washer?
A3: 50,000 hours L70 for white light; 50,000 hours L50 for color light at 35℃ ambient temperature.
