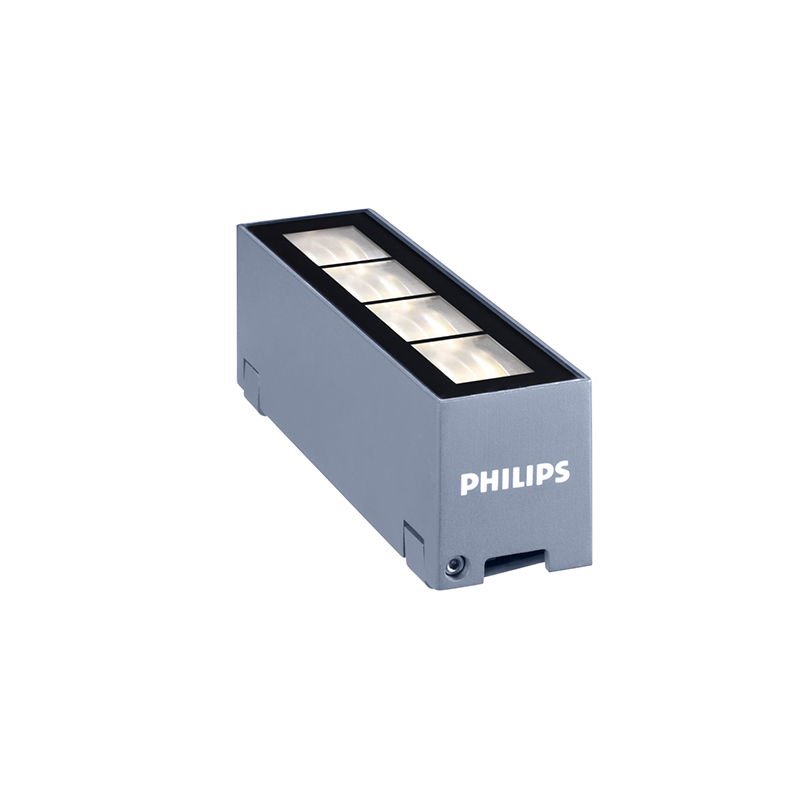

Philips UniEdge BCP390 - Make Your Boundaries Stand Out
BCP390
UniEdge BCP390 is Philips compact LED window sill wall washer, ingeniously engineered for frame lighting of doors and windows. It features a sleek compact housing with self-cleaning flat glass, unique 3-way blade PMMA lens delivering 3×90° beam angle. Max luminous flux reaches 165lm, 24V DC power, IP66 & IK06 protection. Hand-in-hand connection with IP67 waterproof connectors, supports On/Off or DMX control, long 50,000-hour lifespan for building frame accent lighting.
- ⚡ Compact window sill wall washer
- ⚡ 3-way blade PMMA lens
- ⚡ Hand-in-hand IP67 connectors
Specifications
- Application Scenarios
- Outdoor
- LED Light Types
- Wall Light
KEY FEATURES

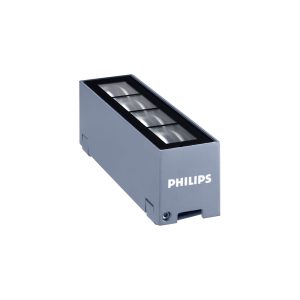

Compact and slim design with flat self-cleaning glass surface, ideal for narrow door and window frame lighting applications with limited installation space.
Unique three-way blade PMMA optical lens provides 3×90° beam angle, delivering uniform light distribution for architectural edge accent illumination.

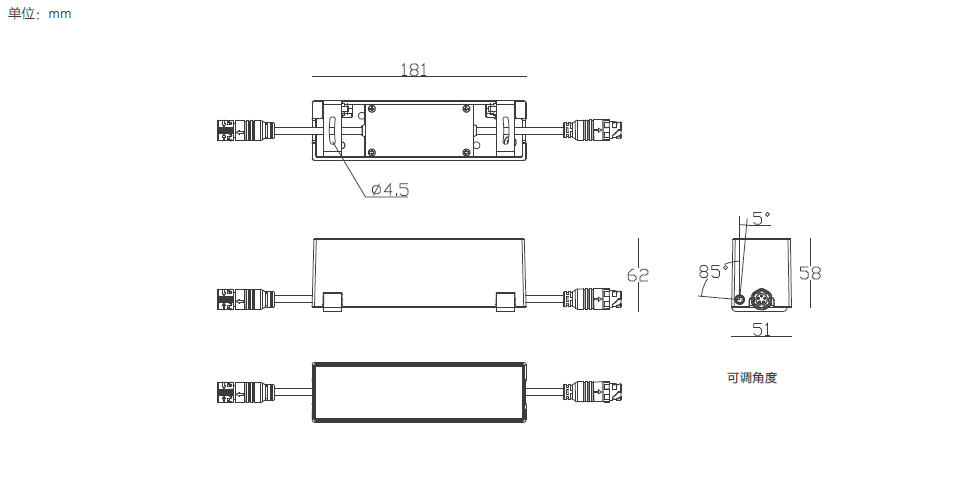

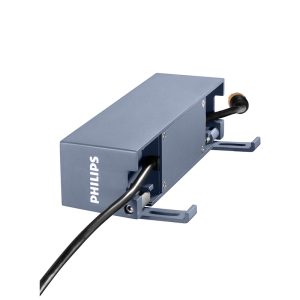

Die-cast aluminum housing and tempered glass front, with adjustable bracket from -5° to +85°, flexible aiming to meet different framing lighting requirements.
Hand-in-hand power & signal wiring with built-in IP67 waterproof connectors; dedicated address line enables fast DMX addressing via handheld programmer ZXP399.
24V DC low voltage, IP66 & IK06 rating, rich colour/CCT selections, up to 50,000hrs lifetime, CQC/CB/CE certified for outdoor architectural projects.
APPLICATIONS
Door & window frame accent lighting
Building facade edge decorative lighting
Curtain window sill outline lighting
TECHNICAL SPECIFICATIONS
Product Information：:

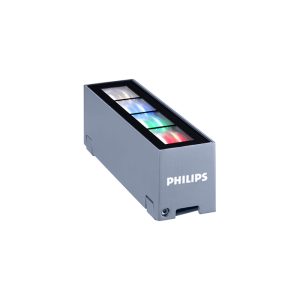

- BCP390 3LED RGB 24V 3x90 DMX D3 911401737273
- BCP390 4LED 27K 24V 3x90 D3 911401737283
- BCP390 4LED 27K 24V 3x90 DMX D3 911401737293
- BCP390 4LED 30K 24V 3x90 D3 911401737303
- BCP390 4LED 30K 24V 3x90 DMX D3 911401737313
- BCP390 4LED 40K 24V 3x90 D3 911401737323
- BCP390 4LED 40K 24V 3x90 DMX D3 911401737333
- BCP390 4LED RGBNW 24V 3x90 DMX D3 911401737343
- Only partial models shown, please contact us for full options.
Junction Box Module Display
Click to enlarge
DOWNLOADS
FAQ
Q1: What is the input voltage of UniEdge BCP390?
A1: It uses 24V DC low voltage input for safe outdoor installation.
Q2: What beam angle does this fixture adopt?
A2: It is equipped with 3×90° three-way blade PMMA lens.
Q3: What is the IP rating and lifespan?
A3: IP66 & IK06; 50,000h L70 for white light and L50 for colour.
