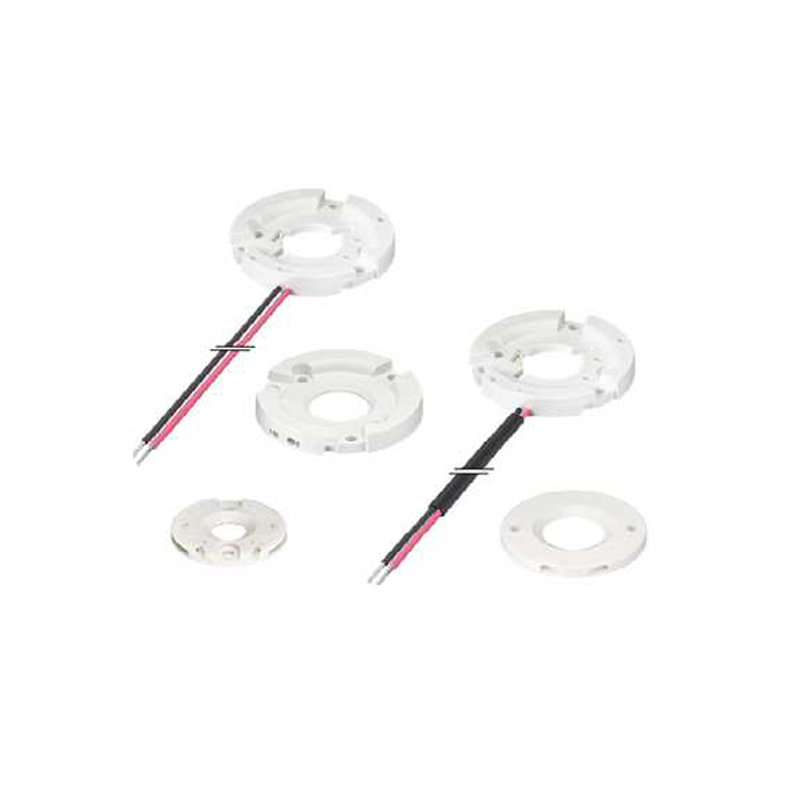

PHILIPS Spotlight Modules Fortimo SLM Holders
Spotlight Modules
Fortimo LED SLM Gen7 CoBs and holders can be ordered separately. This results in even more flexibility and a more extensive product portfolio.Optimized holders are available for spot and downlight applications. For pre-cabled luminaire designs, holders with Poke-in connectors can be ordered.Every holder type is available for every CoB size. CoB compatibility is defined by the CoB size. New Zhaga Poke in holder and 35mm Poke in holder are introduced.
- β‘ Separate order for CoB & holders
- β‘ Multiple types: standard / poke-in
- β‘ Full size match for all SLM CoBs
Specifications
- Model
- Fortimo SLM Holders
KEY FEATURES
Fortimo SLM holders and Gen7 CoBs can be purchased separately, bringing greater design flexibility and wider portfolio choices for luminaire manufacturers.
Diverse holder versions including standard, downlight, Zhaga poke-in and 35mm poke-in types to satisfy different pre-cabled luminaire development needs.
Each holder size perfectly matches corresponding Fortimo SLM CoB sizes; compatibility is clearly defined by CoB specifications for easy selection.
New Zhaga poke-in and 35mm poke-in holders are launched, simplifying wiring assembly and speeding up production for pre-cabled lamp designs.
Optimized mechanical structure tailored for spotlight and downlight luminaires, reliable mechanical fit to support stable long-term operation of CoB modules.
APPLICATIONS
Retail spotlight luminaire assembly
Indoor recessed downlight fixtures
Pre-cabled Zhaga-compliant lighting modules
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- FORTIMO SLM H PI 1215 35 G1 929001538106
- FORTIMO SLM H 1619 G1 929000993580
- FORTIMO SLM H DL 1619 G1 929000993680
- FORTIMO SLM H ZP 1619 G1 929001451980
- FORTIMO SLM H PI 1619 G1 929000993780
- FORTIMO SLM H 2024 G1 929000980703
- FORTIMO SLM H DL 2024 G1 929000980803
- FORTIMO SLM H ZP 2024 G1 929001452080
- FORTIMO SLM H PI 2024 G1 929000980903
- FORTIMO SLM H 2828 G1 929000981003
- FORTIMO SLM H DL 2828 G1 929000981103
- FORTIMO SLM H ZP 2828 G1 929001452180
- FORTIMO SLM H PI 2828 G1 929000981203

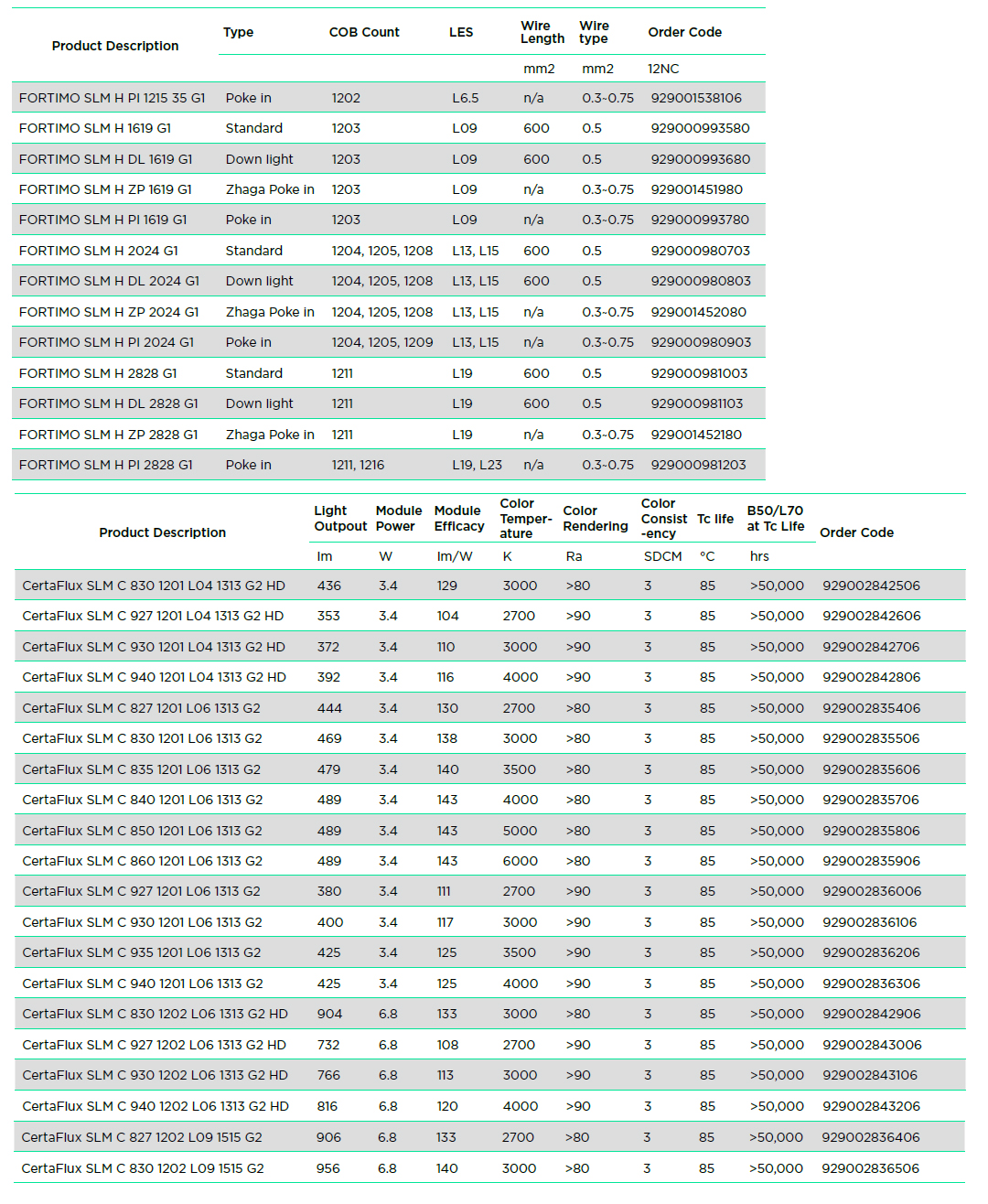

Product specifications
Click to enlarge
FAQ
Q1: Can Fortimo SLM holders and CoBs be ordered separately?
A1: Yes. SLM Gen7 CoBs and holders are available as separate parts, which improves flexibility for luminaire designers.
Q2: What types of Fortimo SLM holders are available?
A2: It includes standard, downlight, Zhaga poke-in and 35mm poke-in variants to meet different wiring and mechanical requirements.
