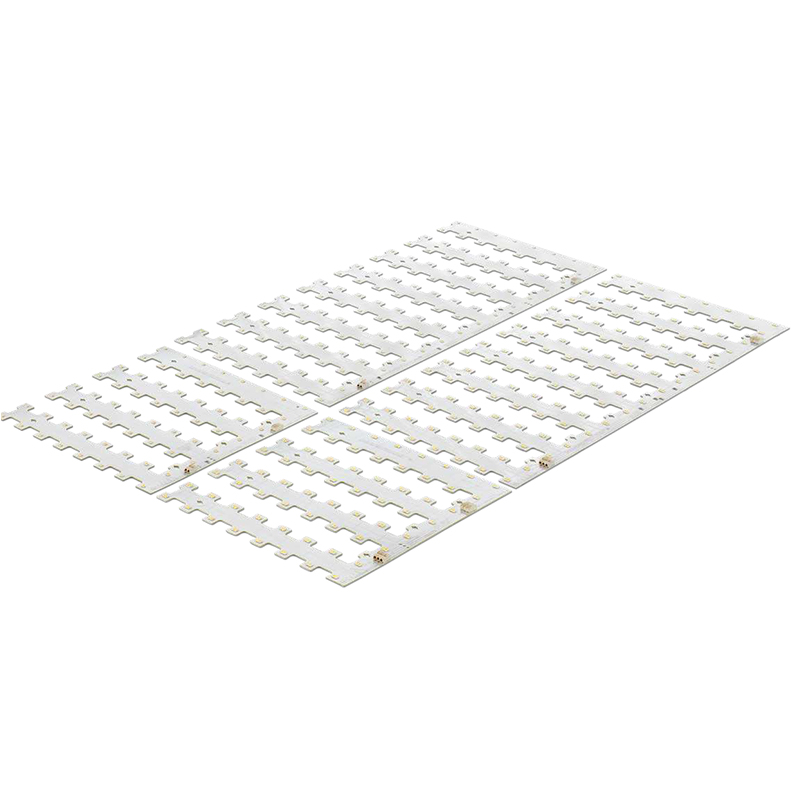

PHILIPS Linear Modules Fortimo LED square
Linear Modules
Fortimo LED modules suitable for backlit applications. The E-shape or finger print designs are high performing modules for square or rectangular luminaires.
- β‘ Backlit LED square modules
- β‘ E-shape & fingerprint designs
- β‘ Gen3, FlexTune & BioUp options
Specifications
- Model
- Fortimo LED square
KEY FEATURES
Optimized for backlit square or rectangular luminaires with high-performance E-shape and fingerprint layouts.
Multiple variants including Gen3, FlexTune tunable white and BioUp CED to meet diverse lighting demands.
3 SDCM color consistency and 65β case temperature rating, compatible with Xitanium LED drivers.
APPLICATIONS
Backlit panel luminaires
Square office light fixtures
Rectangular indoor lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo LED Square 1250lm 830 HV/LV3 929002819906
- Fortimo LED Square 1250lm 840 HV/LV3 929002820006
- Fortimo LED Square 1250lm 865 HV/LV3 929002820106
- Fortimo LED Square 1250lm 930 HV/LV3 929002820206
- Fortimo LED Square 1250lm 940 HV/LV3 929002820306
- Fortimo LED Square 1250lm 965 HV/LV3 929002820406
- Fortimo LED Square 2500lm 830 HV/LV3 929002820506
- Fortimo LED Square 2500lm 840 HV/LV3 929002820606
- Fortimo LED Square 2500lm 865 HV/LV3 929002820706
- Fortimo LED Square 2500lm 930 HV/LV3 929002820806
- Fortimo LED Square 2500lm 940 HV/LV3 929002820906
- Fortimo LED Square 2500lm 965 HV/LV3 929002821006
- Only partial models shown, please contact us for full options.

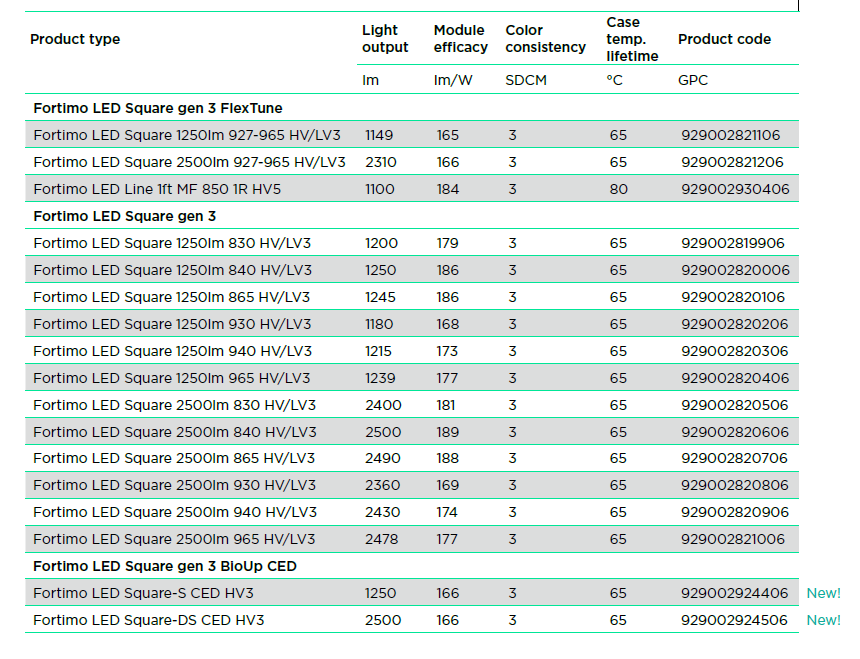

Product specifications
Click to enlarge
FAQ
Q1: What luminaire type is Fortimo LED square designed for?
A1: It is suitable for backlit square or rectangular luminaires with E-shape or fingerprint designs.
Q2: What versions are available for Fortimo LED square?
A2: It offers Gen3 standard, FlexTune tunable white and BioUp CED human-centric lighting versions.
Q3: Which drivers are compatible with these square modules?
A3: It works with multiple Xitanium LED drivers, including 1-10V and DALI versions.
RELATED PRODUCTS
PHILIPS Xitanium LITE Programmable LED Drivers Xi LP 40W 0.3-1.05A S1 WL I125 929003876580
Philips Xi LP 40W 0.3-1.05A S1 WL I125
β‘|Superior thermal management
View Details β
Xitanium LED Drivers - Philips Xi LP 100W 0.3-1.05A S1 WL I145
Xi LP 100W 0.3-1.05A S1 WL I145
β‘|Dimming (0-10V) and reversed dimming available
View Details β

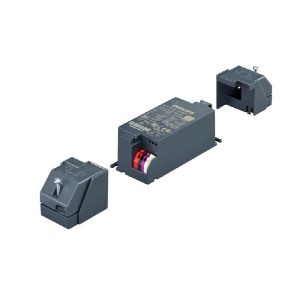

Xitanium Dali and SR
