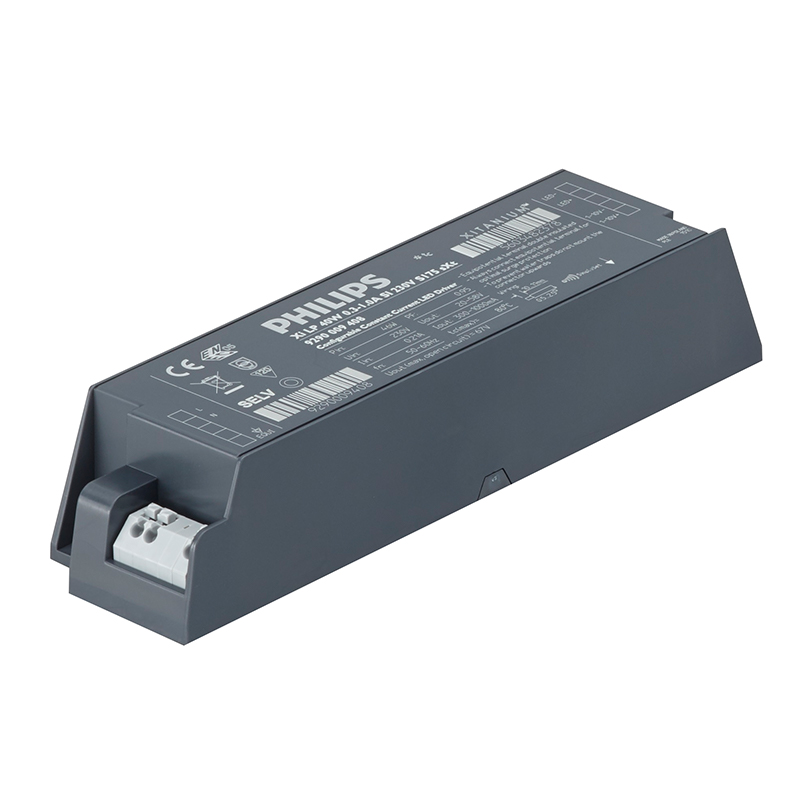

Xitanium LED Drivers - Lite Programmable (LP)
Xitanium Xi LP
Our Xitanium lite programmable Xtreme LED drivers are designed to deliver a carefully selected feature set and high end performance, making them a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and compatibility with LED efficacy upgrades. Configuration of programmable drivers has never been easier with the integrated SimpleSet feature, a fast and wireless way to change and read-out settings.
- ⚡ SimpleSet wireless configuration
- ⚡ Flexible customizable operating window
- ⚡ 100,000‑hour long service lifetime
Specifications
- Model
- Xitanium LED Drivers-LP
- Application Scenarios
- Outdoor
KEY FEATURES
Simpleset to enable programmable features such as Adjustment of Output Current, Constant Light Output, 5 step DynaDimmer, Driver Temperature Limit and OEM Write Protection
100,000 hours lifetime @ Tc life with >90% survivors
Provides more application possibilities to end users and helps OEMs to reduce number of SKUs
Robust and reliable, offering peace of mind and lower maintenance costs
APPLICATIONS
Road and street lighting
Tunnel lighting
Industrial lighintg
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- XI LP 40W 0.2-0.7A S1230V S17S sXt 929000930706
- XI LP 40W 0.3-1.0A S1 230V S17S sXt 929000940806
- XI LP 75W 0.2-0.7A S1 230V S240 sXt 929000963206
- XI LP 75W 0.3-1.0A S1 230V S240 sXt 929000963306
- XI LP 150W 0.2-0.7A S1 230V S240 sXt 929000962806
- XI LP 150W 0.3-1.0A S1 230V S240 sXt 929000962906
- XI LP 150W 0.5-1.5A S1 230V S240 sXt 929001553806
- XI LP 22W 0.2-0.7A S1 230V C123 sXt 929002102906
- XI LP 22W 0.3-1.0A S1 230V C123 sXt 929002103006
- XI LP 40W 0.2-0.7A S1 230V C123 sXt 929002103106
- XI LP 40W 0.3-1.0A S1 230V C123 sXt 929002103206
- XI LP 75W 0.2-0.7A S1 230V C133 sXt 929001654706
- XI LP 75W 0.3-1.0A S1 230V C133 sXt 929001654806
- XI LP 75W 0.5-1.5A S1 230V C133 sXt 929001654906
- XI LP 110W 0.2-0.7A S1 230V C133 sXt 929001655006
- XI LP 110W 0.3-1.0A S1 230V C133 sXt 929001655106
- XI LP 165W 0.2-0.7A S1 230V C170 sXt 929001535406
- XI LP 165W 0.3-1.0A S1 230V C170 sXt 929001535506
- XI LP 165W 0.5-1.5A S1 230V C170 sXt 929001571906

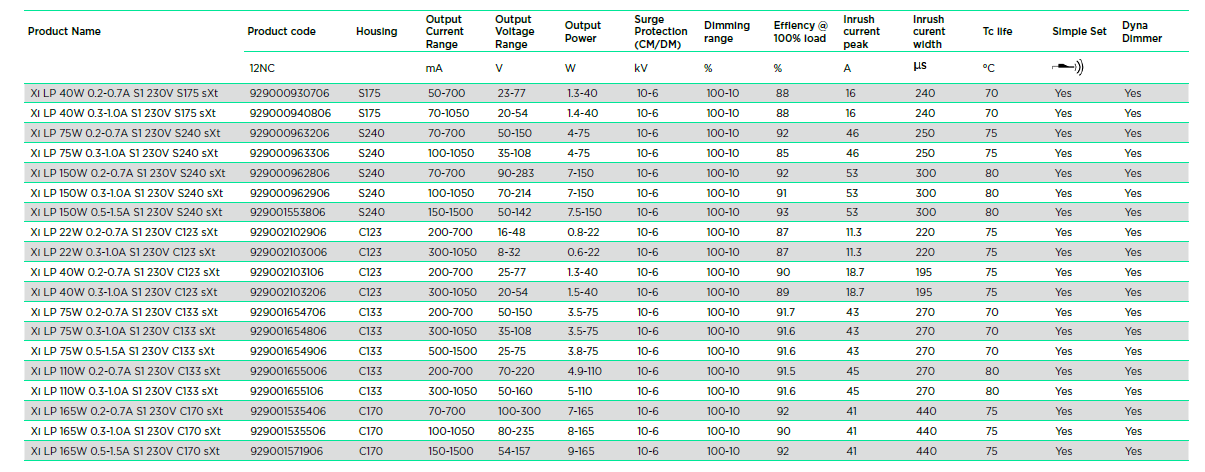

Product specifications
Click to enlarge
DOWNLOADS
FAQ
Q1: What tool is used for quick configuration?
A1: Integrated SimpleSet for wireless setting.
Q2: Where can these LP drivers be applied?
A2: Road, tunnel, street and industrial lighting.
Q3: What key programmable functions are supported?
A3: Output adjustment, DynaDimmer and OEM write protection.
