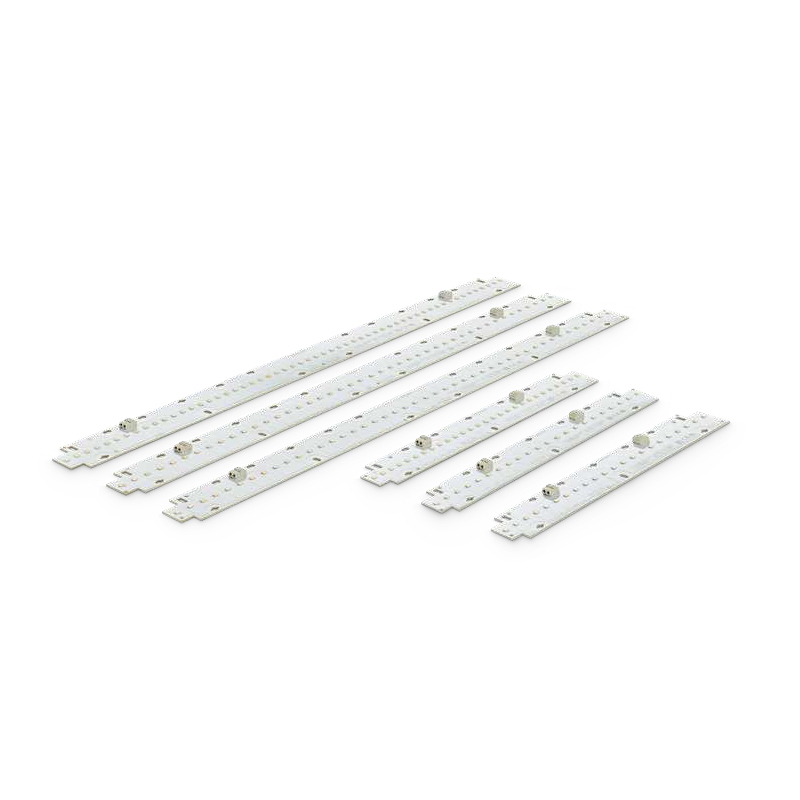

PHILIPS Linear Modules Fortimo LED line
Linear Modules
A well-known footprint covering the needs for general lighting purposes.
- ⚡ Fortimo LED line general lighting module
- ⚡ Low / Mid / High flux multiple options
- ⚡ Long lifetime & stable color consistency
Specifications
- Model
- Fortimo LED line
KEY FEATURES
Mature standard footprint design, fully meets diversified requirements for various general lighting applications.
Available in low, mid, high flux and VO 3R versions, with flexible lumen and CCT selections for luminaire design.
Reliable performance with up to 100,000-hour lifetime, 3 SDCM consistency and optional CRI80 / CRI90.
APPLICATIONS
Indoor general lighting fixtures
Commercial linear luminaires
Public space lighting projects
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo LED Line 1ft MF 830 3R HV5B 929002924906
- Fortimo LED Line 1ft MF 840 3R HV5B 929002925006
- Fortimo LED Line 1ft MF 850 3R HV5B 929002925106
- Fortimo LED Line 1ft MF 830 3R HV5B 929002924906
- Fortimo LED Line 1ft MF 840 3R HV5B 929002925006
- Fortimo LED Line 1ft MF 850 3R HV5B 929002925106
- Fortimo LED Line 1ft MF 930 3R HV/LV5 929002925706
- Fortimo LED Line 1ft MF 940 3R HV/LV5 929002925806
- Fortimo LED Line 2ft MF 830 3R HV5 929002925906
- Only partial models shown, please contact us for full options.

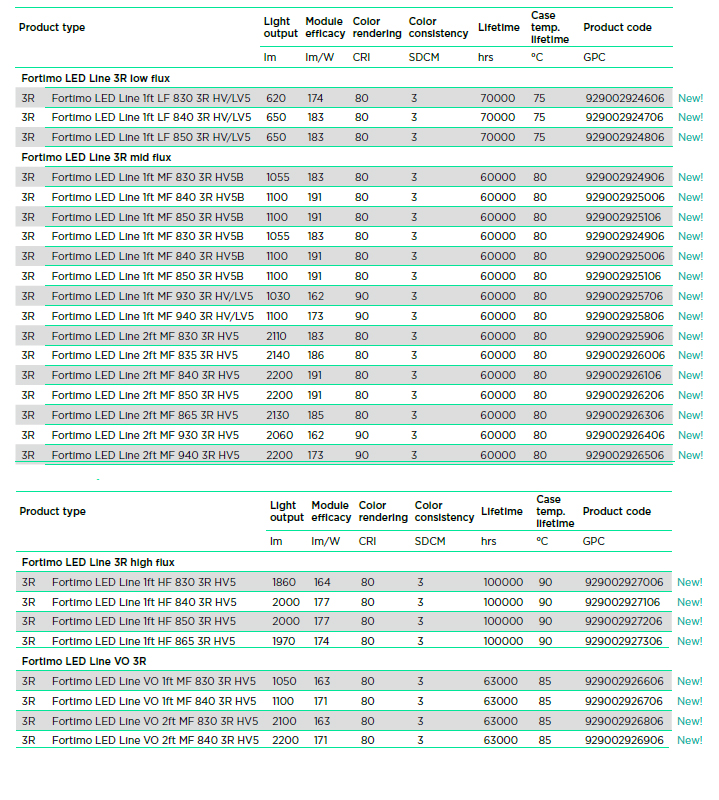

Product specifications
Click to enlarge
FAQ
Q1: What is Fortimo LED line designed for?
A1: It adopts a well-known footprint to fulfill the demands of a wide range of general lighting applications.
Q2: What flux versions does Fortimo LED line provide?
A2: It has low flux, mid flux, high flux and VO 3R variants to support different brightness needs.
Q3: What is the maximum lifetime of this LED line module?
A3: The high flux version achieves a lifetime up to 100,000 hours with stable lighting performance.
RELATED PRODUCTS

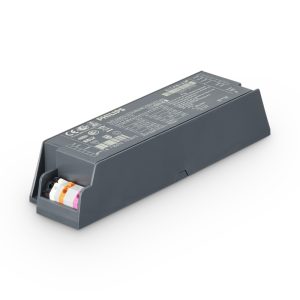

Xitanium LED Drivers - Full Programmable (FP)
Xitanium Xi FP
⚡|Full‑featured programmable controls
View Details →
Xitanium LED Drivers - Single Current (SC)
Xitanium Xi SC
⚡|Fixed single‑current output design
View Details →

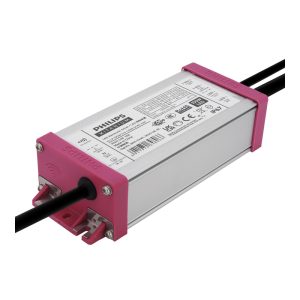

Xitanium LED Drivers -Philips XI LP 150W 0.3-1.05A S1 WL I145
Xi LP 150W 0.3-1.05A S1 WL I145
⚡|Dimming (0-10V) and reversed dimming available
View Details →

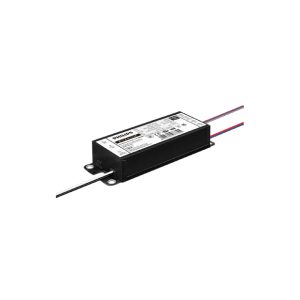

Xitanium LED Drivers - Essential Programmble (EP)
