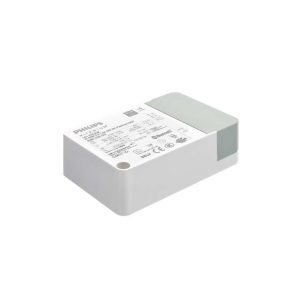

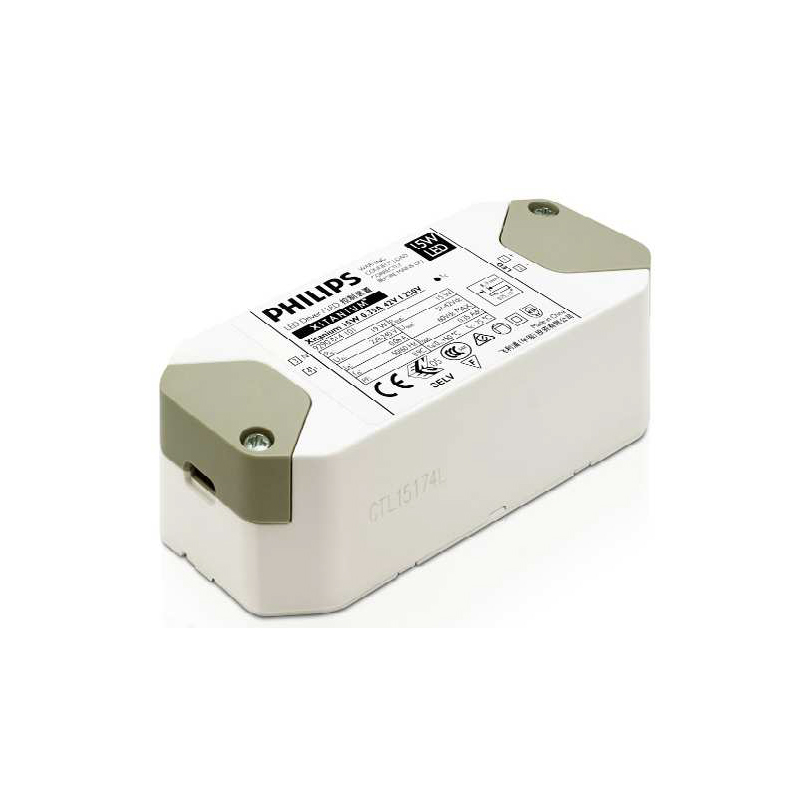

PHILIPS LED Driver Xitanium Standard G3
Xitanium Standard G3
Philips Xitanium LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.
- ⚡ Dip‑switch for 4‑current selection
- ⚡ Ultra‑low ripple less than 1%
- ⚡ 50000‑hour long operating life
Specifications
- Model
- Xitanium Standard G3
- Application Scenarios
- Indoor
KEY FEATURES
Class I and II application
Built in and independent
Low Ripple less than 1%
4 output currents by Dip switch
50,000 hours lifetime
Provides options for different luminaire designs
Great EMI performance for easy design-in
Selectable output current enables flexibility
Peace of mind with proven reliability
APPLICATIONS
Down lighting
Spot lighting
Track lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium 15W 0.2-0.35A 42V DS I 230V,929002808806
- Xitanium 25W 0.45-0.6A 42V DS I 230V,929002808906
- Xitanium 36W 0.7-0.85A 42V DS I 230V,929002809006
- Xitanium 44W 0.9-1.05A 42V DS I 230V,929002809106
- Xitanium 50W 1.05-1.2A 42V DS I 230V,929003457580
- Xitanium 64W 1.5-1.6A 40V DS I 230V,929003457680

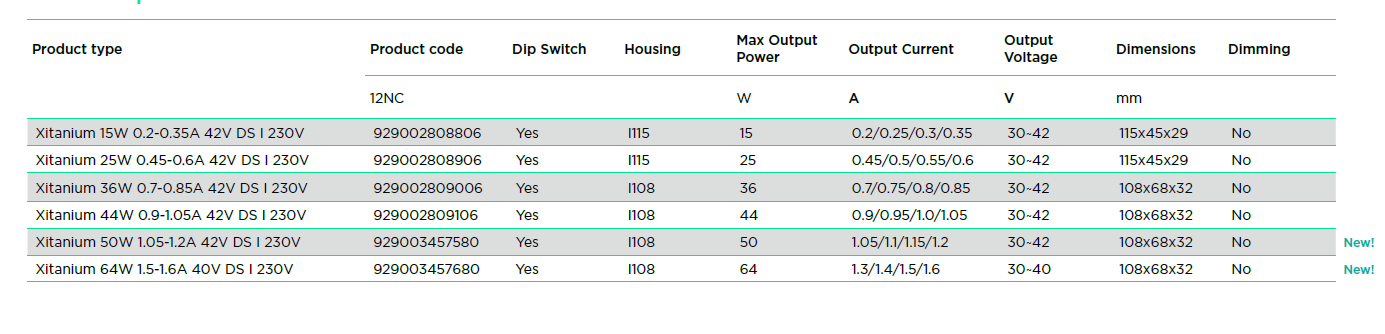

Product specifications
Click to enlarge
FAQ
Q1: How to adjust its output current?
A1: Select 4 currents via dip‑switch setting.
Q2: What ripple performance does it deliver?
A2: Features low ripple less than 1%.
Q3: What are its main application areas?
A3: Down, spot and track lighting fixtures.
