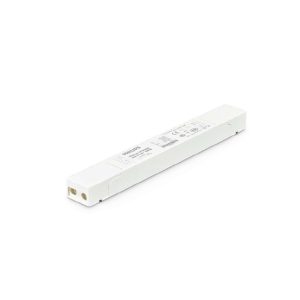

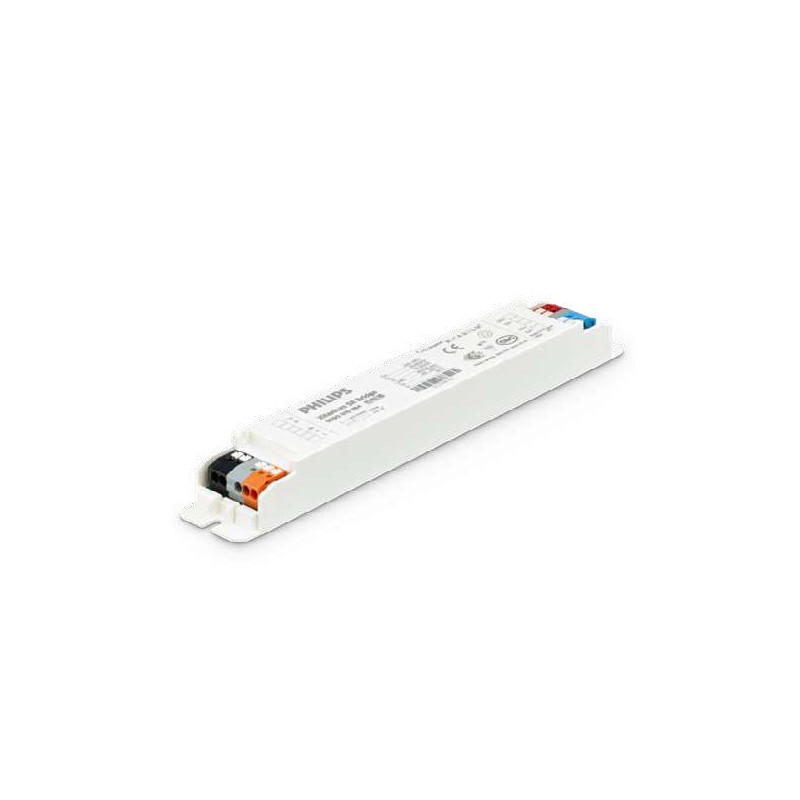

PHILIPS LED Driver Xitanium Programmable SR
Xitanium Programmable SR
Xitanium SR drivers are at the heart of any connected indoor lighting system. These intelligent, SR drivers standardize the connection between driver and sensor, eliminating the need for separate components or modules and ensuring compatibility. Our Xitanium LED linear LED SR drivers not only provide power conversion for LED lighting, but they also feature integrated power supplies and energy metering, enabling users to deliver actionable operational data such as energy consumption. Equally beneficial are the integrated sensor controllers, which provide daylight harvesting and occupancy patterns to a building management system, without the need for additional external components. Collectively they help bring connectivity and expanded functionality to luminaires.
- ⚡ Built‑in sensor controller for smart lighting
- ⚡ Integrated energy metering for operational data
- ⚡ Programmable output for flexible luminaire setup
Specifications
- Model
- Xitanium Programmable SR
- Application Scenarios
- Indoor
KEY FEATURES
Eliminates separate sensor modules, simplifies luminaire structure and ensures stable compatibility between driver and sensor for indoor lighting projects.
Integrated energy metering function collects real‑time consumption data, providing actionable operational information for building management system analysis.
Supports daylight harvesting & occupancy detection, realizing automatic lighting adjustment without additional external hardware components.
Multiple dimming protocols including SR, D4i, DALI & Touch Dim, covers diverse power range for different indoor luminaire design demands.
Offer isolated and non‑isolated models, flexible programmable output current to match various LED lighting COB and linear light solutions.
APPLICATIONS
Smart connected indoor commercial lighting projects
Office building intelligent management lighting system
Public‑space sensor‑based automatic lighting

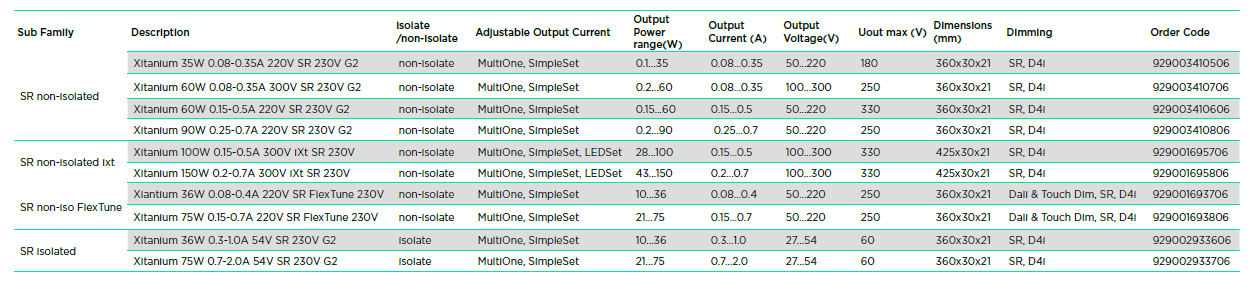

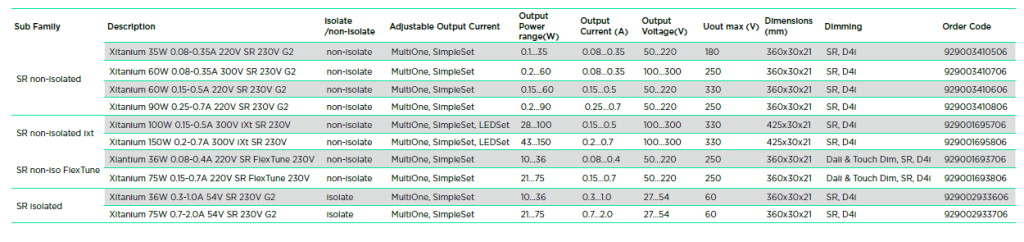

TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium 35W 0.08-0.35A 220V SR 230V G2 929003410506
- Xitanium 60W 0.08-0.35A 300V SR 230V G2 929003410706
- Xitanium 60W 0.15-0.5A 220V SR 230V G2 929003410606
- Xitanium 90W 0.25-0.7A 220V SR 230V G2 929003410806
- Xitanium 100W 0.15-0.5A 300V iXT SR 230V 929001695706
- Xitanium 150W 0.2-0.7A 300V iXT SR 230V 929001695806
- Xiantium 36W 0.08-0.4A 220V SR FlexTune 230V 929001693706
- Xitanium 75W 0.15-0.7A 220V SR FlexTune 230V 929001693806
- Xitanium 36W 0.3-1.0A 54V SR 230V G2 929002933606
- Xitanium 75W 0.7-2.0A 54V SR 230V G2 929002933706
Click to enlarge
FAQ
Q1: What core functions does Xitanium SR driver offer?
A1: It supports energy metering and daylight harvesting.
Q2: What dimming options are available for this series?
A2: SR, D4i, some models support Dali & Touch Dim.
Q3: Does it need extra external sensor components?
A3: No, integrated sensor controller removes extra parts.
RELATED PRODUCTS
PHILIPS Linear CertaDrive isolated CertaDrive 28W 0.7A 40V 230V I G5
CertaDrive 28W 0.7A 40V 230V I G5
⚡|50,000 hours lifetime @Tc-life
View Details →

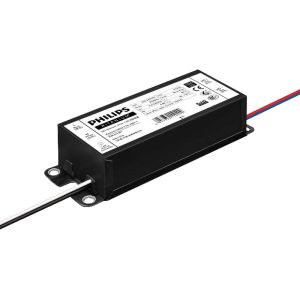

Xitanium LED Drivers - Single Current (SC)
Xitanium Xi SC
⚡|Fixed single‑current output design
View Details →

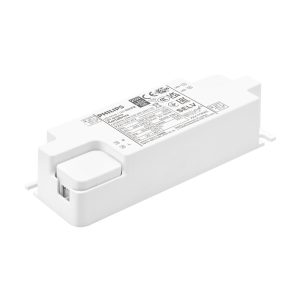

PHILIPS Linear CertaDrive isolated-Philips CertaDrive 42W 1.05A 40V 230V I G5
