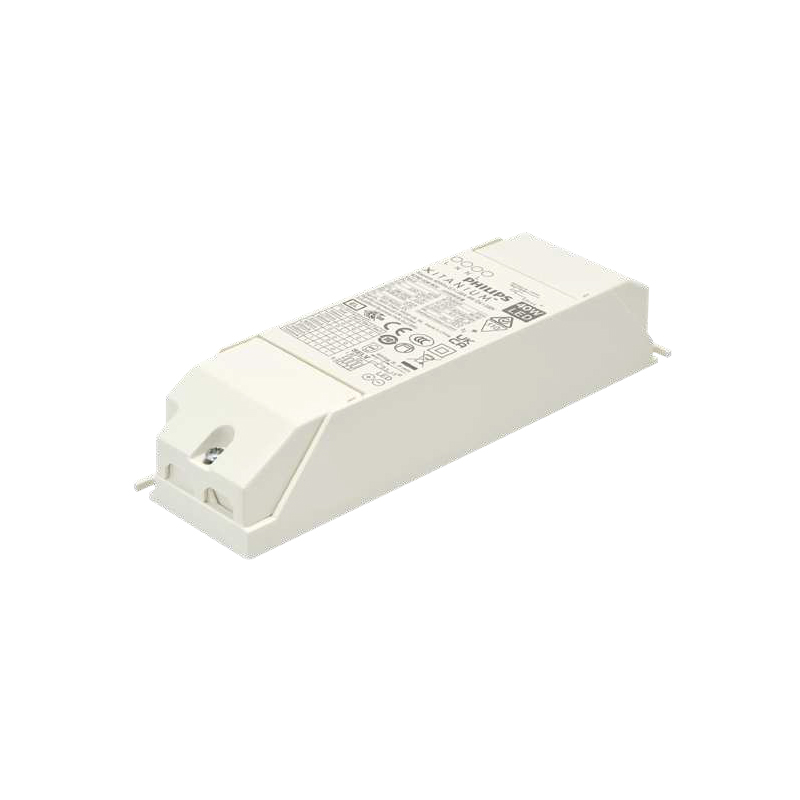

PHILIPS LED Driver Xitanium Mini DS
Xitanium Mini DS
Xitanium Mini driver have the same form of conventional HID-Prima vision driver which is widely used in downlight and spot light.The Dip switch family product can provide upto 8 selection output.
- ⚡ 8‑way dip‑switch current selection
- ⚡ Compact HID‑Prima mini form size
- ⚡ 50000‑hour long service lifespan
Specifications
- Model
- Xitanium Mini DS
- Application Scenarios
- Indoor
KEY FEATURES
HID-Prima vision mini form with small size
8 Selectable output currents by dip switch
Low ripple current
+/-5% output current tolerance
50,000 hours lifetime
Drivers designed based on Philips experience
and knowledge in converntional fluorescent and
HID technologies
Very small size which is easy to be designed in
luminaire
Resolve flickering issue in certain applications
Provide both independent and built-in version for easy usage
APPLICATIONS
Down light
Tack light
Spot light
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Xitanium 20W/m 0.15-0.5A 44V DS S 230V,929002879606
- Xitanium 30W/m 0.35-0.7A 44V DS S 230V,929002879706
- Xitanium 40W/m 0.7-1.05A 44V DS S 230V,929002879806
- Xitanium 20W/m 0.15-0.5A 44V DS I 230V,929002880006
- Xitanium 30W/m 0.35-0.7A 44V DS I 230V,929002880106
- Xitanium 40W/m 0.7-1.05A 44V DS I 230V,929002880206

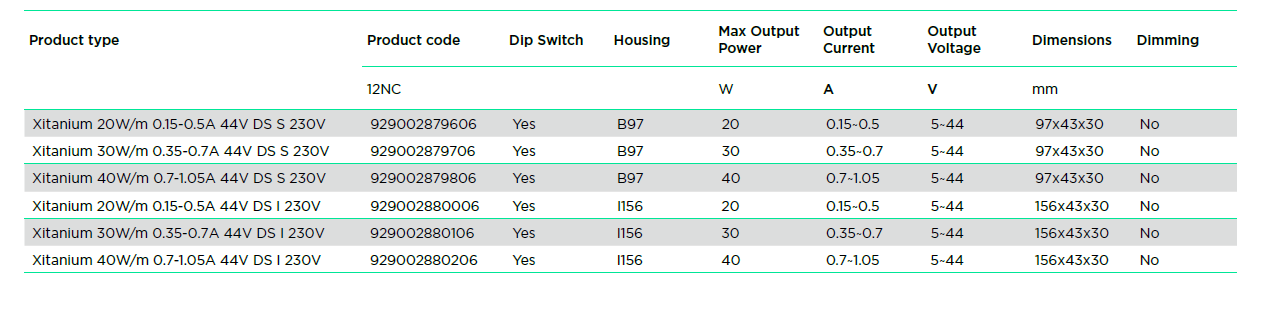

Product specifications
Click to enlarge
FAQ
Q1: How many output currents can be selected?
A1: Up to 8 currents via dip‑switch settings.
Q2: Does this driver support dimming function?
A2: No, this Xitanium Mini DS is non‑dimmable.
Q3: What are its typical application scenarios?
A3: Down light, track light and spot light.
RELATED PRODUCTS
PHILIPS Linear CertaDrive isolated CertaDrive 42W 1.05A 40V 230V I G5
CertaDrive 42W 1.05A 40V 230V I G5
⚡|50,000 hours lifetime @Tc-life
View Details →
PHILIPS Xitanium LITE Programmable LED Drivers Xi LP 40W 0.3-1.05A S1 WL I125 929003876580
Philips Xi LP 40W 0.3-1.05A S1 WL I125
⚡|Superior thermal management
View Details →

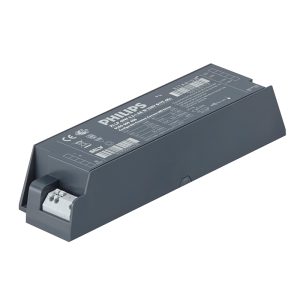

Xitanium LED Drivers - Lite Programmable (LP)
