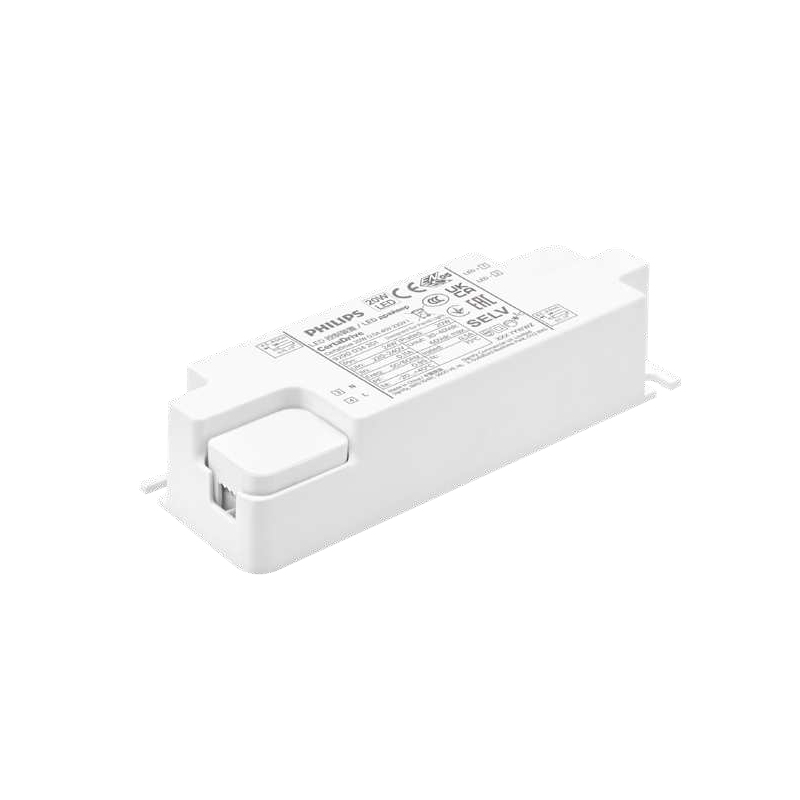

PHILIPS LED Driver CertaDrive
CertaDrive
CertaDrive LED drivers come with single current output and offer industry leading performance and reliability at optimized cost. New CertaDrive linear driver have an Emergency Lighting function, which means that they can operate normally on DC input voltage. CertaDrive LED panel drivers offering an attractive combination of features and benefits for a wide range of Panel applications for Office, Schools & Hospitals environments. CertaDrive LED panel drivers are designed to fulfill the market need for high quality of light without visual flicker and stroboscopic effects, offering industry leading performance.
- ⚡ Zero‑flicker output for comfortable visual experience
- ⚡ Supports emergency DC input lighting function
- ⚡ Adjustable current for multiple luminaire designs
Specifications
- Model
- CertaDrive
- Application Scenarios
- Indoor
KEY FEATURES
Multiple versions: 1-10V dimmable and fixed output
Adjustable output current via a resistor outside the driver or dip-switch
Provides options for different luminaire designs
Confortable for the eyes
Energy saving
Peace of mind with proven reliablity
APPLICATIONS
Panel lighting
Trunking lighting
Waterproof lighting
Recessed, surface and suspended linear lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Non-isolated Certa G3,CertaDrive 21W 0.35A 60V 230V EL 929003450180
- Non-isolated Certa G3,CertaDrive 30W 0.35A 85V 230V EL 929003450280
- Non-isolated Certa G3,CertaDrive 44W 0.35A 125V 230V EL 929003450380
- Non-isolated Certa G3,CertaDrive 65W 0.35A 185V 230V EL 929003450480
- Non-isolated Certa Platic housing,CertaDrive 21W 0.35A 60V 230V P 929003873980
- Non-isolated Certa Platic housing,CertaDrive 40W 0.35A 115V 230V P 929003874080
- Certa Panel G4,CertaDrive 20W 0.5A 40V 230V I 929003420180
- Certa Panel G4,CertaDrive 24W 0.6A 40V 230V I 929003420280
- Certa Panel G4,CertaDrive 28W 0.7A 40V 230V I 929003420380
- Certa Panel G4,CertaDrive 32W 0.8A 40V 230V I 929003420480
- Certa Panel G4,CertaDrive 36W 0.9A 40V 230V I 929003420580
- Certa Panel G4,CertaDrive 42W 1.05A 40V 230V I 929003420680
- Certa Panel G4,CertaDrive 48W 1.2A 40V 230V I 929003420780

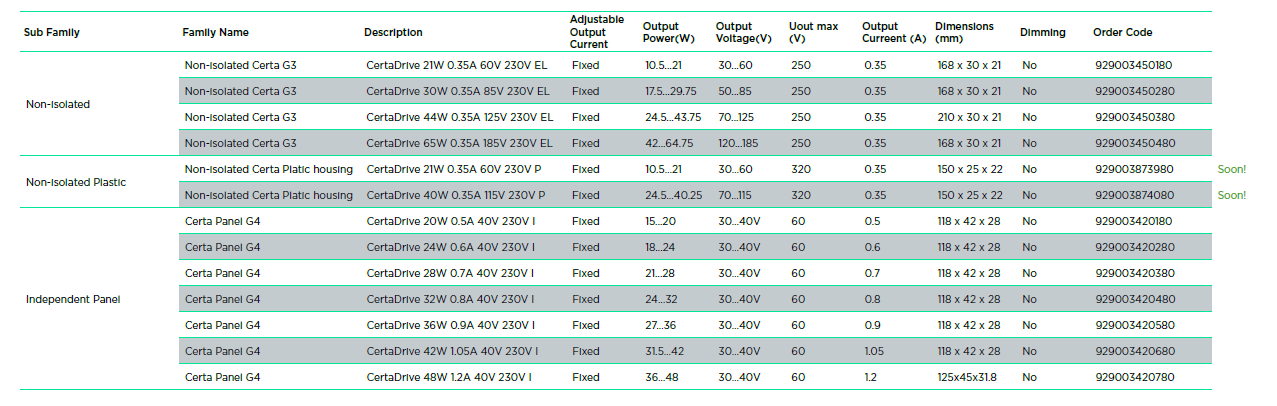

Product specifications
Click to enlarge
FAQ
Q1: What are the main application scenarios of CertaDrive?
A1: Panel, trunking, waterproof and various linear lighting.
Q2: How to adjust its output current?
A2: Adjust via external resistor or dip‑switch option.
Q3: What special function does linear version support?
A3: It supports emergency lighting with DC input operation.
