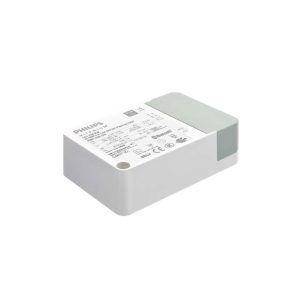

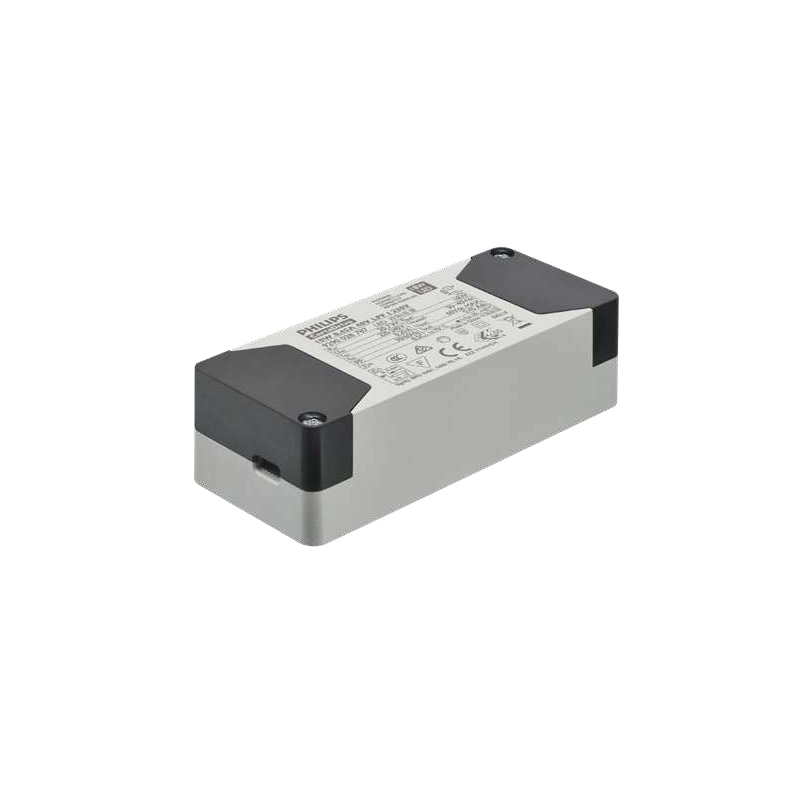

PHILIPS LED Driver CertaDrive G3
CertaDrive G3
Philips CertaDrive LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. CertaDrive drivers have common features such as low ripple output current, single output current and 30,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.
- β‘ Low ripple <4%, stable output current
- β‘ 30000 hours long service lifetime
- β‘ Excellent EMI & high robustness performance
Specifications
- Model
- CertaDrive G3
- Application Scenarios
- Indoor
KEY FEATURES
Class II application
Built in and independent
Low Ripple less than 4%
30,000 hours lifetime
Provides options for different luminaire designs
Great EMI performance for easy design-in
Peace of mind with proven reliability
APPLICATIONS
Down lighting
Spot lighting
Track lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- CertaDrive 8W 0.2A 42V I 230V,929001421780
- CertaDrive 11W 0.25A 42V I 230V,929001421880
- CertaDrive 13W 0.3A 42V I 230V,929001421980
- CertaDrive 15W 0.35A 42V I 230V,929001422080
- CertaDrive 17W 0.4A 42V I 230V,929001422180
- CertaDrive 19W 0.45A 42V I 230V,929001422280
- CertaDrive 21W 0.5A 42V I 230V,929001422380
- CertaDrive 25W 0.6A 42V I 230V,929002819380
- CertaDrive 30W 0.7A 42V I 230V,929002819480
- CertaDrive 34W 0.8A 42V I 230V,929002819580
- CertaDrive 38W 0.9A 42V I 230V,929002819680
- CertaDrive 44W 1.05A 42V I 230V,929002819780

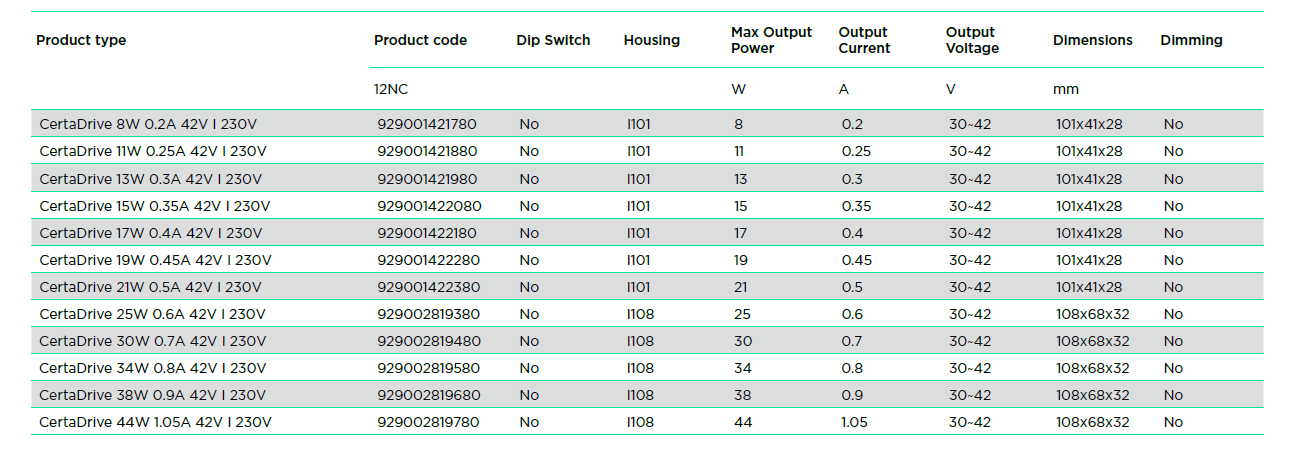

Product specifications
Click to enlarge
FAQ
Q1: What are main applications for CertaDrive G3?
A1: It is used for down, spot and track lighting.
Q2: Does this series support dimming function?
A2: No, these drivers have no dimming capability.
Q3: What is output voltage range of this driver?
A3: The output voltage is 30β42V for all models.
