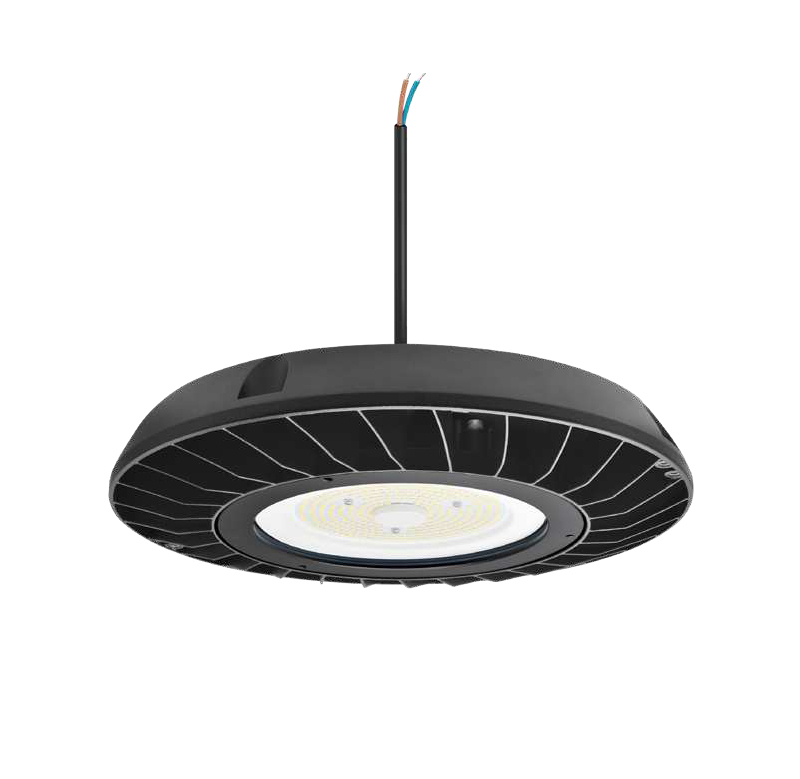

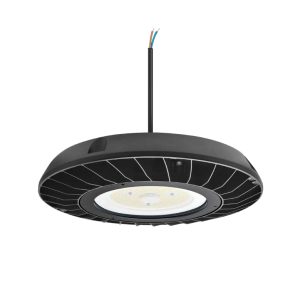

PHILIPS Industrial Modules Fortimo High Bay HE G2 Modules
Industrial Modules
Fortimo High Bay HE G2 LED modules deliver ultra-high 170 lm/W efficacy with IP65 protection and 4kV surge rating. Available in 10K,15K,20K,25K lumen options, 3 CCT choices and multi beam angles (60/90/115Β°). They support matched reflectors and RSHB drivers, ideal for harsh industrial high bay lighting with consistent color performance <5 SDCM.
- β‘ 170 lm/W ultra high efficacy
- β‘ IP65 & 4kV surge protection
- β‘ Multiple beam & CCT selections
Specifications
- Model
- Fortimo High Bay HE G2 Modules
KEY FEATURES
It achieves ultra-high 170 lm/W luminous efficacy, bringing outstanding energy savings for long-hour industrial high bay lighting projects.
Built with IP65 ingress protection and 4kV surge rating, reliably working under humid, dusty and unstable power environments.
Offers four lumen outputs and three CCT options, plus 60/90/115Β° beam angles to fit diversified high-bay lighting requirements.
Features excellent color consistency below 5 SDCM, delivering uniform, stable light quality across all modules in large lighting systems.

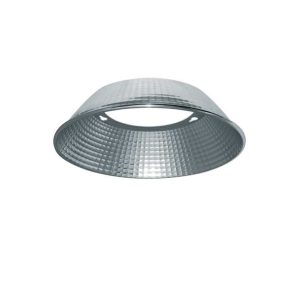

Fully compatible with dedicated high bay reflectors and RSHB drivers, simplifying luminaire assembly and product development.
APPLICATIONS
Large warehouse and factory high bay lighting
Big retail supermarket & exhibition hall lighting
Industrial workshop and logistics center lighting
TECHNICAL SPECIFICATIONS
Product Name 12NC:
- Fortimo High Bay Module HE 10KLM 840 G2 929002856380
- Fortimo High Bay Module HE 15KLM 840 G2 929002856480
- Fortimo High Bay Module HE 20KLM 840 G2 929002856580
- Fortimo High Bay Module HE 25KLM 840 G2 929002856680
- Fortimo High Bay Module HE 10KLM 857 G2 929002856780
- Fortimo High Bay Module HE 15KLM 857 G2 929002856880
- Fortimo High Bay Module HE 20KLM 857 G2 929002856980
- Fortimo High Bay Module HE 25KLM 857 G2 929002857080
- Fortimo High Bay Module HE 10KLM 865 G2 929002857180
- Fortimo High Bay Module HE 15KLM 865 G2 929002857280
- Fortimo High Bay Module HE 20KLM 865 G2 929002857380
- Fortimo High Bay Module HE 25KLM 865 G2 929002857480

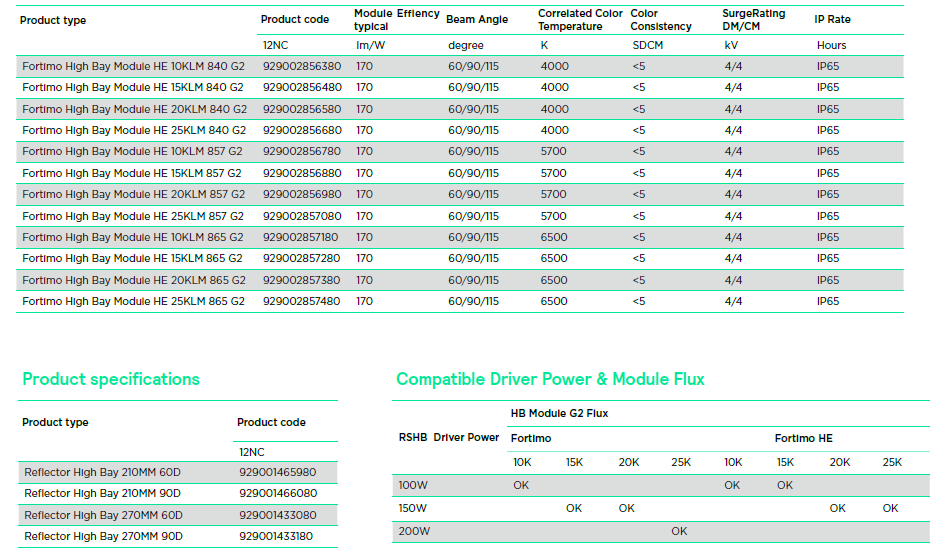

Product specifications
Click to enlarge
FAQ
Q1: What is the luminous efficacy of Fortimo High Bay HE G2?
A1: It features ultra-high module efficiency of 170 lm/W for superior energy saving.
Q2: What protection level does this high bay HE G2 module have?
A2: It has IP65 rating and 4kV surge protection to withstand harsh industrial conditions.
Q3: What beam angles are available for Fortimo High Bay HE G2?
A3: It supports 60Β°, 90Β°, and 115Β° beam angles with optional high bay reflectors.
