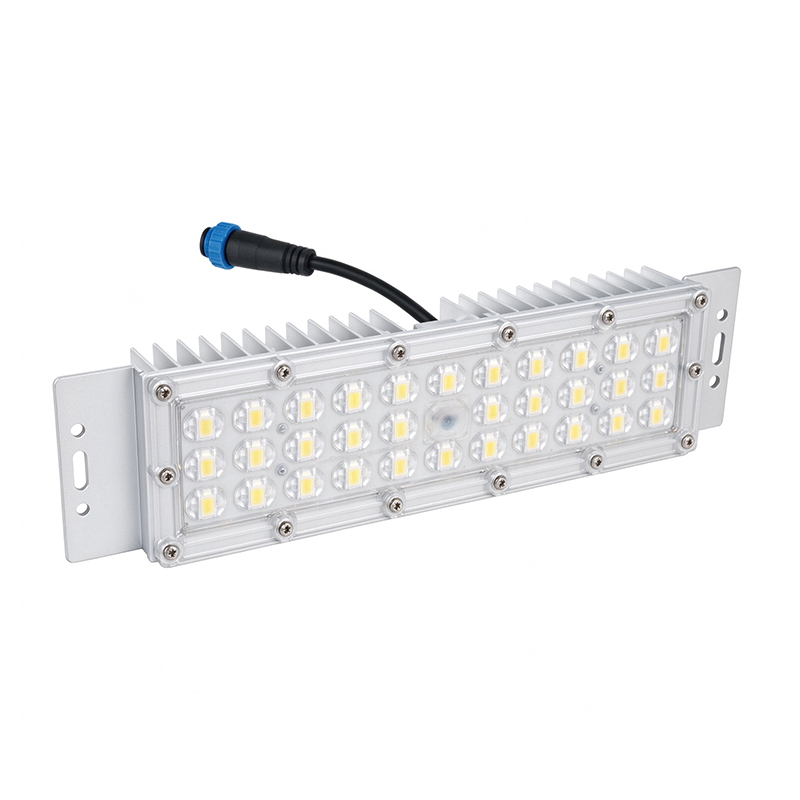

LM-32-48-5050 LiteMeta LED Module for Street Light & Tunnel Light
LM-32-48-5050 LiteMeta
LM-32-48-5050 LiteMeta LED module is a high-performance light source solution for street lights and tunnel lights, designed for modern urban lighting. It adopts multi-chip packaged LEDs with 170lm/W high efficiency, IP65 protection and 50,000-hour lifespan. Featuring advanced free-form optical design, high thermal conductivity aluminum heatsink, constant current input and pluggable standard electrical interface, it delivers flicker-free, reliable & eco-friendly lighting for tunnels and underpasses.
- β‘ Up to 170lm/W high luminous efficacy
- β‘ IP65 protection & 50,000h lifespan
- β‘ Pluggable design for easy maintenance
Specifications
- Model
- LM-32-48-5050 LiteMeta
KEY FEATURES
Multi-chip packaged LED source delivers high efficiency, stable performance, low light decay and no dead lamp risk for long-term outdoor operation.
High-efficiency LED chips paired with high-transmittance PC lens reduce system loss; advanced freeform optics improve uniformity & light utilization.
High thermal conductivity extruded aluminum with hydrodynamic cooling cuts temperature rise, effectively extending the service life of the LED module.
Constant current input with no startup delay, immune to grid fluctuation, flicker-free output to ensure stable and comfortable tunnel lighting environment.
Standard pluggable electrical interface, simple assembly & disassembly; only loosen screws to replace modules, fully RoHS compliant green product.
APPLICATIONS
Interior zone lighting for urban road tunnels
Underground passage and underpass illumination
General flood & wide area lighting projects
TECHNICAL SPECIFICATIONS
| Title | LM-32-48-5050 LiteMeta LED Module for Street Light & Tunnel Light |
|---|---|
| Product Series | LM-64-48-3030 |
| Input Voltage | 48V DC |
| Input Current | 1.05A |
| Rated Power | 50W |
| Color Temperature | 4000K |
| Color Rendering Index | 70 |
| Luminous Efficacy | 170lm/W |
| LED Module Temperature Rise | β€40Β°C @ ta: 30Β°C 50W |
| Light Source Packaging Specifications | EMC5050 Package |
|---|---|
| Module Material | Aluminum + Optical PC |

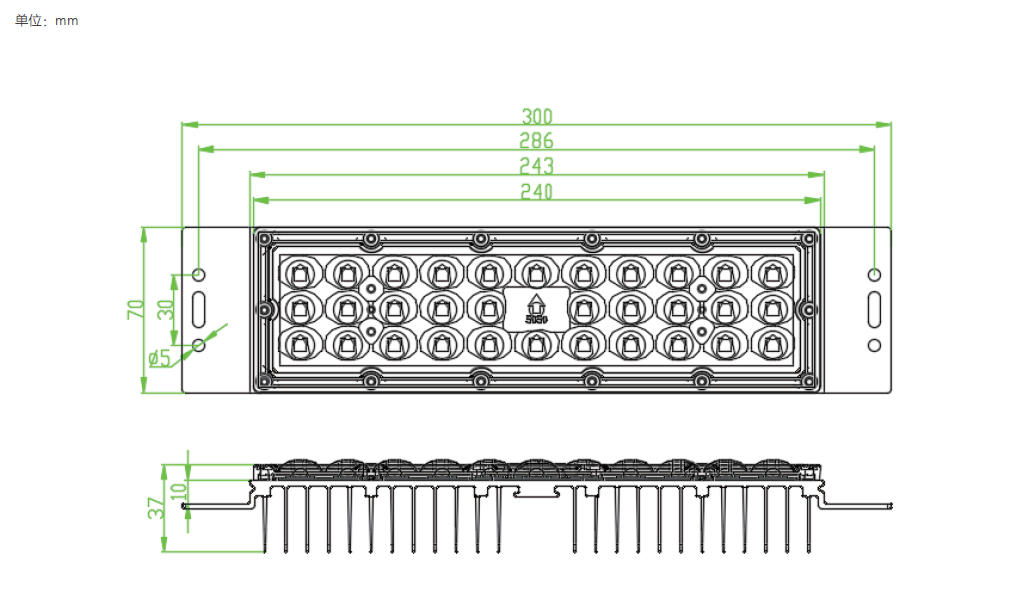

| Module Size | 300mmx70mmx37mm |
| Net Weight of Module | 0.45kg |
| Operating Temperature and Humidity | -40Β°C~50Β°C, 20%~90% humidity |
| Storage Temperature and Humidity | -45Β°C~55Β°C, 10%~90% humidity |
| LED Light Source Lifespan | 50,000 hours |
| Protection Level | IP65 |
Junction Box Module Display
Click to enlarge
FAQ
Q1: What is the luminous efficacy of LiteMeta LED module?
A1: It reaches 170lm/W, with EMC5050 multi-chip LED packaging for high performance.
Q2: What is the protection rating and service life?
A2: IP65 protection grade, rated LED light source lifespan up to 50,000 hours.
Q3: What are the operating temperature limits of this module?
A3: Operating temperature ranges from -40β to 50β, storage from -45β to 55β.
