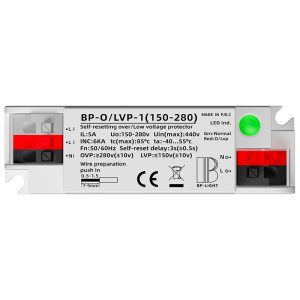

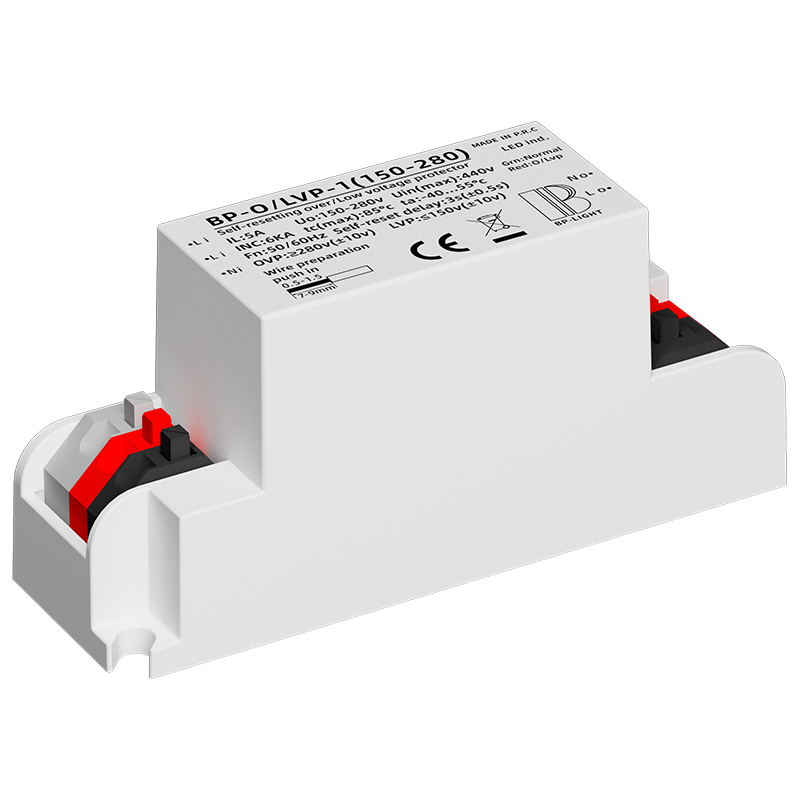

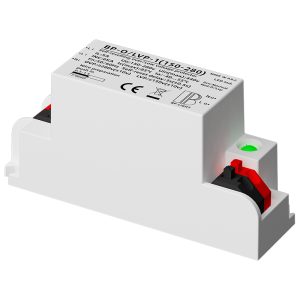

0-440V Wide Input OVP UVP Voltage Protection Device for Commercial Outdoor Street Light
BP-0/LVP-1(150-280V)|OVP UVP Voltage Protector for Outdoor Street Light
BP-O/LVP-1 (150-280) protector, protects LED drivers for garden lights, street lights, pole lights, tu nnel lights, floodlights, venue lights, airport lights, terminal lights, explosion-proof lights, industrial and factory lights, and other applications, providing overvoltage protection and undervoltage protection. Overvoltage protectors can protect LED drivers from high voltage damage, even in extreme situations where the input voltage can reach up to 440Vac. Built in low-voltage protector to protect LED drivers from damage caused by low-voltage overcurrent. The built-in soft start will greatly limit the inrush current of the LED driver during startup and greatly increase the number of MCBs of the LED driver.
- β‘ Suitable for Class I and Il luminare
- β‘ Life:100,000hours
- β‘ Input Voltage Range:0-440V
Specifications
- Model
- BP-0/LVP-1(150-280V)
- Applicable luminaires
- Class Il luminaire, Class l luminaire
- Certifications
- CE
- Connection
- Series
- SPD Category
- O/LVP
- Max input voltage (Un)
- 0-440V
- IP Rating
- IP20
KEY FEATURES
Input Voltage Range: 0-440V
Output Voltage range: 150-280Vac
OVP: disconnected when mains voltage>280Vac
LVP: disconnected when mains voltage<150Vac
Anti-flickering from mains voltage spikes(3s)
Soft start for lower inrush current
Protection: L-N
OVP/LVP indicator indictor
Series installation
Terminal version <1.5Β²
Suitable for Class I and II luminare
APPLICATIONS
Outdoor Road Lighting
Tunnel & Underground Traffic Lighting
Landscape Lighting & Outdoor Signage
Outdoor Lighting for Industrial Plants
Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
| Model | 0-440V Wide Input OVP UVP Voltage Protection Device for Commercial Outdoor Street Light |
|---|---|
| Ta | Min-40Β°C ,Typ 55Β°C |
| TC | Typ 85Β°C |
| Life | 100,000hours, Max75Β°CTc |
| Storage | Min-40Β°C ,Typ 85Β°C |
| Input Voltage | Un 0-440Vac |
| Output Voltage | Un 150-18Vac |
| Frequency | fn 47-63Hz |
| Load Current | 5A |
|---|---|
| Protection Class | Class III |
| Protection mode | CM,DM |
| Earthing Systems | TN |
| O/L voltage indicator | Yes GRN: Normal RED: abnormal |
| IP | IP20 |
| Luminaire | I,II |
DOWNLOADS
FAQ
What protection functions does this BP-OVP/LVP-1 surge protector have, and is it suitable for outdoor street light use?
This device integrates both OVP (Over Voltage Protection) and UVP (Under Voltage Protection). OVP will cut off the circuit automatically when mains voltage exceeds 280Vac, while UVP disconnects power if the input voltage drops below 150Vac. It supports series installation, wide operating temperature from -40β to 85β, perfectly matching outdoor street light, flood light and tunnel light projects. It can withstand extreme input voltage up to 440Vac to safeguard LED drivers outdoors.
Will this OVP & UVP protector cause light flickering for outdoor street lights during voltage fluctuations?
No flicker issue for street light outdoor application. It is equipped with a 3-second anti-flickering design to filter brief mains voltage spikes. Besides, built-in soft start function limits inrush current when LED drivers power on, avoiding instant voltage shocks that trigger light flicker. There is also an OVP/UVP indicator light to tell normal (green) or abnormal (red) voltage status at a glance.
What LED lighting fixtures can this OVP UVP voltage protector work with besides street lights, and what are its core electrical specs?
Apart from outdoor street lights, it fits garden lights, pole lights, explosion-proof lights, industrial factory lights, airport terminal lights and venue lights, compatible with Class I & II luminaires. Key specs: input voltage range 0β440Vac, stable output working window 150β280Vac, max load current 5A, applicable frequency 47β63Hz, IP20 rating, service life up to 100,000 hours at 75β case temperature, adopting L-N line protection mode for LED driver full protection.
